AI边缘计算平台-AIPC-2022
★Multiple displays: 4 DP (from MXM), 1 DP/HDMI
★AI Accelerated: Up to 60W GPU MXM module supported
★Scalability: 3 M.2 expansion slots
★Support M.2 B key 3052 5G cellular module
★Rich I/O connectivity: 4 LAN, 4 USB 3.1, 2 COM
-
系统
处理器
Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W)
Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W)
Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W)
Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0 GHz; TDP 35W)
Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5 GHz; TDP 35W)
Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1 GHz; TDP 35W)
Intel® Pentium® G5400 Processor (Core 2; Max speed 3.7 GHz; TDP 58W)
Intel® Celeron® G4900 Processor (Core 2; Max speed 3.1 GHz; TDP 54W)芯片组
Intel® H310/Q370 Chipset
内存
DDR4 2400/2666MHz up to 64GB
BIOS
AMI SPI 128Mbit (supports UEFI/Legacy mode)
显示
控制器
Intel® UHD Graphics 630 (Pentium® G5400 and Celeron® G4900 support Intel® UHD
Graphics 610)特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9显示器
4 x DP (from MXM)
1 x DP/HDMI (auto-detection)
DP: resolution up to 4096x2304@60Hz
HDMI: resolution up to 4096x2160@30HzAI 加速器
界面
1 x MXM 3.1 slot, Type-A/B up to 60W
储存
内插
1 x M.2 M key supports 2242/2280 slot (PCIe Gen3 x4/SATA)
1 x SATA III connector for 1 x 2.5” SSD扩充
M.2
H310
M.2 M key 2242/2280 slot (PCIe Gen2 x1)
M.2 B key 3052 slot (SATA 3.0)
M.2 E key 2230 slot (USB 2.0, PCIe Gen2 x1)
Q370
M.2 M key 2242/2280 slot (PCIe Gen3 x4, SATA3.0)
M.2 B key 3052 slot (PCIe Gen3 x1, USB 3.2 Gen1)
M.2 E key 2230 slot (USB 2.0, PCIe Gen3 x1)
音讯
音讯编译码器
5.1 CH Audio Codec:Realtek ALC888S-VD2-GR
以太网路
控制器
3 x Intel® I210AT
H310
1 x Intel® I219V
Q370
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED
指示灯
1 x PWD LED
1 x HDD LED前板输入/输出
串口
2 x RS232/RS422/RS485, Select by BIOS
音源
1 x Line-out
1 x Mic-in按键
1 x Power button

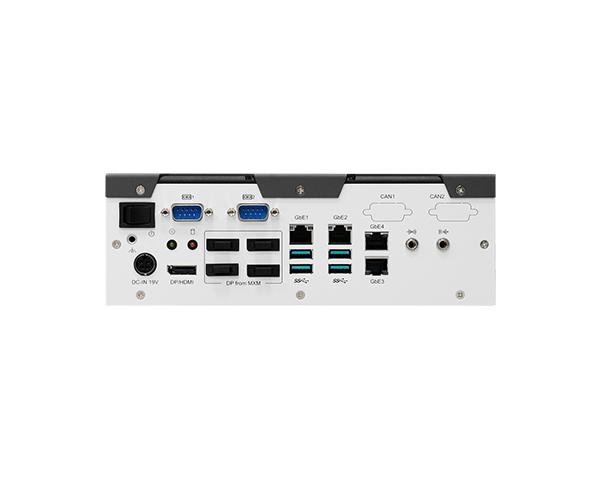

背板输入/输出
以太网络
4 x GbE
USB
4 x USB 3.1 Gen2
显示
4 x DP (from MXM)
1 x DP/HDMI (auto-detection)天线
4 x SMA for 5G module
2 x SMA for WiFi module监视定时器
看门狗定时器
Watchdog timeout programmable via software from 1 to 255 seconds
安全性
信赖平台模块
dTPM2.0 (default)
电源
端口
DC-in Jack
电压
19V DC-in
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Linux
Linux
环境指标
运作温度
0 to 45°C
储存温度
-40 to 85°C
相对湿度
5 to 95% RH (non-condensing)uminum extrusion + Metal
机械结构
结构
Aluminum + SGCC
安装方式
Wall mount (mounting brackets and screws)
尺寸 (宽 x 高 x 深)
250 x 180 x 76mm (not include wall mount bracket)
重量
5 Kg
安规认证
冲击测试
IEC 60068-2-27
15 g, 11 ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)抗振动测试
IEC 60068-2-64 Test Fh: Vibration board-band random test
Frequency: 5 Hz to 500 Hz
Acceleration: 2g rms
Test Axis: X, Y, Z axis
Test Time: 30 mins (Each axis), total 90 mins.认证
CE, FCC Class A, RoHS, UKCA
-
-
