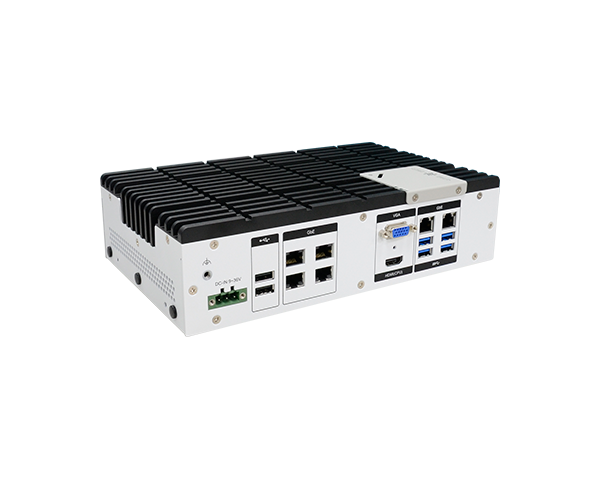

AI边缘计算平台-AIPC-2021
★Reinforce Nvidia ORIN NX computing power by Intel® Core™ Ultra Processor
★AI engine NVIDIA Jetson Orin NX, up to 100 TOPS
★Support Remote management and OTA by DFI OOB module
★4 M.2 B, E, M key expansion slots
★Optional MXM supported with 3 DP and 1 HDMI ports
★4 USB 3.2, 4 RJ45 GbE, micro USB, Serial, CAN bus
-
系统
处理器
Intel® Core™ Ultra 7 165U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 15W)
Intel® Core™ Ultra 7 155U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 15W)
Intel® Core™ Ultra 5 155U (2 P-Cores x 1.6 GHz, 8 E-Cores x 1.1 GHz, 12 MB cache, 15W)
Intel® Core™ Ultra 5 135U (2 P-Cores x 1.3 GHz, 8 E-Cores x 0.8 GHz, 12 MB cache, 15W)内存
Two 260-Pin SO-DIMM up to 64GB
Dual Channel DDR5 5600MHzBIOS
AMI SPI
显示
控制器
Intel® Iris® Xe Graphics
特性
DX12, Open GL 4.6, Vulkan 1.2
HW Decode: HEVC/VP9/AV1/AVC/H.265/MJPEG
HW Encode: HEVC/VP9/AV1/AVC/H.265/MJPEG显示器
Stacked type VGA and HDMI from COMe eDP
HDMI from Jetson module
ITE IT6564FN DP HDMI/VGA converter from eDPAI 加速器
界面
Nvidia Orin NX, up to 100 TOPS
Nvidia Orin Nano, up to 40 TOPS (optional Type A MXM supported)储存
外插
1 x 64GB/128GB/256GB/512GB/1024GB on board SSD (available upon request on MTH968)
Optional 2x 2.5” SATA tray kit, RAID 0/1 supported内插
M.2 2242/2280 M key on Jetson module (PCIe x4)
扩充
界面
1 x M.2 3042/3052 B key (PCIex2) and 1 x micro (or nano) SIM slot
1 x M.2 2230 E key (PCIe x1, USB 2.0)
2 x M.2 2242/2280 M key (SATA 3and PCIe gen3 x1 for NVMe)
1 x M.2 A key for DFI OOB以太网路
控制器
1 RJ45 GbE from COMe
1 RJ45 GbE from Intel i210
2x2 stacked RJ45 GbE ports from 4x Intel i210
Optional 2x 15W PoE via X103-PE30-48LED
指示灯
1 x Power Status

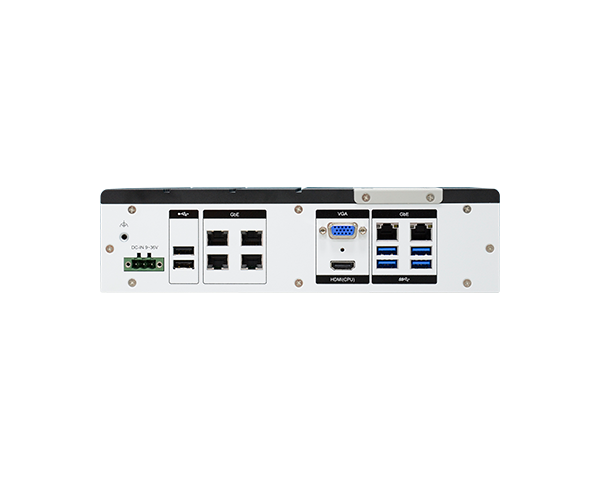

1 x HDD activity前板输入/输出
以太网络
2 x GbE
2x2 stacked RJ45 GbEUSB
2 x USB 3.2 from Type 6 or 2 x USB 2.0 from Type 10
2 x USB 3.2
2 x USB 2.0 from Jetson module显示
1 x VGA
1 x HDMI port with screw holeDC in
1 x 3-pin power terminal block

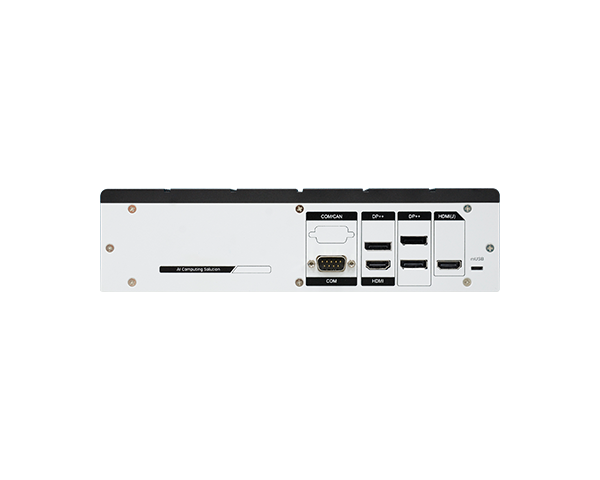

背板输入/输出
串口
1 x DB-9 RS232/422/485 port
1 combo DB-9 RS232/422/485/ CAN bus/ GPIO portUSB
1 x micro USB from Jetson module
显示
3 x DP++ ports

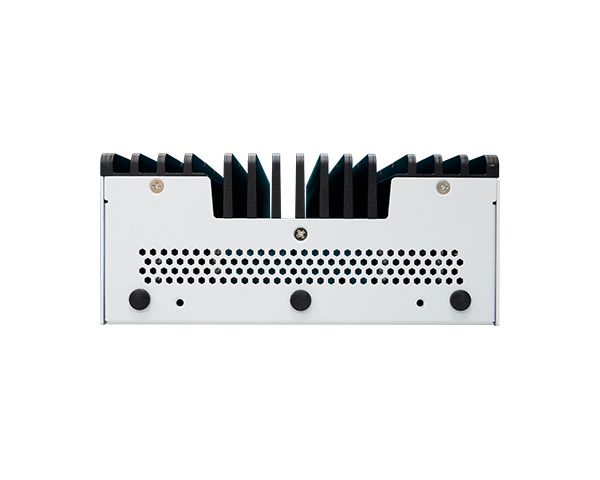

2 x HDMI port侧面输入/输出
天线孔
6 x antenna holes
内部输入/输出
OOB
Support DFI OOB module
安全性
信赖平台模块
TPM 2.0 on COMe
电源
类型
9-36V DC
端口
1x 3-pin terminal block
RTC 电池
Rechargeable battery
支持操作系统
微软
Windows 10, 11
Linux
Ubuntu 22.04
环境指标
运作温度
-20°C to 60°C (sku dependent)
储存温度
-40°C to 85°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
结构
Aluminum + SGCC
安装方式
Wall mount (mounting brackets and screws)
DIN mount by optional尺寸 (宽 x 高 x 深)
250 x 65 x 150 mm
重量
< 3.5 kg
安规认证
冲击测试
· Operation
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
· Non- Operation
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)抗振动测试
· Operation
IEC 60068-2-64 Test Fh: Vibration board-band random test
Random,2Grms @ 5~500 Hz, 30min.
· Non- Operation
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep sine, 3Grms @ 10~500Hz, 30min.认证
CE, FCC Class A, RoHS, UL 62368-1
IP Rating
IP20
-
-
