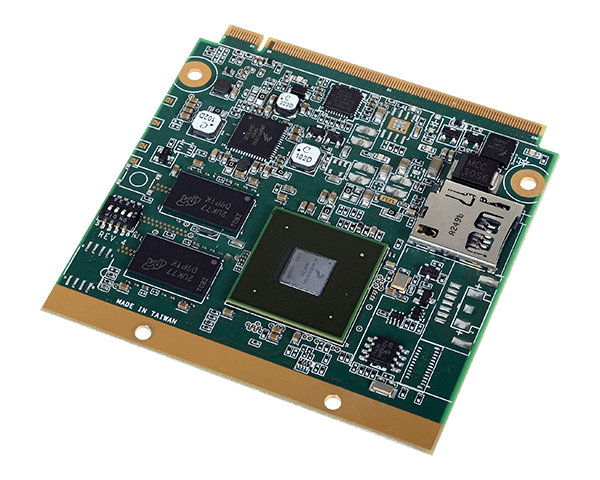

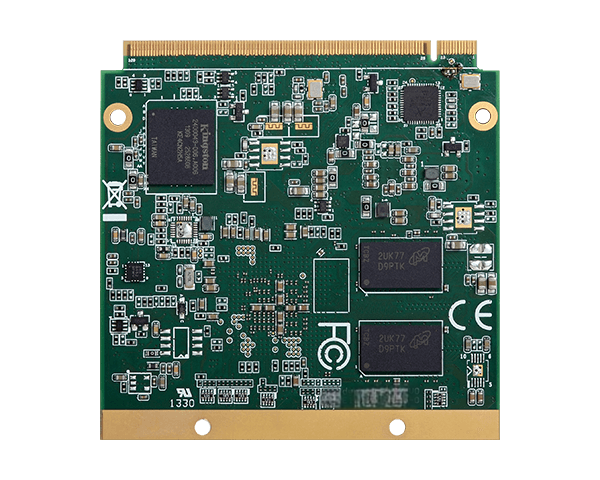

嵌入式电脑模块-SOM-1028

★NXP i.MX 6 系列
★1GB/2GB DDR3 单信道 板载内存
★1 HDMI, 2 LVDS
★多重扩充讯号: 1 PCIe x1, 1 SATA 2.0, eMMC
★丰富 I/O: 1 Intel 网口, 4 USB 2.0, 1 USB OTG
★15年CPU长期支持至Q4' 27 (Based on NXP Roadmap)
ꄴ上一个： COMe及嵌入式电脑模块-COMe-6021
ꄲ下一个： 嵌入式电脑模块-SOM-1027

  • 系统



    处理器

    NXP i.MX 6 series processors
    i.MX6Q: i.MX 6Quad, up to 1.0GHz, Four Cortex-A9 cores
    i.MX6D: i.MX 6Dual, up to 1.0GHz, Two Cortex-A9 cores
    i.MX6L: i.MX 6DualLite, up to 1.0GHz, Two Cortex-A9 cores
    i.MX6S: i.MX 6Solo, up to 1.0GHz, One Cortex-A9 core

    内存

    1GB/2GB Single Channel DDR3 Memory Onboard

    显示

    特性

    OpenCL, OpenVG 1.1 and 1080p/720p decoder/encoder

    显示器

    1 x HDMI
    2 x LVDS
    HDMI: HDMI v1.4, resolution up to 1920x1200 @ 60Hz
    LVDS: 18/24-bit
    - One port up to 165 Mpixels/sec (e.g. 2560x1600 @ 60Hz)
    - Two ports up to 85 Mpixels/sec (e.g. WUXGA+ @ 60Hz) each

    扩充

    界面

    1 x PCIe x1
    2 x I2C
    1 x Serial (RS232)
    1 x SMBus
    1 x CAN-Bus
    1 x SDIO

    音讯

    界面

    I2S interface

    以太网路

    控制器

    1 x Atheros AR8033 (10/100/1000Mbps)

    输入/输出

    USB

    4 x USB 2.0
    Supports 1 USB OTG (Type B) interface

    SATA

    1 x SATA 2.0
    (Quad and Dual processors only)

    eMMC

    1 x 4GB*/8GB/16GB eMMC

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    电源

    类型

    Input: 5V

    耗能

    Under 5W @ 5V

    支持操作系统

    支持操作系统

    LTIB Linux 3.0.35
    Android 4.3 (Default Preloaded)
    - Quad, Dual and DualLite processors only

    环境指标

    温度

    Operating: -20°C to 70°C
    Storage: -30°C to 80°C

    湿度

    Operating: 10 to 90% RH
    Storage: 10 to 90% RH

    MTBF

    588,701 hrs @ 25°C; 480,691 hrs @ 45°C; 381,628 hrs @ 60°C
    Calculation model: Telcordia Issue 2
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    Qseven form factor 70mm (2.76") x 70mm (2.76")

    规范

    Qseven specification revision 1.2
