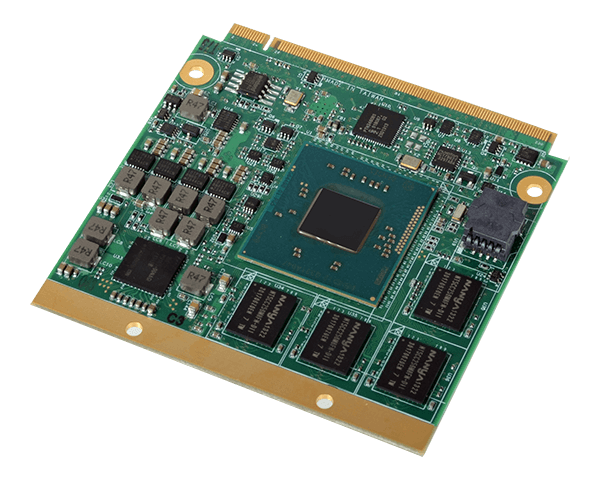

嵌入式电脑模块-SOM-1027

★Intel Atom® E3800 系列
★2GB/4GB DDR3L 单信道 板载内存
★1 DDI(DP/HDMI/DVI), 1 LVDS
★多重扩充讯号: 3 PCIe x1
★丰富 I/O: 1 Intel 网口, 1 USB 3.0, 6 USB 2.0
★15年CPU长期支持至Q4' 28 (Based on Intel IOTG Roadmap)
ꄴ上一个： 嵌入式电脑模块-SOM-1028
ꄲ下一个： 嵌入式电脑模块-SOM-1026

  • 系统



    处理器

    Intel Atom® Processor E3800 Series, BGA 1170
    Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W
    Intel Atom® E3827, Dual Core, 1M Cache, 1.75GHz, 8W
    Intel Atom® E3815, Single Core, 0.5M Cache, 1.46GHz, 5W
    Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
    Intel® Celeron® N2930, Quad Core, 2M Cache, 1.83GHz (2.16GHz), 7.5W

    内存

    2GB/4GB Single Channel DDR3L Onboard 1333MHz

    BIOS

    AMI 64Mbit BIOS

    显示

    控制器

    Intel® HD Graphics

    特性

    OpenGL 3.2, DirectX 11, OpenCL 1.2
    HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC
    HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC

    显示器

    1 x DDI (HDMI/DVI/DP)
    1 x LVDS
    LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
    HDMI/DVI: resolution up to 1920x1080 @ 60Hz
    DP: resolution up to 2560x1600 @ 60Hz

    扩充

    界面

    3 x PCIe x1
    1 x LPC
    1 x I2C
    1 x SMBus
    1 x UART (TX/RX)

    音讯

    界面

    HD Audio

    以太网路

    控制器

    1 x Intel® I210AT (10/100/1000Mbps) (0 to 60°C)
    1 x Intel® I210IT (10/100/1000Mbps) (-40 to 85°C)

    输入/输出

    USB

    1 x USB 3.0
    6 x USB 2.0

    SATA

    2 x SATA 2.0

    eMMC

    1 x 8GB/16GB/32GB eMMC (available upon request)

    DIO

    1 x 8-bit SDIO

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    Available Upon Request

    电源

    类型

    5V, 5VSB, VCC_RTC

    耗能

    BT700-T44-E45: 12.72W with E3845 at 1.91GHz and 4GB DDR3L memory down

    支持操作系统

    支持操作系统

    Windows 7 Ultimate x86 & SP1 (32-bit)
    Windows 7 Ultimate x64 & SP1 (64-bit)
    Windows 8.1 Enterprise x86 (32-bit)
    Windows 8.1 Enterprise x64 (64-bit)
    Windows 10 will be available upon request. Please contact DFI for more information.

    环境指标

    温度

    Operating: 0 to 60°C, -40 to 85°C
    Storage: -40 to 85°C

    湿度

    Operating: 10 to 90% RH
    Storage: 10 to 90% RH

    MTBF

    1,076,859 hrs @ 25°C; 638,931 hrs @ 45°C
    Calculation model: Telcordia Issue 2, Method I Case 3
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    Qseven form factor 70mm (2.76") x 70mm (2.76")

    规范

    Qseven specification revision 2.0

    安规认证

    认证

    CE, FCC Class B, RoHS
