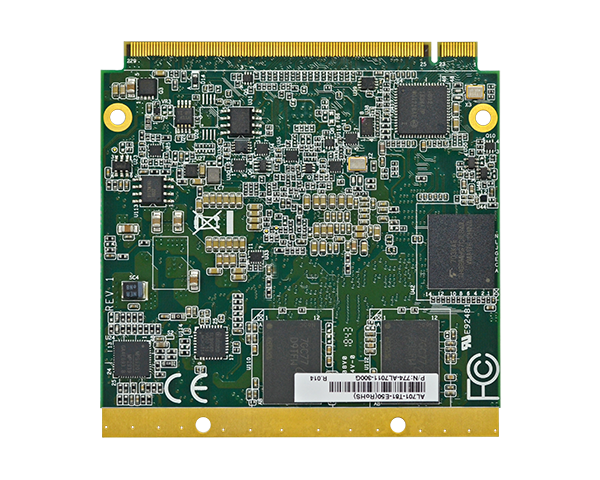

嵌入式电脑模块-SOM-1025

★Intel Atom® Processor E3900 Series, BGA 1296
★15-Year CPU Life Cycle Support Until Q4' 32 (Based on Intel IOTG Roadmap)
★Rich I/O: 1 Intel GbE, 1 USB 3.0, 8 USB 2.0
★Multiple expansions: 4 PCIe x1
★DP++ resolution supports up to 4096x2160 @ 60Hz
★1 DDI*, 1 LVDS*/(eDP + DDI)；Supports triple displays: eDP+2DDI
★4GB/8GB LPDDR4 Dual Channel Memory Down
ꄴ上一个： 嵌入式电脑模块-SOM-1026
ꄲ下一个： 嵌入式电脑模块-SOM-1023

  • 系统



    处理器

    Intel Atom® Processor E3900 Series, BGA 1296
    Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
    Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
    Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
    Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
    Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W

    内存

    4GB/8GB LPDDR4 Memory Down
    Dual Channel LPDDR4 3200MHz

    BIOS

    AMI SPI 128Mbit (supports UEFI boot only)

    显示

    控制器

    Intel® HD Graphics Gen9LP Series

    特性

    OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
    HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC

    显示器

    1 x DDI (HDMI/DVI/DP++)
    1 x LVDS/(eDP+DDI) (DDI available upon request)
    LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz
    HDMI: resolution up to 3840x2160 @ 30 Hz
    DP++: resolution up to 4096x2160@60Hz
    eDP: resolution up to 3840x2160 @ 60Hz

    双重显示/三重显示

    LVDS + DDI (Dual)
    eDP + DDI (Dual)
    eDP+2DDI (Triple) (available upon request)

    扩充

    界面

    4 x PCIe x1 (Gen 2)
    1 x SDIO (with LED)
    1 x LPC
    1 x I2C
    1 x SMBus
    1 x SPI
    1 x UART (TX/RX)

    音讯

    界面

    HD Audio

    以太网路

    控制器

    1 x Intel® I211AT (10/100/1000Mbps) (0~60°C)
    1 x Intel® I210IT (10/100/1000Mbps) (-40 to 85°C)

    输入/输出

    USB

    1 x USB 3.0 + 8 x USB 2.0
    3 x USB 3.0 + 4 x USB 2.0 (option)

    SATA

    2 x SATA 3.0 (up to 6Gb/s)

    eMMC

    Supports up to 32GB eMMC
    eMMC 5.0, BGA-153 Ball 8~32G(MLC mode)

    GPIO

    1 x 4-bit GPIO

    CANBus

    CAN Bus Function (available upon request)

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    固件信赖平台模块

    Enables or Disables the BIOS support for the security device

    电源

    类型

    5V, 5VSB, VCC_RTC

    耗能

    Typical: E3940: 12V @ 0.92A (11.04W)
    Max.: E3940:12V @ 1.82A (21.84W)

    支持操作系统

    支持操作系统 (UEFI Only)

    Windows 10 IoT Enterprise 64-bit
    Linux (Intel graphic driver available)

    环境指标

    温度

    Operating: 0 to 60°C, -40 to 85°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    2,261,043 hrs @ 25°C; 1,441,014 hrs @ 45°C; 975,882 hrs @ 60°C
    740,273 hrs @ 70°C; 481,855 hrs @ 85°C
    Calculation model: Telcordia Issue 4
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    Qseven form factor
    70mm (2.76") x 70mm (2.76")

    规范

    Qseven specification revision 2.1

    安规认证

    认证

    CE, FCC Class B, RoHS, UKCA
