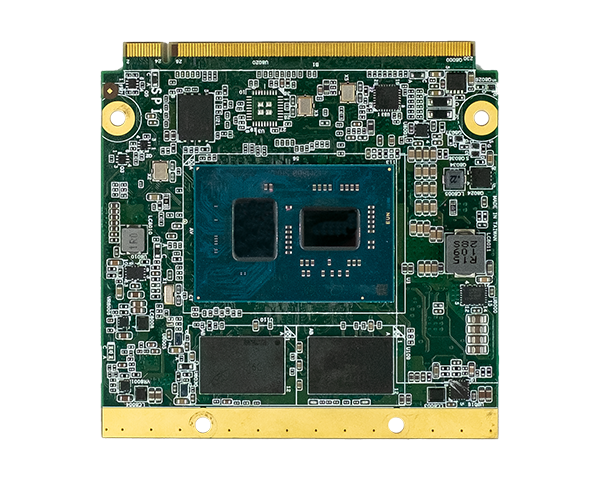

嵌入式电脑模块-SOM-1023

★Intel Atom® x6000 Series Processors
★4GB/8GB LPDDR4 Single Channel Memory Down
★1 DDI*, 1 eDP
★DP++ resolution supports up to 4096x2160 @ 60Hz
★Multiple expansions: 4 PCIe x1
★Rich I/O: 1 Intel GbE, 2 USB 3.1, 8 USB 2.0
★15-Year CPU Life Cycle Support Until Q1' 36 (Based on Intel IOTG Roadmap)
ꄴ上一个： 嵌入式电脑模块-SOM-1025
ꄲ下一个： 嵌入式电脑模块-SOM-1022

  • 系统



    处理器

    Intel® Celeron® Processor J6413 as default
    Intel Atom® x6000 Series Processors
    Intel Pentium® N and J Series Processors
    Intel Celeron® N and J Series Processors

    内存

    4GB(default)/8GB LPDDR4 Memory Down Dual Channel LPDDR4 3200MHz

    BIOS

    AMI SPI 256Mbit (supports UEFI boot only)

    显示

    控制器

    Intel® HD Graphics Gen9LP Series

    特性

    OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
    HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC

    显示器

    1 x DDI (HDMI/DVI/DP++)
    1 x eDP
    HDMI: resolution up to 3840x2160 @ 30 Hz
    DP++: resolution up to 4096x2160@60Hz
    eDP: resolution up to 3840x2160 @ 60Hz

    双重显示

    eDP + DDI (Dual)

    扩充

    界面

    4 x PCIe x1 (Gen 3)
    1 x SDIO
    1 x LPC
    1 x I2C
    1 x SMBus
    1 x SPI
    1 x UART (TX/RX)

    音讯

    界面

    HD Audio

    以太网路

    控制器

    1 x Intel I211 / I210

    输入/输出

    USB

    1 x USB 3.1 + 8 x USB 2.0 / 2 x USB 3.1 + 6 x USB 2.0

    SATA

    2 x SATA 3.0 (up to 6Gb/s)

    eMMC

    Supports up to 128GB eMMC, NC as default
    eMMC 5.1, BGA-153 Ball 8~128G(MLC mode)

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    固件信赖平台模块

    Enables or Disables the BIOS support for the security device

    电源

    类型

    5V, 5VSB, VCC_RTC

    耗能

    Typical: x6212RE: 12V @ 0.98A (11.76W)
    Max.: x6212RE:12V @ 1.45A (17.4W)

    支持操作系统

    支持操作系统

    Windows 10 IoT Enterprise 64-bit / Linux (Intel graphic driver available)

    环境指标

    温度

    Operating: 0 to 60°C, -40 to 85°C, -5 to 65°C(opt.)
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH,
    Storage: 5 to 90% RH

    MTBF

    773,944 hrs @ 25°C; 335,063 hrs @ 45°C;
    138,841 hrs @ 60°C; 29,888 hrs @ 85°C

    机械结构

    尺寸

    Qseven form factor 70mm (2.76") x 70mm (2.76")

    规范

    Qseven specification revision 2.1

    安规认证

    认证

    CE, FCC Class B, RoHS
