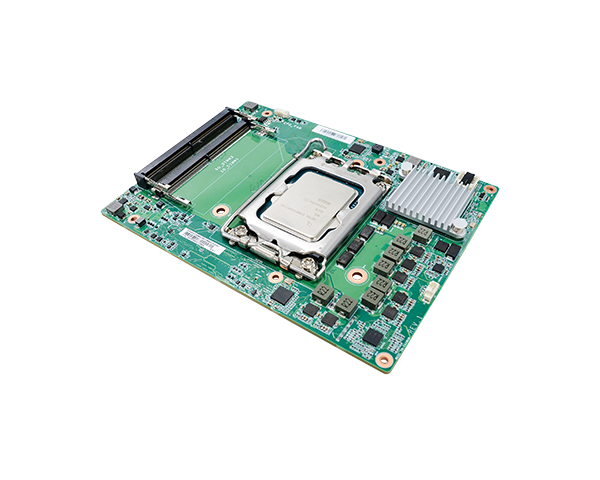

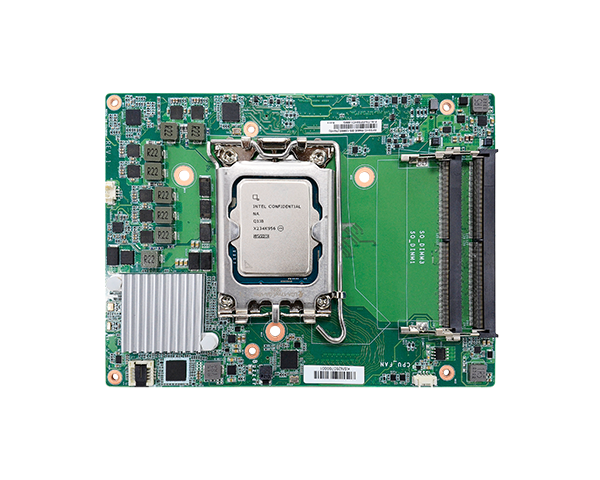

COMe及嵌入式电脑模块-COMe-1046
★4 DDR5 SODIMM 3600MHz up to 192GB
★Quad Displays: eDP + 3 DDI
★DDI supports up to 8K
★Multiple Expansion: 1 PCIe x16 (Gen5), 4 PCIe x4 (Gen4), 2 PCIe x4 (Gen3), 2 PCIe x1 (Gen3)
★Rich I/O: 2 Intel 2.5GbE, 6 USB 3.2 Gen2, 8 USB 2.0
★Typically supports 10-Year CPU Life Cycle Until Q1’ 38 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.
-
系统
处理器
14th Gen Intel® Core™ Processors, LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5.0 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
13th Gen Intel® Core™ Processors, LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 3.3 GHz); 60W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W芯片组
Intel® R680E/Q670E/H610E Chipset
内存
4pcs DDR5 SO-DIMM up to 192GB
Dual Channel DDR5
ECC support by R680 with i7 and i5BIOS
AMI SPI 256Mbit
显示
控制器
Intel® HD Gen 9 Graphics
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9显示器
3 x DDI (HDMI/DP++) support to 8K
1 x eDP support to 5K四重显示
eDP + 3 DDI
扩充
界面
1 x PCIe x16 (Gen5)
4 x PCIe x4 (Gen4)
2 x PCIe x4 (Gen3)
2 x PCIe x1 (Gen3)
1 x eSPI
1 x I2C
1 x SMBus
2 x UART (TX/RX/RTS/CTS)音讯
音讯编译码器
HD Audio
以太网路
PHY
2 x Intel® I226 series (10/100/1000Mbps/2.5G)
输入/输出
USB
4 x USB 3.2 Gen2
8 x USB 2.0SATA
2 x SATA 3.0 (up to 6Gb/s)
GPIO
12 bit in/out
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
TPM2.0 (Available Upon Request)
电源
类型
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)耗能
TBD
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Windows 11Linux
Ubuntu 20.04
环境指标
温度
Operating: 0 to 60°C
Storage: -40 to 85°C湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RHMTBF
TBD
机械结构
尺寸
COM HPC® Client Size C
6.30" x 4.72" (160mm x 120mm)规范
PICMG COM HPC® R1.15, Client Size C
安规认证
认证
CE, FCC, RoHS
-
-
