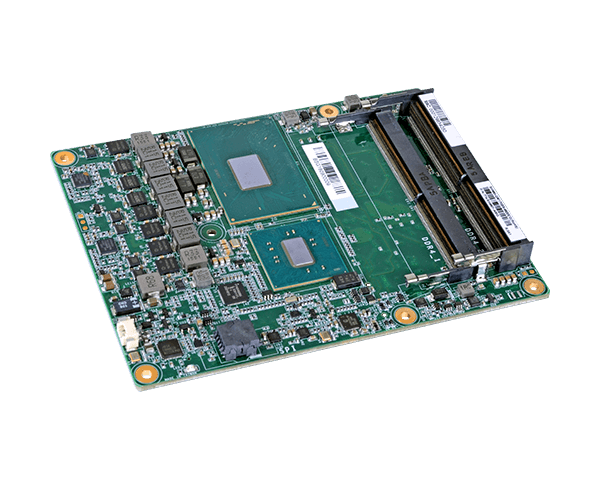

COMe及嵌入式电脑模块-COMe-1045

★第六代 Intel® Core™, Intel® CM236/QM170 芯片组
★双通道 DDR4 2133MHz SODIMM 至32GB
★四个显示输出: VGA*/DDI + LVDS*/eDP + 2 DDI 支持 三重独立显示
★多重扩充讯号: 1 PCIe x16, 8 PCIe x1
★丰富 I/O: 1 Intel 网口, 4 USB 3.0, 8 USB 2.0
★15年CPU长期支持至Q1' 31 (Based on Intel IOTG Roadmap)
ꄴ上一个： COMe及嵌入式电脑模块-COMe-1046
ꄲ下一个： COMe及嵌入式电脑模块-COMe-1043

  • 系统



    处理器

    6th Generation Intel® Core™ Processors, BGA 1440
    Intel® Xeon® E3-1515M v5 Processor, Quad Core, 8M Cache, 2.8GHz (3.7GHz), 45W (Support ECC)
    Intel® Core™ i7-6820EQ Processor, Quad Core, 8M Cache, 2.8GHz (3.5GHz), 45W
    Intel® Core™ i7-6822EQ Processor, Quad Core, 8M Cache, 2.0GHz (2.8GHz), 25W
    Intel® Core™ i5-6440EQ Processor, Quad Core, 6M Cache, 2.7GHz (3.4GHz), 45W
    Intel® Core™ i5-6442EQ Processor, Quad Core, 6M Cache, 1.9GHz (2.7GHz), 25W
    Intel® Core™ i3-6100E Processor, Dual Core, 3M Cache, 2.7GHz, 35W (Support ECC)
    Intel® Core™ i3-6102E Processor, Dual Core, 3M Cache, 1.9GHz, 25W (Support ECC)
    Intel® Celeron® Processor G3900E, Dual Core, 2M Cache, 2.4GHz, 35W (Support ECC)
    Intel® Celeron® Processor G3902E, Dual Core, 2M Cache, 1.6GHz, 25W (Support ECC)

    芯片组

    Intel® CM236 Chipset (Support ECC)
    Intel® QM170 Chipset

    内存

    Two 260-pin SODIMM up to 32GB Dual Channel DDR4 2133MHz

    BIOS

    Insyde SPI 128Mbit

    显示

    控制器

    Intel® HD Graphics

    特性

    OpenGL up to 4.4, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

    显示器

    1 x VGA/DDI (DDI available upon request)
    1 x LVDS/eDP (eDP available upon request)
    2 x DDI (HDMI/DVI/DP++)
    VGA: resolution up to 1920x1200 @ 60Hz
    LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
    HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz
    DVI: resolution up to 1920x1200 @ 60Hz
    DP++/eDP: resolution up to 4096x2304 @ 60Hz

    三重显示

    VGA + LVDS + DDI or VGA + DDI1 + DDI2
    eDP + 2 DDI (available upon request)

    扩充

    界面

    1 x PCIe x16 or 2 x PCIe x8 (Gen 3)
    8 x PCIe x1 or 2 x PCIe x4 or 4 x PCIe x2 (Gen 3)
    1 x LPC
    1 x I2C
    1 x SMBus
    2 x UART (TX/RX)

    音讯

    界面

    HD Audio

    以太网路

    控制器

    1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps)

    输入/输出

    USB

    4 x USB 3.0
    8 x USB 2.0

    SATA

    4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10

    DIO

    1 x 8-bit DIO

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    电源

    类型

    12V, 5VSB, VCC_RTC (ATX mode)
    12V, VCC_RTC (AT mode)

    耗能

    Typical: i7-6820EQ: 12V @ 2.39A (28.62Watt)
    Max.: i7-6820EQ:12V @ 5.84A (70.10Watt)

    支持操作系统

    支持操作系统

    Windows 8.1 64-bit
    Windows 7 (/WES7) 32/64-bit
    Windows 10 IoT Enterprise 64-bit
    Debian 8 (with VESA graphic driver)
    CentOS 7 (with VESA graphic driver)
    Linux

    环境指标

    温度

    Operating: 0 to 60°C, -40 to 85°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    663,394hrs @ 25°C; 334,612 hrs @ 45°C; 193,307 hrs @ 60°C excluding accessories
    Calculation Model: Telcordia Issue 2, Method Case 3
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    COM Express® Basic 95mm (3.74") x 125mm (4.9")

    规范

    PICMG COM Express® R2.1, Type 6

    安规认证

    认证

    CE, FCC, RoHS
