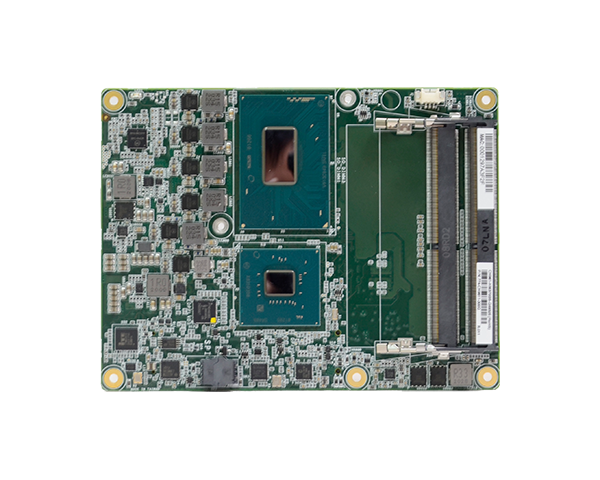

COMe及嵌入式电脑模块-COMe-1035

★8th/9th Generation Intel® Core™ Processors, BGA 1440
★Dual channel DDR4 2666MHz SODIMM up to 96GB
★Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI Supports three independent displays
★DP++ resolution supports up to 4096x2304 @ 60Hz
★Multiple expansion: 1 PCIe x16, 8 PCIe x1
★Rich I/O: 1 Intel GbE, 4 USB 3.1, 8 USB 2.0
ꄴ上一个： COMe及嵌入式电脑模块-COMe-1036
ꄲ下一个： COMe及嵌入式电脑模块-COMe-1034

  • 系统



    处理器

    8th/9th Generation Intel® Core™ Processors, BGA 1440
    Intel® Core™ i7-8850H, 6 Cores, 12M Cache, 2.6GHz (4.3GHz), 45W (CM246/QM370)
    Intel® Core™ i5-8400H, 4 Cores, 8M Cache, 2.5GHz (4.2GHz), 45W (CM246/QM370/HM370)
    Intel® Core™ i3-8100H, 4 Cores, 6M Cache, 3.0GHz, 45W (QM370/HM370)
    Intel® Core™ i3-9100HL, 4 Cores, 6M Cache, 1.6GHz (2.9GHz), 25W (HM370)
    Intel® Core™ i7-9850HL, 6 Cores, 9M Cache, 1.9GHz (4.1GHz), 25W (QM370)
    Intel® Core™ i7-9850HE, 6 Cores, 9M Cache, 2.7GHz (4.4GHz), 45W (QM370)
    Intel® Xeon® E-2176M, 6 Cores, 12M Cache, 2.7GHz (4.4GHz), 45W (CM246/QM370)
    Intel® Xeon® E-2276ML, 6 Cores, 12M Cache, 2.0GHz (4.2GHz), 25W (CM246)
    Intel® Xeon® E-2276ME, 6 Cores, 12M Cache, 2.8GHz (4.5GHz), 45W (CM246)
    Intel® Xeon® E-2254ML, 4 Cores, 8M Cache, 1.7GHz (3.5GHz), 25W (CM246)
    Intel® Xeon® E-2254ME, 4 Cores, 8M Cache, 2.6GHz (3.8GHz), 45W (CM246)
    Intel® Celeron® G4930E, 2 Cores, 2M Cache, 2.4GHz (2.4GHz), 35W (CM246)
    Intel® Celeron® G5600E, 2 Cores, 4M Cache, 3.9GHz, 35W (HM370)
    Intel® Celeron® G4932E, 2 Cores, 2M Cache, 1.9GHz (1.9GHz), 25W (HM370)

    芯片组

    Intel® CM246 Chipset (Support ECC)
    Intel® QM370/HM370 Chipset

    内存

    Four 260-pin SODIMM up to 96GB
    Dual Channel DDR4 2666MHz

    BIOS

    AMI SPI 128Mbit

    显示

    控制器

    Intel® HD Graphics

    特性

    OpenGL up to 4.5, DirectX 11, OpenCL 2.1
    HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
    HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8

    显示器

    1 x VGA/DDI (DDI available upon request)
    1 x LVDS/eDP (eDP available upon request)
    2 x DDI (HDMI/DVI/DP++)
    VGA: resolution up to 2560x1600 @ 60Hz
    LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
    HDMI: resolution up to 2560x1600@60Hz/4096x2160@24Hz
    DVI: resolution up to 1920x1200 @ 60Hz
    DP++: resolution up to 4096x2304 @ 60Hz

    三重显示

    VGA + LVDS + DDI or VGA + DDI 1 + DDI 2 eDP + 2 DDI (available upon request)

    储存

    SSD

    PCIe x4, 64GB~1TB
    Share NvME SSD PCIE 0/1 Port with SATA 2/3 Port
    SSD is alternative function with SATA 2/3 Port
    SSD and 2nd DDR4 SO-DIMM(DIMM2) is alternative function.
    Micron 2100AI for normal temp.
    Micron 2100AT for wide temp.

    扩充

    界面

    1 x PCIe x16
    8 x PCIe x1
    1 x LPC
    1 x I2C
    1 x SMBus
    2 x UART (TX/RX)

    音讯

    界面

    HD Audio

    以太网路

    控制器

    1 x Intel® I219LM/V with iAMT12.0 PCIe (10/100/1000Mbps) (Only CM346/QM370 support iAMT)

    输入/输出

    USB

    4 x USB 3.1
    8 x USB 2.0

    SATA

    4 x SATA 3.0 (up to 6Gb/s)
    RAID 0/1/5/10

    DIO

    1 x 8-bit DIO (Default 4 inputs and 4 outputs)

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    TPM2.0 by request.

    电源

    类型

    8.5V~20V, 5VSB, VCC_RTC (ATX mode)
    8.5V~20V, VCC_RTC (AT mode)

    耗能

    Typical: 12V @ 0.88A (10.56Watt)
    Max.: 12V @ 3.15A (37.8Watt)

    支持操作系统

    支持操作系统

    Windows: Windows 10 IoT Enterprise 64-bit
    Linux

    环境指标

    温度

    Operating: 0 to 60°C, -40 to 85°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    257,700 hrs @ 25°C; 173,475 hrs @ 45°C; 83892 hrs @ 60°C excluding accessories
    Calculation Model: Telcordia Issue 4
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    COM Express® Basic
    95mm (3.74") x 125mm (4.9")

    规范

    PICMG COM Express® R3.0, Type 6

    安规认证

    认证

    CE, FCC, UKCA, RoHS
