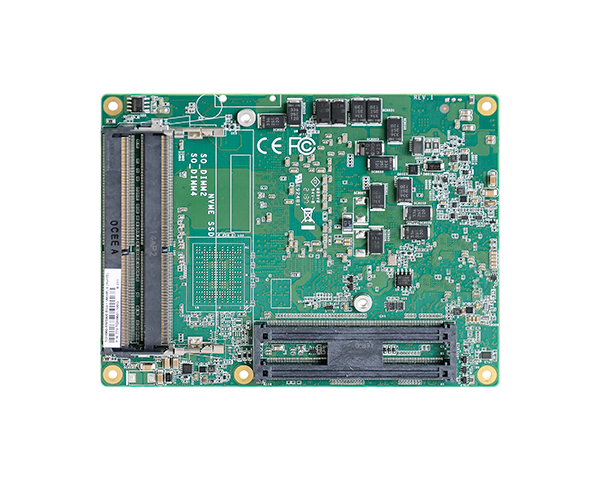

COMe及嵌入式电脑模块-COMe-1033

★11th Generation Intel® Processor COM Express® Basic
★DDR4 3200MHz SO-DIMM up to 96GB, up to 128GB by request.
★VGA + LVDS*/eDP + 3 DDI
★DP++ supports 4K resolution
★Multiple expansion: 1 PCIe x16, 8 PCIe x1, 1 LPC, 1 I2C, 1 SMBus
★Rich I/O: 1 Intel 2.5GbE, 4 USB 3.2 Gen2, 8 USB 2.0
★15-Year CPU Life Cycle Support Until Q2' 36 (Based on Intel IOTG Roadmap)
ꄴ上一个： COMe及嵌入式电脑模块-COMe-1034
ꄲ下一个： COMe及嵌入式电脑模块-COMe-1032

  • 系统



    处理器

    11th Gen Intel® Core™ Processors, BGA 1787
    Intel® Xeon® W-11865MRE, 8 Cores, 24M Cache, 2.6GHz (4.7GHz), 45W (RM590E)
    Intel® Xeon® W-11865MLE, 8 Cores, 24M Cache, 1.5GHz (4.5GHz), 25W (RM590E)
    Intel® Core™ i7-11850HE, 8 Cores, 24M Cache, 2.6GHz (4.7GHz), 45W (RM590E/QM580E)
    Intel® Xeon® W-11555MRE, 6 Cores, 12M Cache, 2.6GHz (4.5GHz), 45W (RM590E)
    Intel® Xeon® W-11555MLE, 6 Cores, 12M Cache, 1.9GHz (4.4Hz), 25W (RM590E)
    Intel® Core™ i5-11500HE, 6 Cores, 12M Cache, 2.6GHz (4.5GHz), 45W (RM590E/QM580E)
    Intel® Xeon® W-11155MRE, 4 Cores, 8M Cache, 2.4GHz (4.4GHz), 45W (RM590E)
    Intel® Xeon® W-11155MLE, 4 Cores, 8M Cache, 1.8GHz (3.1GHz), 25W (RM590E)
    Intel® Core™ i3-11100HE, 4 Cores, 8M Cache, 2.4GHz (4.4GHz), 45W (RM590E/QM580E/HM570E)
    Intel® Celeron® 6600HE, 2 Cores, 8M Cache, 2.6GHz, 35W (RM590E/QM580E/HM570E)

    芯片组

    Intel® RM590E/QM580E/HM570E Chipset

    内存

    3pcs DDR4 3200MHz SO-DIMM up to 96GB, 4th DIMM by request.
    Dual Channel DDR4 3200MHz
    ECC support by request

    BIOS

    AMI SPI 256Mbit

    显示

    控制器

    Intel® Iris® Xe Graphics

    特性

    OpenGL 4.5, DirectX 12, OpenCL 2.1
    HW Decode: MPEG2, WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1
    HW Encode: AVC/H264, JPEG, HEVC/H265, VP9

    显示器

    1 x VGA
    1 x LVDS/eDP (eDP available upon request)
    3 x DDI (HDMI/DP++)

    多重显示

    VGA + LVDS + 2 DDI or
    VGA + 3 DDI or
    LVDS + 3 DDI

    储存

    SSD

    (Option)
    NVMe SSD:
    PCIe x4 Gen4, 64GB~1TB
    SSD and 2nd DDR4 SO-DIMM(DIMM2) is alternative function.

    扩充

    界面

    1 x PCIe x16 (Gen 4)
    8 x PCIe x1 (Gen 3)
    1 x LPC
    1 x I2C
    1 x SMBus
    2 x UART (TX/RX)

    音讯

    音讯编译码器

    HD Audio

    以太网路

    PHY

    1 x Intel® I225 series (10/100/1000Mbps/2.5G)

    输入/输出

    USB

    4 x USB 3.2 Gen2
    8 x USB 2.0

    SATA

    4 x SATA 3.0 (up to 6Gb/s)
    support RAID 0/1/5/10

    DIO

    1 x 8-bit DIO (Default 4 inputs and 4 outputs)

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    TPM2.0 (Available Upon Request)

    电源

    类型

    8.5V~20V, 5VSB, VCC_RTC (ATX mode)
    8.5V~20V, VCC_RTC (AT mode)

    耗能

    TBD

    支持操作系统

    微软

    Windows 10 IoT Enterprise 64-bit

    Linux

    Ubuntu 20.04

    环境指标

    温度

    Operating: 0 to 60°C, -40 to 85°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    TBD

    机械结构

    尺寸

    COM Express® Basic
    95mm (3.74") x 125mm (4.9")

    规范

    PICMG COM Express® R3.0, Type 6

    安规认证

    认证

    CE, FCC, UKCA, RoHS
