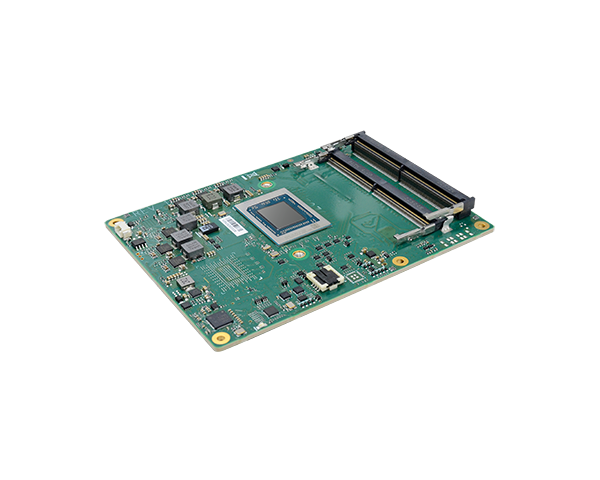

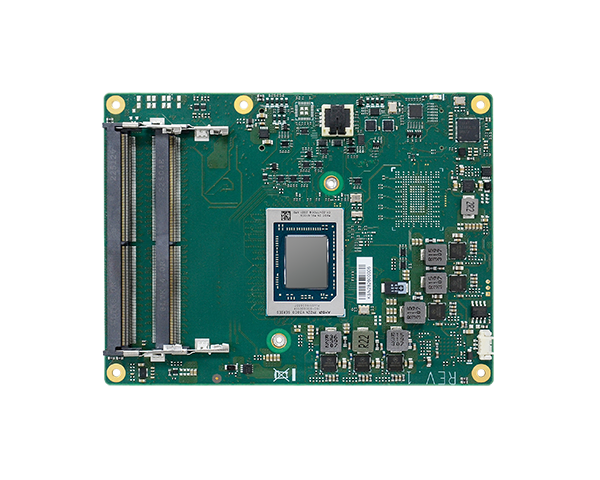

COMe及嵌入式电脑模块-COMe-1031
★Dual DDR5 SODIMM 4800MHz up to 64GB
★Support extended operating temperature: -40 to 85°C
★Support 2 x 10G Ethernet and 1 x 2.5G Ethernet
★Multiple Expansion: 1 PCIe x14 (Gen 4), 1 SMBus, 1 I2C, 1 LPC, UART
★Rich I/O: 4 USB 3.2, 4 USB 2.0, 2 SATA 3.0
-
系统
处理器
AMD® Embedded Ryzen™ V3000 CPU Family
V3C48, 45W, 8C/16T, Base Freq, 3.3GHz
V3C44, 45W, 4C/8T, Base Freq, 3.5GHz
V3C18, 15W, 8C/16T, Base Freq, 1.9GHz
V3C16, 15W, 6C/12T, Base Freq, 2.0GHz
V3C14, 15W, 4C/8T, Base Freq, 2.3GHz
V3C18I, 15W, 8C/16T, Base Freq, 1.9GHz, Industrial Temp内存
Two 262-Pin SODIMM up to 64GB
Dual Channel DDR5 4800MHz (Memory max speed depends on CPU SKU)BIOS
AMI SPI 256Mbit
扩充
界面
Default:
B1 : 1 PCIe x4 or 2 PCIe x2 or 4 PCIe x1
B2 : 1 PCIe x2
B3 : 1 PCIe x8 or 2 PCIe x4
1 x SPI
1 x I2C
1 x SMBus
2 x UART (TX/RX)以太网路
控制器
Supports 2 x 10GBASE-KR
Supports 1 x 2.5GbE and 1000/100/10 Mbit/s Ethernet connection输入/输出
USB
4 x USB 3.2
4 x USB 2.0SATA
2 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 8-bit DIO (4 in, 4 out)
监视定时器
看门狗定时器
System Reset, Programmable via Software from 15 to 255 Seconds
安全性
信赖平台模块
Available upon request
电源
类型
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)耗能
TBD
支持操作系统
Linux
Ubuntu 22.04.1 Kernel 6.1.
环境指标
温度
Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RHMTBF
TBD
机械结构
尺寸
COM Express® Basic
95mm (3.74") x 125mm (4.9")规范
PICMG COM Express® R3.1, Type 7
安规认证
认证
CE, FCC, RoHS
-
-
