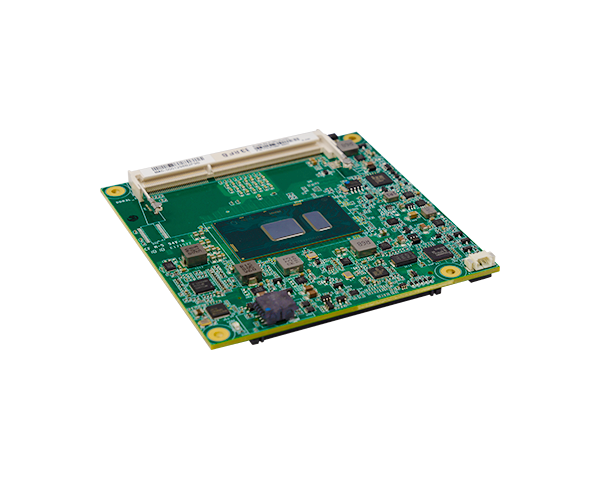

COMe及嵌入式电脑模块-COMe-1029

★第六代 Intel® Core™
★双通道 DDR3L 1600MHz SODIMM 至16GB
★三重独立显示: VGA*/DDI + LVDS*/eDP + DDI
★多重扩充讯号: 8 PCIe x1, 1 LPC, 1 I2C, 1 SMBus
★丰富 I/O: 1 Intel 网口, 4 USB 3.0, 8 USB 2.0
★15年CPU长期支持至Q3' 30 (Based on Intel IOTG Roadmap)
ꄴ上一个： COMe及嵌入式电脑模块-COMe-1030
ꄲ下一个： COMe及嵌入式电脑模块-COMe-1028

  • 系统



    处理器

    6th Generation Intel® Core™ Processors, BGA 1356
    Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz (3.4GHz), 15W
    Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz (3.0GHz), 15W
    Intel® Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W
    Intel® Celeron® Processor 3955U, Dual Core, 2M Cache, 2.0GHz, 15W

    内存

    Two 204-pin SODIMM up to 16GB
    Dual Channel DDR3L 1600MHz

    BIOS

    Insyde SPI 128Mbit

    显示

    控制器

    Intel® HD Graphics

    特性

    OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

    显示器

    1 x VGA/DDI (DDI available upon request)
    1 x LVDS/eDP (eDP available upon request)
    1 x DDI
    VGA: resolution up to 1920x1200 @ 60Hz
    LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
    HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz
    DP++: resolution up to 4096x2304 @ 60Hz
    eDP: resolution up to 4096x2304 @ 60Hz

    三重显示

    VGA + LVDS + DDI
    DDI + eDP + DDI

    扩充

    界面

    5 PCIe x1 or 4 PCIe x1 + 1 PCIe x4 or 3 PCIe x1 + 2 PCIe x2 (support up to 5 devices and 8 lanes)
    1 x LPC
    1 x I2C
    1 x SMBus
    2 x UART (TX/RX)

    音讯

    界面

    HD Audio

    以太网路

    控制器

    1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

    输入/输出

    USB

    4 x USB 3.0
    8 x USB 2.0

    SATA

    3 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10

    DIO

    1 x 8-bit DIO

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    Available Upon Request

    电源

    类型

    12V, 5VSB, VCC_RTC (ATX mode)
    12V, VCC_RTC (AT mode)

    耗能

    Typical: I7-6600U: 12V @ 0.86A (10.28Watt)
    Max.: I7-6600U: 12V @ 1.372A (16.46Watt)

    支持操作系统

    支持操作系统

    Windows 7/WES7 (32/64-bit)
    Windows 8.1 (64-bit)
    Windows 10 IoT Enterprise (64-bit)
    Linux

    环境指标

    温度

    Operating: 0 to 60°C, -40 to 85°C (with cooler)
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    921,923 hrs @ 25°C; 460,715 hrs @ 45°C; 256,677 hrs @ 60°C
    Calculation Model: Telcordia Issue 2, Method Case 3
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    COM Express® Compact 95mm (3.74") x 95mm (3.74")

    规范

    PICMG COM Express® R2.1, Type 6
