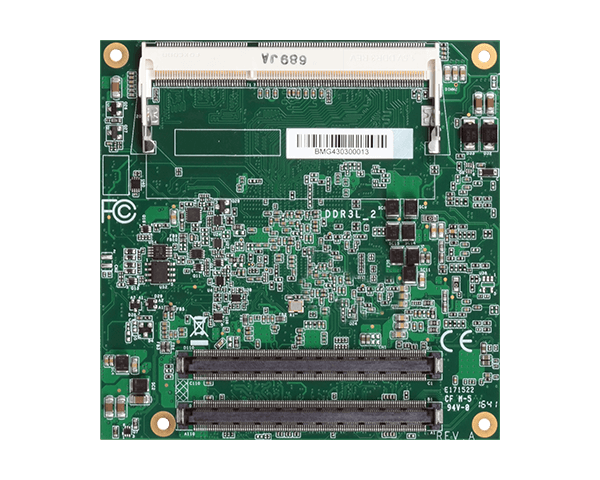

COMe及嵌入式电脑模块-COMe-1028

★Intel® Pentium® N3000
★双通道 DDR3L 1600MHz SODIMM 至8GB
★三重独立显示: VGA*/DDI + LVDS*/eDP + DDI
★多重扩充讯号: 3 PCIe x1, 1 LPC, 1 I2C, 1 SMBus
★丰富 I/O: 1 Intel 网口, 4 USB 3.0, 8 USB 2.0
★15年CPU长期支持至Q1' 30 (Based on Intel IOTG Roadmap)
ꄴ上一个： COMe及嵌入式电脑模块-COMe-1029
ꄲ下一个： COMe及嵌入式电脑模块-COMe-1027

  • 系统



    处理器

    Intel® Pentium®/Celeron® Processor N3000 Family, BGA 1170
    Intel® Atom™ Processor x5-E8000, Quad Core, 2M Cache, 1.04GHz, 5W
    Intel® Pentium® Processor N3710, Quad Core, 2M Cache, 1.6GHz (2.56GHz), 6W
    Intel® Celeron® Processor N3160, Quad Core, 2M Cache, 1.6GHz (2.24GHz), 6W
    Intel® Celeron® Processor N3060, Dual Core, 2M Cache, 1.6GHz (2.48GHz), 6W
    Intel® Celeron® Processor N3010, Dual Core, 2M Cache, 1.04GHz (2.24GHz), 4W

    内存

    Two 204-pin SODIMM up to 8GB Dual Channel DDR3L 1600MHz

    BIOS

    Insyde SPI 64Mbit

    显示

    控制器

    Intel® HD Graphics

    特性

    OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
    HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
    HW Encode: H.264, MPEG2, MPEG4

    显示器

    1 x VGA/DDI (DDI available upon request)
    1 x LVDS/eDP (eDP available upon request)
    1 x DDI
    VGA: resolution up to 1920x1200 @ 60Hz
    LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
    eDP: resolution up to 2560x1440 @ 60Hz
    HDMI: resolution up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz
    DP: resolution up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz

    三重显示

    VGA + LVDS + DDI
    DDI + eDP + DDI (available upon request)

    扩充

    界面

    3 x PCIe x1 (Gen 2)
    1 x LPC
    1 x I2C
    1 x SMBus
    2 x Serial (TX/RX)

    音讯

    界面

    HD Audio

    以太网路

    控制器

    1 x Intel® I211AT PCIe (10/100/1000Mbps)

    输入/输出

    USB

    4 x USB 3.0
    8 x USB 2.0

    SATA

    2 x SATA 3.0 (up to 6Gb/s)

    DIO

    1 x 8-bit DIO

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    Available Upon Request

    电源

    类型

    12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)

    耗能

    Typical: N3710: 12V @ 0.28A (3.41Watt)
    Max.: N3710: 12V @ 0.61A (7.35Watt)

    支持操作系统

    支持操作系统

    Windows 8.1 64-bit
    Windows 7 (/WES7) 32/64-bit
    Windows 10 IoT Enterprise 64-bit
    Debian 8 (with VESA graphic driver)
    CentOS 7 (with VESA graphic driver)
    Linux

    环境指标

    温度

    Operating: 0 to 60°C
    Storage: -40 to 85°C

    湿度

    Operating: 10 to 90% RH
    Storage: 10 to 90% RH

    MTBF

    746,818 hrs @ 25°C; 402,691 hrs @ 45°C; 241,711 hrs @ 60°C
    Calculation Model: Telcordia Issue 2, Method Case 3
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    COM Express® Compact 95mm (3.74") x 95mm (3.74")

    规范

    PICMG COM Express® R2.1, Type 6
