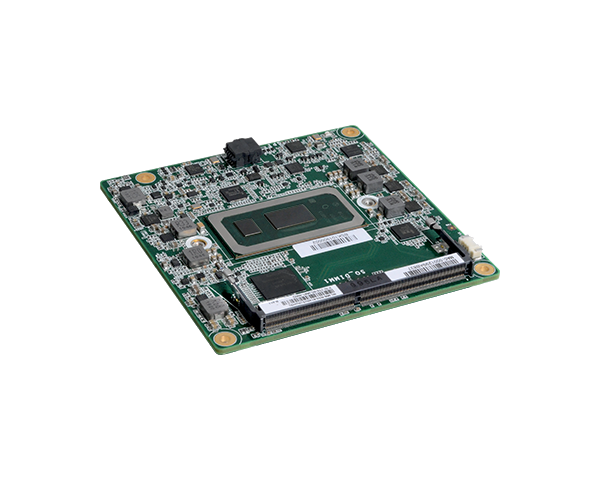

COMe及嵌入式电脑模块-COMe-1025

★8th Generation Intel® Core™ Processor COM Express® Compact
★DDR4 2400/2133MHz SODIMM up to 64GB
★Triple Displays: VGA/DDI + LVDS/eDP + DDI
★DP++ supports 4K x 2K resolution
★Multiple expansion: 4 or 5 PCIe x1 + 1 PCIe x4 or 3 PCIe x1 + 2 PCIe x2, 1 LPC, 1 I²C, 1 SMBus, 2 UART
★Rich I/O: 1 Intel GbE, 4 USB 3.1 Gen2, 8 USB 2.0, 3 SATA 3.0
★15-Year CPU Life Cycle Support Until Q2' 35 (Based on Intel IOTG Roadmap)
ꄴ上一个： COMe及嵌入式电脑模块-COMe-1026
ꄲ下一个： COMe及嵌入式电脑模块-COMe-1024

  • 系统



    处理器

    8th Gen Intel® CoreTM Processor, FCBGA1528
    Intel® Core™ i7-8665UE Processor, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15W
    Intel® Core™ i5-8365UE Processor, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W
    Intel® Core™ i3-8145UE Processor, Dual Core, 4M Cache, 2.2GHz (3.9GHz), 15W
    Intel® Celeron® Processor 4305UE, Dual Core, 2M Cache, 2.0GHz (2.0GHz), 15W

    内存

    Two 260-pin SODIMM up to 64GB
    Dual Channel DDR4 2400MHz, 2133MHz for Celeron Processor

    BIOS

    AMI SPI 128Mbit

    显示

    控制器

    Intel® HD Graphics

    特性

    OpenGL 4.5, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

    显示器

    1 x VGA/DDI (DDI available upon request)
    1 x LVDS/eDP (eDP available upon request)
    1 x DDI

    VGA: resolution up to 1920x1200 @ 60Hz
    LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
    eDP: resolution up to 4096x2304 @ 60Hz
    HDMI: resolution up to 4096x2160 @ 30Hz
    DP++: resolution up to 4096x2304 @ 60Hz

    三重显示

    VGA + LVDS + DDI
    or DDI + eDP + DDI

    扩充

    eMMC

    1 x 8GB/16GB/32GB/64GB/128GB eMMC 5.1 (available upon request)

    界面

    6 PCIe x1 or 2 PCIe x1 + 1 PCIe x4 or 3 PCIe x1 + 2 PCIe x2 (support up to 5 devices and 7 lanes)
    1 x LPC
    1 x I2C
    1 x SMBus
    2 x UART (TX/RX)

    音讯

    界面

    HD Audio

    以太网路

    控制器

    1 x Intel® I219LM with iAMT12.x PCIe (10/100/1000Mbps)

    输入/输出

    USB

    4 x USB 3.1 Gen2
    8 x USB 2.0

    SATA

    Default 2xSATA , 3xSATA by BOM request (up to 6Gb/s)
    RAID 0/1/5

    DIO

    1 x 8-bit DIO

    监视定时器

    看门狗定时器

    Support COM Express 3kinds WDT Modes by BIOS setting

    安全性

    信赖平台模块

    Available Upon Request

    电源

    类型

    12V, 5VSB, VCC_RTC (ATX mode)
    12V, VCC_RTC (AT mode)

    耗能

    TBD

    支持操作系统

    支持操作系统

    Windows: Windows 10 IoT Enterprise 64-bit
    Linux

    环境指标

    温度

    Operating: 0 to 60°C (For normal Temperature skus); -40 to 85°C (For Extend temperature skus with Heat spreader , Heat-sink and active Fan)
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    28W@25℃

    机械结构

    尺寸

    COM Express® Compact
    95mm (3.74") x 95mm (3.74")

    规范

    PICMG COM Express® R3.0, Type 6

    安规认证

    认证

    CE, FCC, RoHS, UKCA
