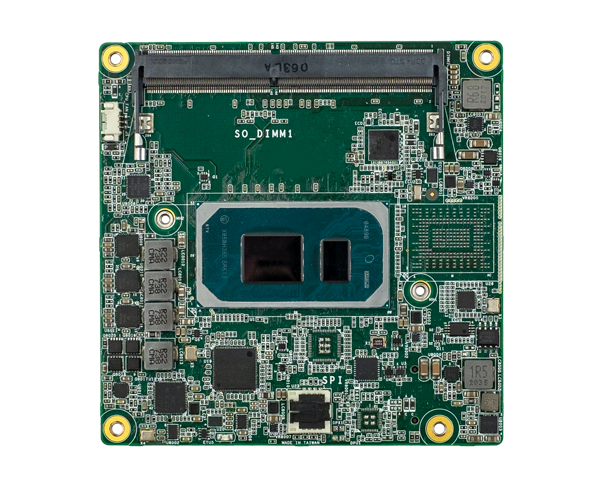

COMe及嵌入式电脑模块-COMe-1024

★11th Generation Intel® Processor COM Express® Compact
★DDR4 3200MHz SODIMM up to 64GB
★VGA/DDI + LVDS/eDP + DDI
★DP++ supports 4K x 2K resolution
★Multiple expansion: 8 PCIe x1, 1 I2C, 1 SMBus
★Rich I/O: 1 Intel 2.5GbE, 4 USB 3.1, 8 USB 2.0
★15-Year CPU Life Cycle Support Until Q3' 35 (Based on Intel IOTG Roadmap)
ꄴ上一个： COMe及嵌入式电脑模块-COMe-1025
ꄲ下一个： COMe及嵌入式电脑模块-COMe-1023

  • 系统



    处理器

    Intel® Core™ i7-1185G7E Processor (Core 4; Max speed 2.8 GHz; TDP 15-28W)
    Intel® Core™ i7-1185GRE Processor (Core 4; Max speed 2.8 GHz; TDP 15-28W)
    Intel® Core™ i5-1145G7E Processor (Core 4; Max speed 2.6 GHz; TDP 15-28W)
    Intel® Core™i5-1145GRE Processor (Core 4; Max speed 2.6 GHz; TDP 15-28W)
    Intel® Core™ i3-1115G4E Processor (Core 2; Max speed 3.0 GHz; TDP 15-28W)
    Intel® Core™ i3-1115GRE Processor (Core 2; Max speed 3.0 GHz; TDP 15-28W)
    Intel® Celeron® 6305E Processor (Core 2; Max speed 1.8 GHz; TDP 15W)

    内存

    Two 260-pin SODIMM up to 64GB
    Dual Channel DDR4 3200MHz

    BIOS

    AMI BIOS

    显示

    控制器

    Intel® Iris® Xe graphics

    特性

    OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1
    HW Encode: AVC/H264, JPEG, HEVC/H265, VP9

    显示器

    1 x VGA/DDI (DDI available upon request)
    1 x LVDS/eDP (eDP available upon request)
    3 x DDI
    VGA: resolution up to 1920x1200 @ 60Hz
    LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
    eDP: resolution up to 4096x2304 @ 60Hz
    HDMI: resolution up to 4096x2160 @ 30Hz
    DP++: resolution up to 4096x2304 @ 60Hz
    VGA + LVDS + DDI DDI + eDP + DDI (available upon request)

    扩充

    界面

    1 x PCIe x4 (Gen 4)
    5 x PCIex1 (Gen3) (8 x PCIex1 available upon request)
    1 x I2C
    1 x SMBus
    1 x SPI
    2 x UART (TX/RX)

    音讯

    界面

    HD Audio

    以太网路

    控制器

    1 x Intel® I225 series (10/100/1000Mbps/2.5G)

    输入/输出

    USB

    4 x USB 3.1 Gen.2
    8 x USB 2.0

    SATA

    2 x SATA 3.0 (up to 6Gb/s)

    SSD

    1 x 64GB/128GB/256GB/512GB/1024GB on board SSD (available upon request)

    DIO

    1 x 8-bit DIO

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    Available Upon Request

    电源

    类型

    8.5~20V, 5VSB, VCC_RTC (ATX mode)
    8.5~20V, VCC_RTC (AT mode)

    耗能

    TBD

    支持操作系统

    支持操作系统

    (UEFI Only)
    Windows: Windows 10 IoT Enterprise 64-bit
    Linux

    环境指标

    温度

    Operating: 0 to 60°C, -40 to 85°C
    Storage: -40 to 85°C

    湿度

    Operating: 10 to 90% RH
    Storage: 10 to 90% RH

    MTBF

    TBD

    机械结构

    尺寸

    COM Express® Compact 95mm (3.74") x 95mm (3.74")

    规范

    PICMG COM Express® R3.0, Type 6

    安规认证

    认证

    CE, FCC, RoHS, UKCA
