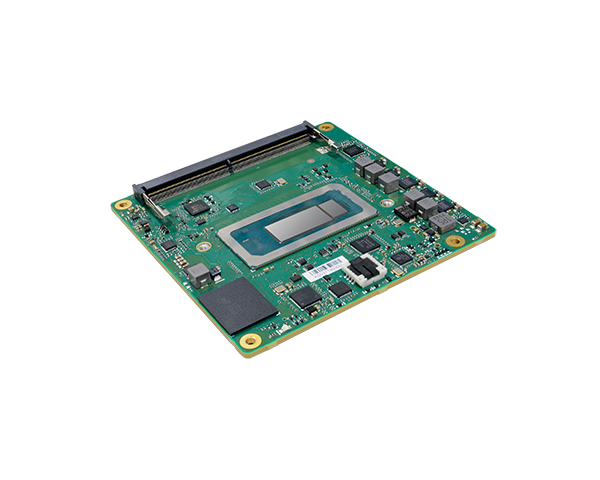

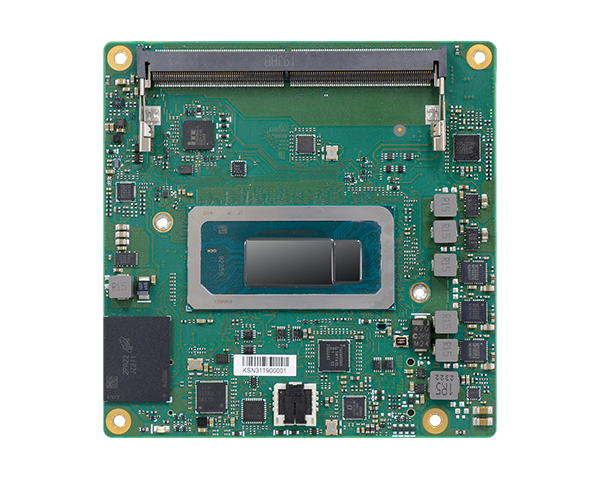

COMe及嵌入式电脑模块-COMe-1022

★Intel® Core® Processor Raptor Lake Series
★DDR5 5200MHz SODIMM up to 64GB
★1 LVDS/eDP, 1 VGA, 3 DDI (HDMI/DP++)
★Multiple expansions: 2 PCIe x4 (Gen4 PCH), 5 PCIe x1
★Rich I/O: 1 Intel GbE, 4 USB 3.2, 8 USB 2.0
★15-Year CPU Life Cycle Support Until Q1' 38 (Based on Intel IOTG Roadmap)
ꄴ上一个： COMe及嵌入式电脑模块-COMe-1023
ꄲ下一个： COMe及嵌入式电脑模块-COMe-1021

  • 系统



    处理器

    Intel® Core™ i7-13800HE (6 P-Cores x 2.5 GHz, 8 E-Cores x 1.8 GHz, 24 MB cache, 45W)
    Intel® Core™ i5-13600HE (4 P-Cores x 2.7 GHz, 8 E-Cores x 1.9 GHz, 18 MB cache, 45W)
    Intel® Core™ i3-13300HE (4 P-Cores x 2.1 GHz, 4 E-Cores x 1.5 GHz, 12 MB cache, 45W)
    Intel® Core™ i7-1370PE (6 P-Cores x 1.9 GHz, 8 E-Cores x 1.2 GHz, 24 MB cache, 28W)
    Intel® Core™ i5-1350PE (4 P-Cores x 1.8 GHz, 8 E-Cores x 1.3 GHz, 12 MB cache, 28W)
    Intel® Core™ i5-1340PE (4 P-Cores x 1.8 GHz, 8 E-Cores x 1.3 GHz, 12 MB cache, 28W)
    Intel® Core™ i3-1320PE (4 P-Cores x 1.7 GHz, 4 E-Cores x 1.2 GHz, 12 MB cache, 28W)
    Intel® Core™ i7-1365UE (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 15W)
    Intel® Core™ i5-1345UE (2 P-Cores x 1.4 GHz, 8 E-Cores x 1.1 GHz, 12 MB cache, 15W)
    Intel® Core™ i5-1335UE (2 P-Cores x 1.2 GHz, 8 E-Cores x 0.9 GHz, 12 MB cache, 15W)
    Intel® Core™ i3-1315UE (2 P-Cores x 1.2 GHz, 4 E-Cores x 0.9 GHz, 10 MB cache, 15W)
    Intel® Pentium® U300E (1 P-Core x 1.1 GHz, 4 E-Cores x 0.9 GHz, 8 MB cache, 15W)

    内存

    Two 262-Pin SO-DIMM up to 64GB, Dual Channel DDR5 5200MHz

    BIOS

    AMI BIOS

    显示

    控制器

    Intel® Iris® Xe graphics

    特性

    OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1
    HW Encode: AVC/H264, JPEG, HEVC/H265, VP9

    显示器

    1 x VGA
    1 x LVDS/eDP (eDP available upon request)
    3 x DDI

    VGA: resolution up to 1920x1200 @ 60Hz
    LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
    eDP: resolution up to 4096x2304 @ 60Hz
    HDMI: resolution up to 4096x2160 @ 30Hz
    DP++: resolution up to 4096x2304 @ 60Hz

    三重显示

    VGA + LVDS + DDI
    DDI + eDP + DDI (available upon request)

    扩充

    界面

    2 x PCIe x4 (Gen4 PCH)
    5 x PCIex1 (Gen3) (8 x PCIex1 available upon request)
    1 x I2C
    1 x SMBus
    1 x SPI
    2 x UART (TX/RX)

    音讯

    界面

    HD Audio

    以太网路

    控制器

    1 x Intel® I226 series (10/100/1000Mbps/2.5G), co-lay PCIe x1 (available upon request)

    输入/输出

    USB

    4 x USB 3.2 Gen.2
    8 x USB 2.0

    SATA

    2 x SATA 3.0 (up to 6Gb/s), co-lay PCIe x1 (available upon request)

    SSD

    1 x 64GB/128GB/256GB/512GB/1024GB on board SSD (available upon request)

    DIO

    1 x 8-bit DIO

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    Available Upon Request

    电源

    类型

    8.5~20V, 5VSB, VCC_RTC (ATX mode)
    8.5~12V, VCC_RTC (AT mode)

    耗能

    TBD

    支持操作系统

    微软

    Windows 10 IoT Enterprise 64-bit

    Linux

    Linux

    环境指标

    温度

    Operating: 0 to 60°C, -40 to 85°C
    Storage: -40 to 85°C

    湿度

    Operating: 10 to 90% RH
    Storage: 10 to 90% RH

    MTBF

    TBD

    机械结构

    尺寸

    COM Express® Compact
    95mm (3.74") x 95mm (3.74")

    规范

    PICMG COM Express® R3.1, Type 6

    安规认证

    认证

    CE, FCC, RoHS
