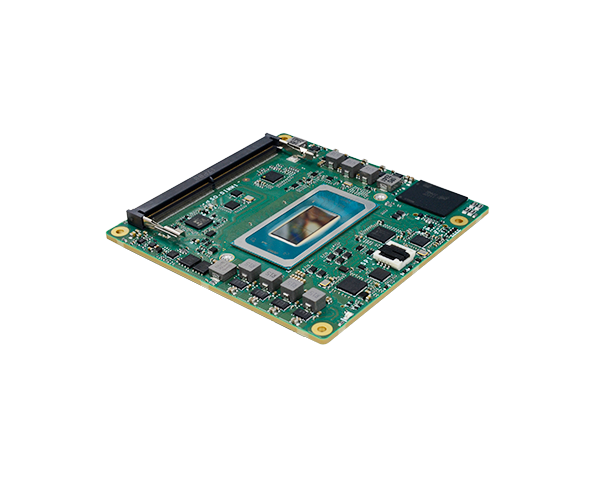

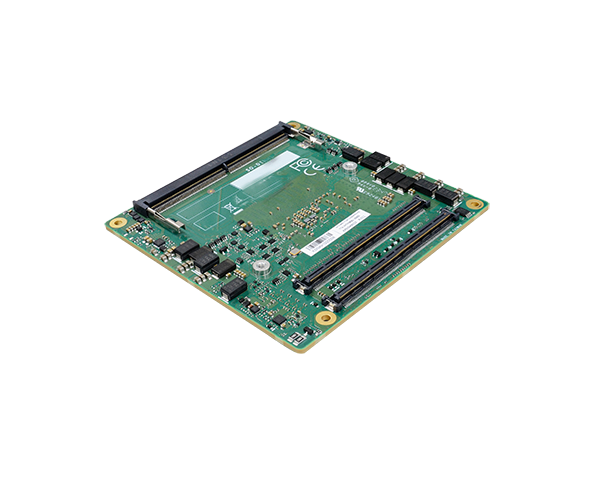

COMe及嵌入式电脑模块-COMe-1021

★Intel® Core™ Ultra Processor (Meteor Lake: U/H-series)
★Dual Channel DDR5 5600MHz SODIMM up to 64GB
★Multiple Displays: 1 VGA + 1 LVDS/eDP + 3 DDI
★Supports 4K / 2K resolution
★Multiple Expansion: 8 PCIe x1, 2 PCIe x4, 1 PCIe x8, 1 I2C, 1 SMBus, 1 LPC/eSPI, 2 UART
★Rich I/O: 1 Intel 2.5GbE, 2 USB 4.0, 3 USB 3.2, 8 USB 2.0, 2 SATA 3.0
ꄴ上一个： COMe及嵌入式电脑模块-COMe-1022
ꄲ下一个： COMe及嵌入式电脑模块-COMe-1020

  • 系统



    处理器

    Intel® Core™ Ultra Processor (Meteor Lake: U/H-series)
    Intel® Core™ Ultra 7 165H (6 P-Cores x 1.4 GHz, 8 E-Cores x 0.9 GHz, 24 MB cache, 28W)
    Intel® Core™ Ultra 7 155H (6 P-Cores x 1.4 GHz, 8 E-Cores x 0.9 GHz, 24 MB cache, 28W)
    Intel® Core™ Ultra 5 135H (4 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 18 MB cache, 28W)
    Intel® Core™ Ultra 5 125H (4 P-Cores x 1.2 GHz, 8 E-Cores x 0.7 GHz, 18 MB cache, 28W)
    Intel® Core™ Ultra 7 165U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 15W)
    Intel® Core™ Ultra 7 155U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 15W)
    Intel® Core™ Ultra 5 135U (2 P-Cores x 1.6 GHz, 8 E-Cores x 1.1 GHz, 12 MB cache, 15W)
    Intel® Core™ Ultra 5 125U (2 P-Cores x 1.3 GHz, 8 E-Cores x 0.8 GHz, 12 MB cache, 15W)

    内存

    Two 260-Pin SO-DIMM up to 64GB
    Dual Channel DDR5 5600MHz

    BIOS

    AMI BIOS

    显示

    控制器

    Intel® Iris® Xe graphics

    特性

    DX12, Open GL 4.6, Vulkan 1.2
    HW Decode: HEVC/VP9/AV1/AVC/H.265/MJPEG
    HW Encode: HEVC/VP9/AV1/AVC/H.265/MJPEG

    显示器

    1 x VGA
    1 x LVDS/eDP (eDP available upon request)
    3 x DDI (2 DDI option with USB4)

    VGA: resolution up to 1920x1200 @ 60Hz
    LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
    eDP: resolution up to 4096x2304 @ 60Hz
    HDMI: resolution up to 4096x2160 @ 30Hz
    DP++: resolution up to 4096x2304 @ 60Hz

    多重显示

    VGA + LVDS + 3 DDI
    VGA + LVDS + 3 DDI (available upon request)

    扩充

    界面

    2 x PCIe x4 (Gen4 from PEG)
    5 x PCIe x1 (Gen4)
    1 x PCIe x8 (Gen5, H-Line only)
    1 x I2C
    1 x SMBus
    1 x SPI
    2 x UART

    音讯

    界面

    HD Audio

    以太网路

    控制器

    1 x Intel® I226 series (10/100/1000Mbps/2.5G), co-lay PCIe x1 (available upon request)

    输入/输出

    USB

    2 x USB 4.0 (BOM option with DDI)
    3 x USB 3.2 Gen 2
    8 x USB 2.0

    SATA

    2 x SATA 3.0 (up to 6Gb/s), co-lay PCIe x1 (available upon request)

    DIO

    1 x 8-bit DIO

    NVMe SSD

    1 x 64GB/128GB/256GB/512GB/1024GB on board SSD (available upon request)

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    Available Upon Request

    电源

    类型

    8.5~20V, 5VSB, VCC_RTC (ATX mode)
    8.5~12V, VCC_RTC (AT mode)

    耗能

    TBD

    支持操作系统

    微软

    Windows 10 IoT Enterprise 64-bit
    Windows 11

    Linux

    Linux

    环境指标

    温度

    · Operating:
    0°C~60°C (For H-Series Processor)
    -40°C~85°C (For U-Series Processor)

    · Storage:
    -40 to 85°C

    湿度

    Operating: 10 to 90% RH Storage: 10 to 90% RH

    MTBF

    TBD

    机械结构

    尺寸

    COM Express® Compact
    95mm (3.74") x 95mm (3.74")

    规范

    PICMG COM Express® R3.1, Type 6

    安规认证

    认证

    CE, FCC, RoHS
