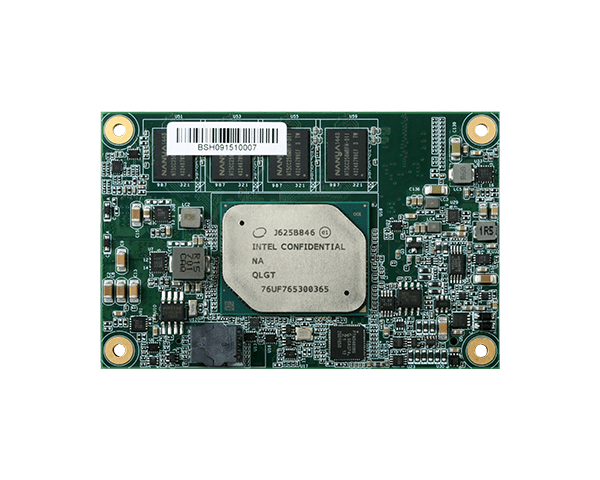

COMe及嵌入式电脑模块-COMe-1018

★Intel Atom® E3900 系列
★双信道 DDR3L 1600MHz 板载内存 至8GB
★1 LVDS, 1 DDI (HDMI/DVI/DP) 支持双重显示: DDI + LVDS/eDP
★多重扩充讯号: 4 PCIe x1
★丰富 I/O: 1 Intel 网口, 2 USB 3.0, 8 USB 2.0
★15年CPU长期支持至Q4' 32 (Based on Intel IOTG Roadmap)
ꄴ上一个： COMe及嵌入式电脑模块-COMe-1019
ꄲ下一个： COMe及嵌入式电脑模块-COMe-1017

  • 系统



    处理器

    Intel Atom® Processor E3900 Series, BGA 1296
    Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
    Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
    Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
    Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
    Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W

    内存

    4GB/8GB DDR3L Memory Down (ECC support only for 8GB)
    Single Channel DDR3L 1600MHz

    BIOS

    AMI SPI 128Mbit (supports UEFI boot only)

    显示

    控制器

    Intel® HD Graphics

    特性

    OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
    HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC

    显示器

    1 x DDI (HDMI/DVI/DP)
    1 x LVDS/eDP
    LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz
    HDMI: resolution up to 3840 x 2160 @ 30Hz
    DP++: resolution up to 4096x2160 @ 60Hz
    eDP: resolution up to 3840x2160 @ 60Hz

    双重显示

    DDI + LVDS
    DDI + eDP

    扩充

    界面

    4 x PCIe x1 (Gen 2)
    1 x SDIO (available upon request)
    1 x LPC
    2 x I2C
    1 x SMBus
    1 x SPI
    2 x UART (TX/RX)

    音讯

    界面

    HD Audio

    以太网路

    控制器

    1 x Intel® I210AT (10/100/1000Mbps) (0°C to 60°C)
    1 x Intel® I210IT (10/100/1000Mbps) (-40°C to 85°C)

    输入/输出

    USB

    2 x USB 3.0
    8 x USB 2.0

    SATA

    2 x SATA 3.0 (up to 6Gb/s)

    eMMC

    1 x 8GB/16GB/32GB/64GB eMMC (available upon request)

    GPIO

    1 x 8-bit GPIO

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    电源

    类型

    4.75V~20V, 5VSB, VCC_RTC (ATX mode) 4.75V~20V, VCC_RTC (AT mode)

    耗能

    Typical: E3950: 12V @ 0.44A (5.28W)
    Max.: E3950:12V @ 1.89A (22.68W)

    支持操作系统

    支持操作系统 (UEFI Only)

    Windows: Windows 10 IoT Enterprise 64-bit
    Linux

    环境指标

    温度

    Operating: 0 to 60°C, -40 to 85°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    2,230,979 hrs @ 25°C; 1,334,511 hrs @ 45°C; 862,577 hrs @ 60°C
    Calculation model: Telcordia Issue 4
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    COM Express® Mini
    84mm (3.30") x 55mm (2.16")

    规范

    PICMG COM Express® R2.1, Type 10

    安规认证

    认证

    CE, FCC Class B, RoHS
