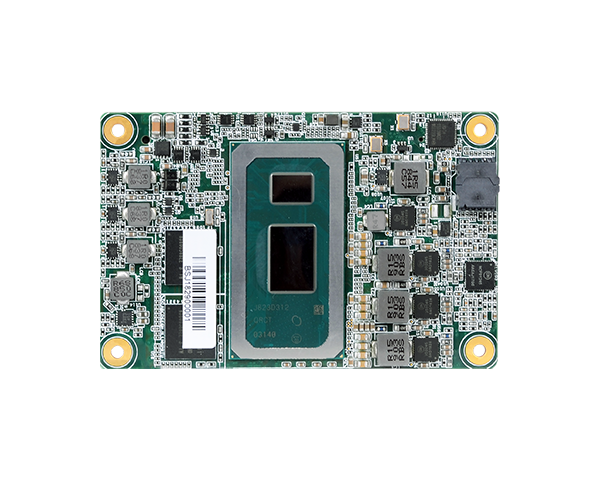

COMe及嵌入式电脑模块-COMe-1017

★Intel® Core™ 8th Gen Processor
★Rich I/O: 1 Intel GbE, 2 USB 3.0, 8 USB 2.0
★Multiple expansions: 4 PCIe x1
★1 LVDS/eDP, 1 DDI (HDMI/DP)；Supports dual displays: DDI + LVDS/eDP
★Dual Channel LPDDR3 2133MHz；Memory Down up to 16GB
★15-Year CPU Life Cycle Support Until Q2' 35 (Based on Intel IOTG Roadmap)
ꄴ上一个： COMe及嵌入式电脑模块-COMe-1018
ꄲ下一个： COMe及嵌入式电脑模块-COMe-1016

  • 系统



    处理器

    8th Gen Intel® Core™ Processor, FCBGA1528
    Intel® Core™ i7-8665UE Processor, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15W
    Intel® Core™ i5-8365UE Processor, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W
    Intel® Core™ i3-8145UE Processor, Dual Core, 4M Cache, 2.1GHz (3.9GHz), 15W

    内存

    8GB/16GB Memory Down
    Dual Channel LPDDR3 2133MHz

    BIOS

    SPI 128Mbit (default supports FTPM)

    显示

    控制器

    Intel® UHD Graphics 620

    特性

    OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
    HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC

    显示器

    1 x DDI (HDMI/DP++)
    1 x LVDS/eDP
    LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz
    HDMI: resolution up to 4096x2160 @ 30 Hz
    DP++: resolution up to 4096x2304 @ 60Hz
    eDP: resolution up to 4096x2304 @ 60Hz

    双重显示

    DDI + LVDS
    DDI + eDP

    扩充

    界面

    4 x PCIe x1 (Gen 3)
    1 x SDIO
    1 x LPC
    2 x I2C
    1 x SMBus
    1 x SPI
    2 x UART (TX/RX)

    音讯

    界面

    HD Audio

    以太网路

    控制器

    1 x Intel® I219 (10/100/1000Mbps)

    输入/输出

    USB

    2 x USB 3.0
    8 x USB 2.0

    SATA

    2 x SATA 3.0 (up to 6Gb/s)

    eMMC

    1 x 4GB/8GB/16GB/32GB/64GB eMMC (available upon request)

    GPIO

    1 x 8-bit GPIO

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    电源

    类型

    12V~20V, 5VSB, VCC_RTC (ATX mode)
    12V~20V, VCC_RTC (AT mode)

    耗能

    Typical: i7-8665UE: 12V @ 0.62A (7.44W)
    Max.: i7-8665UE:12V @ 1.82A (21.84W)

    支持操作系统

    支持操作系统 (UEFI Only)

    Windows 10 IoT Enterprise 64-bit
    Linux

    环境指标

    温度

    Operating: 0 to 60°C, -30 to 85°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    610,322 hrs @ 25°C; 211,473 hrs @ 45°C; 83,430 hrs @ 60°C
    43,428 hrs @ 70°C; 42,033 hrs @ 85°C
    Calculation model: Telcordia Issue 4
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    COM Express® Mini
    84mm (3.30") x 55mm (2.16")

    规范

    PICMG COM Express® R3.0, Type 10

    安规认证

    认证

    CE, FCC, UKCA, RoHS
