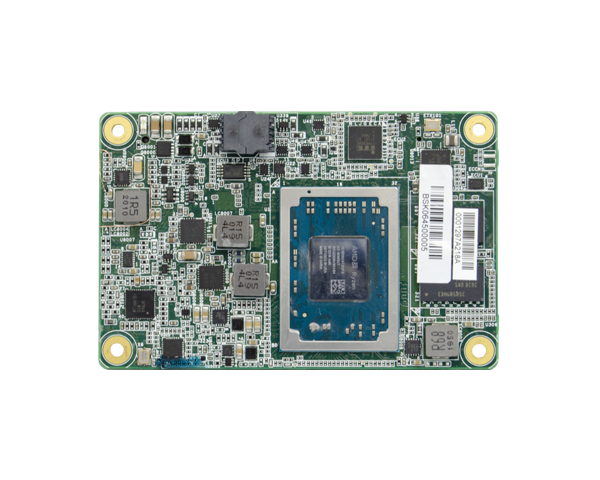

COMe及嵌入式电脑模块-COMe-1016
★Single Channel LPDDR4 2400MHz；Memory Down up to 8GB
★1 LVDS/eDP, 1 DDI (HDMI/DP)；Supports dual displays: DDI + LVDS/eDP
★Multiple expansions: 3 PCIe x1
★Rich I/O: 1 Intel GbE, 2 USB 3.1, 8 USB 2.0
★10-Year CPU Life Cycle Support Until Q1' 28 (Based on AMD Roadmap)
-
系统
处理器
AMD® Ryzen™ Embedded R1606G, Dual Core, 1MB Cache, 3 CU, 2.6GHz (3.5GHz), 12W
AMD® Ryzen™ Embedded R1505G, Dual Core, 1MB Cache, 3 CU, 2.4GHz (3.3GHz), 12W
AMD® Ryzen™ Embedded R1000 series内存
4GB/8GB Memory Down
Single Channel LPDDR4 2400MHzBIOS
SPI 64Mbit (default supports fTPM2.0)
显示
控制器
Radeon™ Vega 3 Graphics
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC显示器
1 x DDI (HDMI/DP++)
1 x LVDS/eDP
LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
DP++: resolution up to 3840x2160 @ 60Hz
eDP: resolution up to 3840x2160 @ 60Hz双重显示
DDI + LVDS
DDI + eDP扩充
界面
3 x PCIe x1 (Gen 3)
1 x SDIO
1 x LPC
2 x I2C
1 x SMBus
1 x SPI
2 x UART (TX/RX)音讯
界面
HD Audio
以太网路
控制器
1 x Intel® I210 (10/100/1000Mbps)
输入/输出
USB
2 x USB 3.1
8 x USB 2.0SATA
2 x SATA 3.0 (up to 6Gb/s)
GPIO
1 x 8-bit GPIO
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
BIOS default support FTPM, TPM2.0 by request.
电源
类型
12V~20V, 5VSB, VCC_RTC (ATX mode)
12V~20V, VCC_RTC (AT mode)耗能
Typical : R1606G : 5V @ 2.71A (13.55W)
Max : R1606G : 5V @ 5.52A (27.6W)支持操作系统
支持操作系统 (UEFI Only)
Windows 10 IoT Enterprise 64-bit
Linux环境指标
温度
Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RHMTBF
327,852 hrs @25C ; 162,213 hrs @45C ; 89,021 hrs @60C
Calculation Model : Telcordia Issue 4
Environment : GB, GC – Ground Benign, Controlled机械结构
尺寸
COM Express® Mini
84mm (3.30") x 55mm (2.16")规范
PICMG COM Express® R3.0, Type 10
-
-
