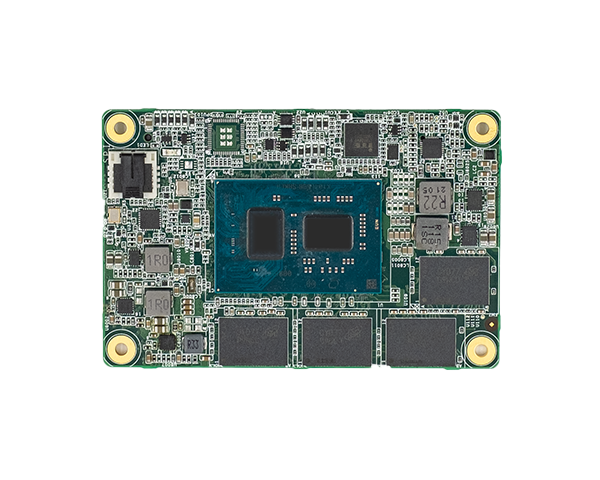

COMe及嵌入式电脑模块-COMe-1013

★Intel® Atom® Processor Elkhart Lake Series
★Dual Channel LPDDR4X 3200MHz/4267MHz up to 16GB
★1 LVDS/eDP, 1 DDI (HDMI/DP++)；Supports dual displays: DDI + LVDS/eDP
★Multiple expansions: 4 PCIe x1
★Rich I/O: 1 Intel GbE, 2 USB 3.1, 8 USB 2.0
★15-Year CPU Life Cycle Support Until Q1' 36 (Based on Intel IOTG Roadmap)
ꄴ上一个： COMe及嵌入式电脑模块-COMe-1014
ꄲ下一个： COMe及嵌入式电脑模块-COMe-1012

  • 系统



    处理器

    Intel Atom® x6000 series and Intel® Celeron® and Pentium® N & J series processors

    内存

    LPDDR4X up to 16GB
    Dual Channel LPDDR4X 3733MHz/4267MHz which depends on processor
    *Note1: 8GB/16GB supported by project basis.
    *Note2: In-band ECC (IBECC) with normal memory chip support on selected ATOM x6000 series SKUs. IBECC can set enabled or disabled in BIOS setup menu.

    BIOS

    AMI SPI 256Mbit

    显示

    控制器

    Intel® HD Graphics

    特性

    OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
    HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP9, MVC

    显示器

    1 x DDI
    1 x LVDS/eDP
    LVDS: single channel 24-bit, resolution up to 1920x1200 @ 60Hz
    eDP: resolution up to 4096x2160 @ 60Hz
    HDMI: resolution up to 4096x2160 @ 30Hz
    DP++: resolution up to 4096x2160 @ 60Hz, 3840x2160 @60Hz

    双重显示

    DDI + LVDS/eDP

    扩充

    界面

    4 x PCIe x1 (Gen 3)
    1 x SD/SDIO (available upon request)
    1 x I2C
    1 x SMBus
    1 x LPC
    1 x Speaker
    1 x SD 3.0
    1 x SPI
    2 x UART (TX/RX)

    音讯

    界面

    HD Audio

    以太网路

    控制器

    1 x Intel® I225-IT / I225-LM (10/100/1000Mbps/2.5Gbps)

    输入/输出

    USB

    2 x USB 3.1
    8 x USB 2.0

    SATA

    2 x SATA 3.0 (up to 6Gb/s)

    eMMC

    1 x 8GB/16GB/32GB/64GB/128GB eMMC 5.1 (available upon request)

    DIO

    1 x 8-bit DIO

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    dTPM or fTPM (Optional)

    电源

    类型

    4.75V~20V, 5VSB, VCC_RTC (ATX mode)
    4.75V~20V, VCC_RTC (AT mode)

    耗能

    TBD

    支持操作系统

    支持操作系统

    Windows: Windows 10 IoT Enterprise 64-bit
    Linux

    环境指标

    温度

    Operating: -5 to 65°C, -40 to 85°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    TBD

    机械结构

    尺寸

    COM Express® Mini 84mm (3.3") x 55mm (2.16")

    规范

    PICMG COM Express® R3.0, Type 10

    安规认证

    认证

    CE, FCC, UKCA, RoHS
