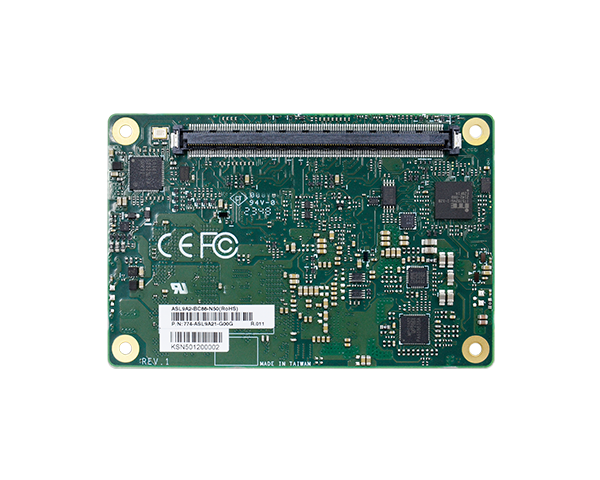

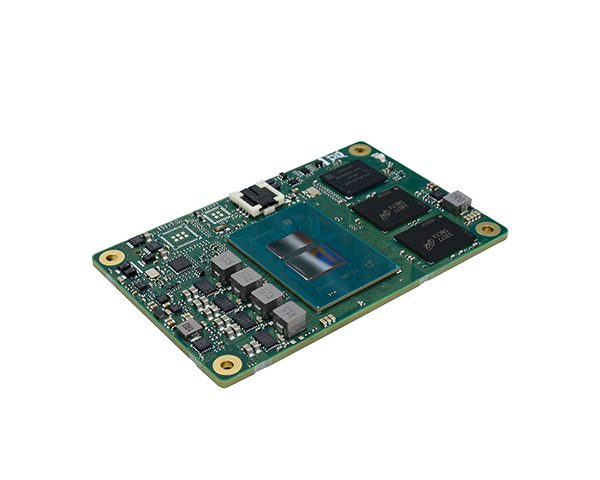

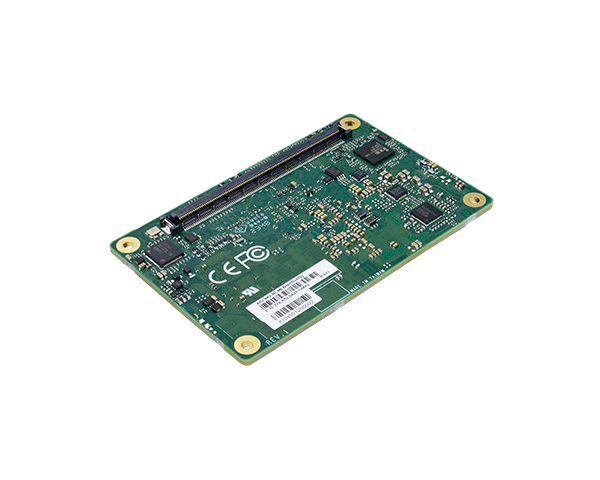

COMe及嵌入式电脑模块-COMe-1012

★Intel® Atom® Processor Amston Lake Series
★Dual Channel LPDDR5 4800MHz up to 16GB
★1 LVDS/eDP, 1 DDI (HDMI/DP++)；Supports dual displays: DDI + LVDS/eDP
★Multiple expansions: 4 PCIe x1, 1 SMBus, 1 I2C, 1 eMMC
★Rich I/O: 2 USB 3.1, 8 USB 2.0
★High Speed Ethernet: Supports 100M/1000M/2.5Gbps
ꄴ上一个： COMe及嵌入式电脑模块-COMe-1013
ꄲ下一个： COMe及嵌入式电脑模块-COMe-1011

  • 系统



    处理器

    Intel® Atom x7000RE series processors (Code Name : Amston Lake)
    Intel® Atom Processor x7835RE, 8 Cores, 1.3~3.6GHz, 12W
    Intel® Atom Processor x7433RE, 4 Cores, 1.5~3.4GHz, 9W
    Intel® Atom Processor x7213RE, 2 Cores, 2.0~3.4GHz, 9W
    Intel® Atom Processor x7211RE, 2 Cores, 1.0~3.2GHz, 6W

    内存

    LPDDR5 up to 16GB
    Dual Channel LPDDR5 4800MHz
    8GB/16GB supported by project basis.
    In-band ECC (IBECC) Supported by all CPU SKUs

    BIOS

    AMI SPI 256Mbit

    显示

    控制器

    Intel® UHD

    特性

    Open GL 4.6, DirectX 12.1 Vulkan 1.2 (Windows) Mesa 3D, Open GL 4.6, Vulkan 1.2 (Linux)
    HW Decode: 4K60 10b 4:2:0, 4:4:4 HEVC/VP9/SCC, 4K60 10b 4:2:0 AV1
    HW Encode: 4K60 10b 4:2:0, 4:4:4 HEVC/VP9/SCC

    显示器

    1 x DDI
    1 x LVDS/eDP

    LVDS: single channel 24-bit, resolution up to 1920x1200 @ 60Hz
    eDP: resolution up to 4096x2160 @ 60Hz
    HDMI: resolution up to 4096x2160 @ 30Hz
    DP++: resolution up to 4096x2160 @ 60Hz, 3840x2160 @60Hz

    双重显示

    DDI + LVDS/eDP

    扩充

    界面

    4 x PCIe x1 (Gen 3)
    1 x I2C
    1 x SMBus
    1 x LPC
    1 x SNDW (available upon request)
    1 x GSPI
    2 x UART (TX/RX)

    音讯

    音讯编译码器

    HD Audio

    以太网路

    控制器

    1 x Intel® I226-IT / I226-LM (10/100/1000Mbps/2.5Gbps)

    输入/输出

    USB

    2 x USB 3.2 Gen2
    8 x USB 2.0

    SATA

    2 x SATA 3.0 (up to 6Gb/s)

    eMMC

    1 x 8GB/16GB/32GB/64GB/128GB eMMC 5.1 (available upon request)

    DIO

    1 x 8-bit DIO

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    dTPM or fTPM (Optional)

    电源

    类型

    4.75V~20V, 5VSB, VCC_RTC (ATX mode)
    4.75V~20V, VCC_RTC (AT mode)

    耗能

    TBD

    支持操作系统

    支持操作系统 (UEFI Only)

    Windows 11/10 IoT Enterprise 64-bit
    Linux

    环境指标

    温度

    Operating: -40 to 85°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    TBD

    机械结构

    尺寸

    COM Express® Mini
    84mm (3.3") x 55mm (2.16")

    规范

    PICMG COM Express® R3.1, Type 10

    安规认证

    认证

    CE, FCC
