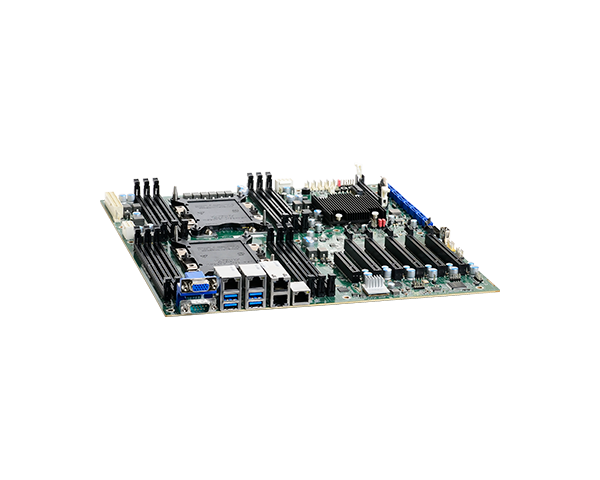

服务器级主板-SEV-6105

★Intel® 1st/2nd Xeon® Scalable Family
★12 DDR4 ECC-RDIMM up to 768GB
★VGA resolution up to 1920x1200 @ 60Hz
★Multiple expansion: 4 PCIe x16, 1 PCIe x8, 1 PCI, 1 M.2
★Rich I/O: 2 Intel 10GbE, 2 Intel GbE, 2 COM, 8 SATA 3, 3 USB 2.0, 6 USB 3.1 Gen1
★15-Year CPU Life Cycle Support Until Q3' 32 (Based on Intel IOTG Roadmap)
ꄴ上一个： 服务器级主板-SEV-6106
ꄲ下一个： 服务器级主板-SEV-6103

  • 系统



    处理器

    1st Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
    Intel® Xeon® Platinum 8160T (24 Cores, 27.5M Cache, up to 3.7 GHz); 150W
    Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
    Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
    Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W
    Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W
    Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
    Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
    Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W
    Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W
    Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W
    Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
    Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
    Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W
    Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W
    Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W
    Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W
    2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
    Intel® Xeon® Gold 6252N (24 Cores, 35.75M Cache, up to 3.6 GHz); 150W
    Intel® Xeon® Gold 6238T (22 Cores, 30.25M Cache, up to 3.7 GHz); 125W
    Intel® Xeon® Gold 6230T (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
    Intel® Xeon® Gold 6230N (20 Cores, 27.5M Cache, up to 3.5 GHz); 125W
    Intel® Xeon® Gold 6230 (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
    Intel® Xeon® Gold 6226 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
    Intel® Xeon® Gold 5220T (18 Cores, 24.75M Cache, up to 3.9 GHz); 105W
    Intel® Xeon® Gold 5218T (16 Cores, 22M Cache, up to 3.8 GHz); 105W
    Intel® Xeon® Gold 5218N (16 Cores, 22M Cache, up to 3.7 GHz); 110W
    Intel® Xeon® Gold 5215 (10 Cores, 13.75M Cache, up to 3.4 GHz); 85W
    Intel® Xeon® Silver 4216 (16 Cores, 22M Cache, up to 3.2 GHz); 100W
    Intel® Xeon® Silver 4215 (8 Cores, 11M Cache, up to 3.5 GHz); 85W
    Intel® Xeon® Silver 4214 (12 Cores, 16.5M Cache, up to 3.2 GHz); 85W
    Intel® Xeon® Silver 4210 (10 Cores, 13.75M Cache, up to 3.2 GHz); 85W
    Intel® Xeon® Silver 4209 (8 Cores, 11M Cache, up to 3.2 GHz); 70W

    芯片组

    Intel® C622 Chipset

    内存

    12 x 288-pin ECC-RDIMM up to 768GB
    Single Channel DDR4 up to 2133/2400/2666/2933 MHZ
    (Support Intel DC Persistent Memory)

    BIOS

    Insyde

    显示

    显示器

    1 x VGA (opt.)

    单显示

    VGA (opt.)

    扩充

    界面

    4 x PCIe x16 (Gen 3)
    1 x PCIe x8 (Gen 3)
    1 x PCI
    1 x M.2 M key2280 (PCIe Gen3 x4 NVMe/SATA)
    1 x BMC Module slot for SEM2500/2510 (IPMI)
    1 x 100GbE slot (x4 + x8) for EXT-100GbE proprietary module
    *Note: PCIe x8 slot is OPEN edge.

    音讯

    音讯编译码器

    ALC887

    以太网路

    控制器

    2 x Intel® I210AT (10/100/1000Mbps)
    1 x Intel® x557-AT2 (10GbE)

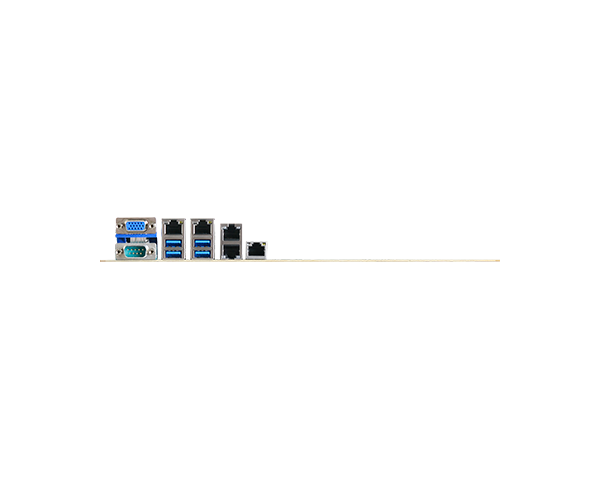

    背板输入/输出

    以太网络

    2 x GbE (RJ-45)
    2 x 10 GbE x557-AT2
    IPMI 2.0: 1 share w/ i210AT (opt.)

    串口

    1 x RS-232 (DB-9)

    USB

    4 x USB 3.1 Gen1

    显示

    1 x VGA (opt.)

    内部输入/输出

    串行端口

    1 x RS-232

    USB

    1 x USB 2.0 header (2x USB 2.0)
    1 x USB 2.0 vertical Type A
    1 x USB 3.1 Gen1 header (2x USB 3.1 Gen1)

    SATA

    8 x SATA 3 (up to 6Gb/s)
    RAID 0/1/5/10

    SMBus

    1 x SMBus

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 sec/Min

    安全性

    信赖平台模块

    TPM 2.0 (opt.)

    电源

    类型

    ATX

    端口

    8-pin ATX 12V power
    24-pin ATX power

    耗能

    Idle: 8276M 3.3V @ 0.03A (0.09W), 5V @ 3.86A (19.3W), 12V @ 3.42A (41.04W)
    Max: 8276M 3.3V @ 0.04A (0.13W), 5V @ 4.84A (24.2W), 12V @ 25.28A (303.36W)

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    支持操作系统

    Windows 10 IoT Enterprise LTSC RS5(64-bit)
    Windows Server 2019
    Windows Server 2016
    Linux

    环境指标

    温度

    Operating: 0 to 40°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    450,938 hrs @ 25°C; 305,034 hrs @ 40 °C
    Calculation model: Telcordia Issue 4
    Environment: GB, GC - Ground Benign, Controlled

    机械结构

    尺寸

    EATX Form Factor
    305mm (12") x 330mm (13")

    高度

    PCB: 1.8mm
    Top Side: 32 mm, Bottom Side: 4.0mm

    安规认证

    认证

    CE, FCC, RoHS, UKCA
