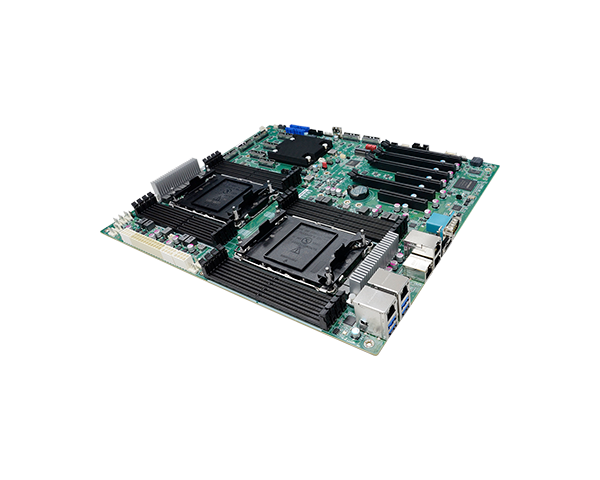

服务器级主板-SEV-6102
★5th/4th Gen Intel® Xeon® Scalable Family
★16 DDR5 ECC-RDIMM up to 1024GB
★IPMI OOB Remote Management
★Single Display: DP
★Multiple Expansion: 4 PCIe x16 (Gen 5), 2 PCIe x8 (Gen5), 1 M.2 M key 2280
★Rich I/O: 4 Intel® GbE, 1 Dedicated IPMI, 2 COM, 4 SATA 3.0, 6 USB 3.2 Gen1, 2 USB 2.0, 1 Vertical USB 2.0
★16 DDR5 ECC-RDIMM up to 1024GB
★IPMI OOB Remote Management
★Single Display: DP
★Multiple Expansion: 4 PCIe x16 (Gen 5), 2 PCIe x8 (Gen5), 1 M.2 M key 2280
★Rich I/O: 4 Intel® GbE, 1 Dedicated IPMI, 2 COM, 4 SATA 3.0, 6 USB 3.2 Gen1, 2 USB 2.0, 1 Vertical USB 2.0
-
系统
处理器
5th/4th Gen Intel® Xeon® Scalable Family
Socket: Dual LGA4677
Max. Speed: up to 4.1GHz (Turbo)
TDP: up to 270W
Cache: up to 60MB芯片组
Intel® C741 Chipset
内存
16 x ECC-RDIMM up to 1024GB
DDR5 Max. 5600MHzBIOS
Insyde
显示
控制器
BMC AST2600
显示器
1 x DP
单显示
DP
扩充
界面
4 x PCIe x16 (Gen 5)
2 x PCIe x8 (Gen5)
1 x M.2 M key 2280音讯
音讯编译码器
ALC888S
以太网路
控制器
4 x Intel® I210
IPMI: RTL8211F背板输入/输出
以太网络
4 x GbE
1 x Dedicated IPMI LAN串口
1 x RS-232/422/485 (DB-9)
USB
4 x USB 3.2 Gen1
PS/2
1 x PS/2
显示
1 x DP
内部输入/输出
串行端口
1 x RS-232/422/485
USB
2 x USB 3.2 Gen1
2 x USB 2.0
1 x Vertical USB 2.0音效
1 x Front Audio
SATA
4 x SATA 3.0
RAID 0/1/5/10DIO
16-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
MCIO
2 x MCIO
安全性
信赖平台模块
TPM 2.0
电源
类型
ATX
环境指标
温度
Operating: 0 to 60°C
机械结构
尺寸
305 x 365 mm
高度
PCB: TBD
Top Side: TBD
Bottom Side: TBD -
-
