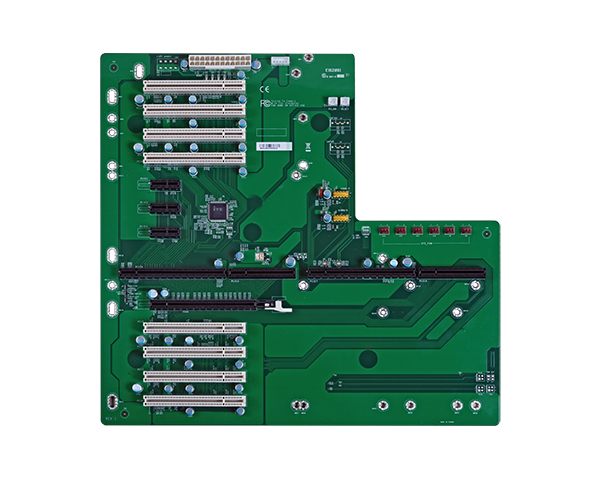

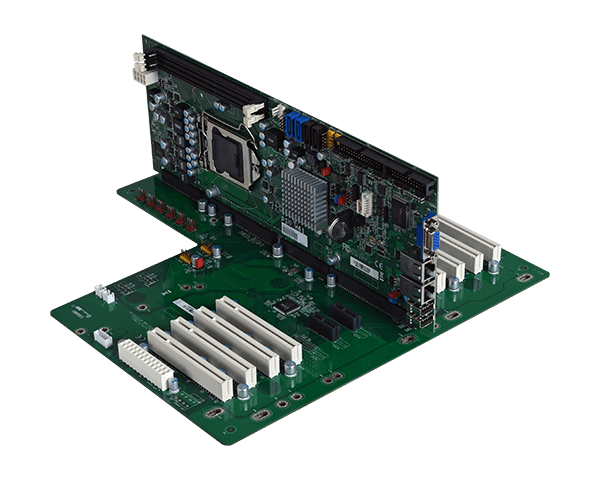

PICMG工业主板-PCA-6077

★全尺寸 PICMG 1.3 背板
★扩充插槽: 1 PCIe x16, 3 PCIe x1, 8 PCI
★丰富I/O: 4 USB 2.0
ꄴ上一个： 无
ꄲ下一个： PICMG工业主板-PCA-6076

  • 规格

    特性

    EXPANSION INTERFACES: 1 PCIe x16 slot；3 PCIe x1 slots；8 PCI slots
    POWER: 1 24-pin ATX power connector；1 5-pin power connector
    USB: 2 connectors for 4 external USB 2.0/1.1 ports
    SYSTEM FANS: 6 system fan connectors
    POWER/RESET: 1 power on connector；1 reset connector
    APPLIED MODEL: PIC-Q170/H110, PIC-H61
    CHASSIS: Fits a 4U rackmount chassis
