PICMG工业主板-PCA-6075
★4/2 DDR5 UDIMM up to 192GB
★Supports 3 independent displays: DVI-I(colay VGA),2 DFI display module
★Supports up to 2K resolution
★Multiple expansion: 1 M.2 E Key (USB/PCIe/CNVi), 1 M.2 M Key (PCIe), 1 M.2 A Key for M2A-OOB
★Rich I/O: 2 Intel 2.5GbE, 4 COM, 6 USB 3.2 Gen2, 2 USB 2.0, 6 SATA 3.0
-
系统
处理器
14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5.0 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores,6M Cache, 3.9 GHz); 46W
Intel® 300T (2 Cores, 6M Cache, 3.4 GHz); 35W
13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I9-13900 (24 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700 (16 Cores, 30M Cache, up to 5.2 GHz); 65W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500 (14 Cores, 24M Cache, up to 4.8 GHz); 65W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13400 (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100 (4 Cores, 12M Cache, up to 4.5 GHz); 65W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W
Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i9-12900(16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.7 GHz); 35W
Intel® Core™ i7-12700 (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i5-12500 (6 Cores, 18M Cache, up to 4.6 GHz); 65W
Intel® Core™ i5-12400 (6 Cores, 18M Cache, up to 4.4 GHz); 65W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i3-12100 (4 Cores, 12M Cache, up to 4.3 GHz); 60W
Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W芯片组
Intel® R680E/H610E Chipset
内存
2/4 288-pin UDIMM up to 96G/128GB (ECC/Non-ECC)
Dual Channel DDR5 4000 MHz (ECC support: R680E only)BIOS
AMI SPI 256Mbit
显示
控制器
Intel® UHD Graphics 700 series
特性
3D graphics HW acceleration:DX12, Open GL 4.6, Vulkan 1.2
· HW Video Decode:
8K60 12b 4:2:0 HEVC/VP9/SCC
8K30 10b 4:2:0 AV1
5K60 10b 4:4:4 HEVC/VP9/SCC
4K60 8b 4:2:0 AVC
· HW Video Encode:
8K30 or 5K60 8b/10b 4:2:0 HEVC/VP9/SCC
4K60 10b 4:4:4 HEVC/VP9/SCC
4K60 8b 4:2:0 AVC显示器
1 x DVI-I (colay VGA)
2 x DFI display extension port (DP/HDMI/VGA available)
DVI-I /VGA: resolution up to 1920x1200 @ 60Hz
HDMI /VGA: resolution up to 1920x1080 @ 60Hz
DP: resolution up to 1920x1200 @ 60Hz三重显示
DVI-I (colay VGA) +DFI display extension port (DP/HDMI/VGA available)
扩充
界面
RPSPIC-R680E
1 x M.2 2230 E Key (USB 2.0x1/CNVix1/PCIe3.0 x1)
1 x M.2 2280 M Key (PCIe 4.0x4)
1 x M.2 3042 A Key for M2A-OOB
RPSPIC-H610E
1 x M.2 2230 E Key (USB 2.0x1/CNVix1/PCIe3.0 x1)
1 x M.2 3042 A Key for M2A-OOB
音讯
音讯编译码器
Realtek ALC888S
以太网路
控制器
RPSPIC-R680E
1 x Intel® I226-LM (Core i9/i7/i5 support iAMT)
1 x Intel® I226-V (colay i210AT)
RPSPIC-H610E
1 x Intel® I226-V
1 x Intel® I226-V (colay i210AT)

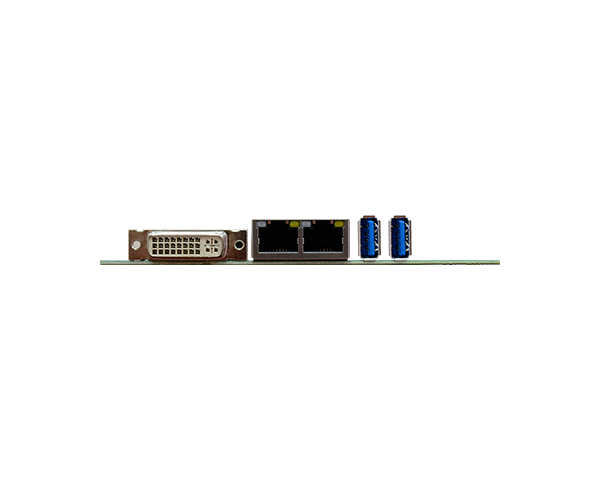

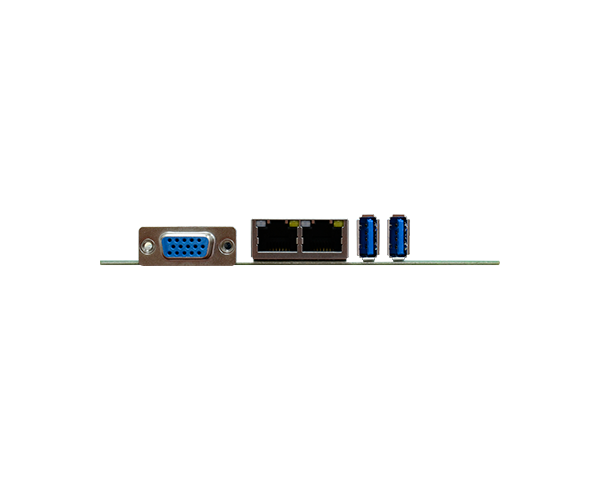

背板输入/输出
以太网络
2 x 2.5GbE (RJ-45)
USB
2 x USB 3.2 Gen2
显示
1 x DVI-I (colay VGA)
内部输入/输出
串行端口
2 x RS232/422/485 w/o Power (2.0 pitch BOX) by BIOS select
2 x RS232 w/o Power, 2.0 pitch BOXUSB
RPSPIC-R680E
4 x USB 3.2 Gen 2 BOX, 2 x USB 2.0 (2x5 2.0mm pitch header)
RPSPIC-H610E
2 x USB 2.0 (2x5 2.0mm pitch header)
显示
2 x DFI display extension port (DP/HDMI/VGA available)
音效
1 x Front Audio Header (1 x Line-out, 1 x Mic-in)
SATA
RPSPIC-R680E
6 x SATA 3.0 (up to 6Gb/s)
RPSPIC-H610E
4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10
DIO
1 x 8-bit DIO BOX
SMBus
1 x SMBus
PS/2
1 x PS/2 (2.54mm pitch)
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Nuvoton TPM 2.0
电源
类型
ATX
端口
8-pin ATX 12V power
Expansion Goldfinger耗能
TBD
RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Windows 11 EnterpriseLinux
Linux
环境指标
温度
Operating: -5 to 65°C
Storage: -40 to 85°C湿度
Operating: 5 to 95% RH
Storage: 5 to 95% RHMTBF
TBD

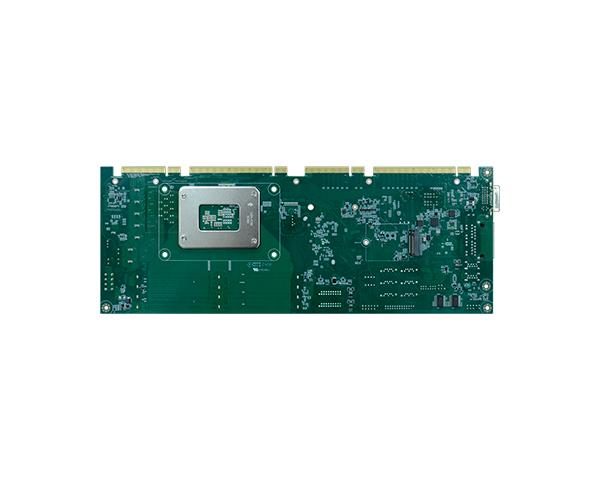

机械结构
尺寸
Full Size PICMG 1.3
338mm (13.3") x 126.39mm (4.98")高度
PCB: TBD
Top Side: TBD
Bottom Side: TBD安规认证
认证
CE, FCC Class B, RoHS
-
-
