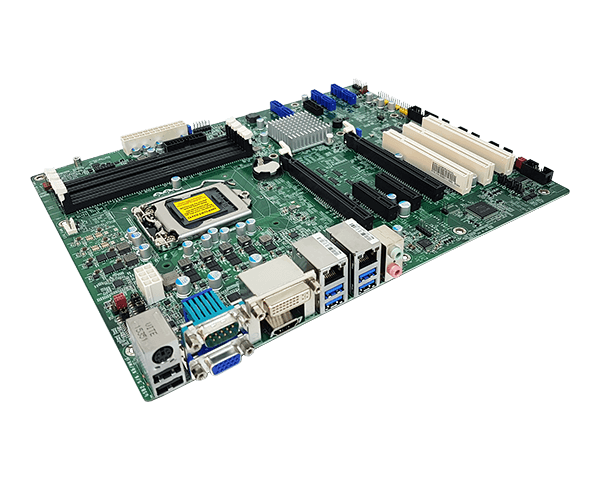

ATX工业主板-EBC-7041
★4 DDR4 DIMM 至 64GB
★三个独立显示: VGA + DVI-I (DVI-D 讯号) + HDMI
★多重扩充: 2 PCIe x16 (1 x16 or 2 x8 讯号), 2 PCIe x4, 3 PCI, 1 LPC
★丰富I/O: 2 Intel 网口, 6 串口, 6 USB 3.0, 8 USB 2.0
★15年CPU长期支持至Q3' 30 (Based on Intel IOTG Roadmap)
-
系统
处理器
6th/7th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W
芯片组
Intel® Q170 Chipset
内存
Four 288-pin DIMM up to 64GB
Dual Channel DDR4 2133/2400MHzBIOS
Insyde SPI 128Mbit
显示
控制器
Intel® HD Gen 9 Graphics
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9显示器
1 x VGA
1 x DVI-I (DVI-D signal)
1 x HDMI
VGA: resolution up to 1920x1200 @ 60Hz
DVI-I: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz三重显示
VGA + DVI-I (DVI-D signal) + HDMI
扩充
界面
2 x PCIe x16 (1 x16 or 2 x8 signal) (Gen 3)
2 x PCIe x4 (Gen 3)
3 x PCI音讯
音讯编译码器
Realtek ALC888S-VD2-GR
以太网路
控制器
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
4 x USB 3.0
2 x USB 2.0PS/2
1 x PS/2 (mini-DIN-6)
显示
1 x VGA
1 x DVI-I (DVI-D signal)
1 x HDMI音源
1 x Line-in (opt., MOQ required)
1 x Line-out
1 x Mic-in内部输入/输出
串行端口
1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)USB
2 x USB 3.0 (2.00mm pitch)
6 x USB 2.0 (2.54mm pitch) or
4 x USB 2.0 (2.54mm pitch) + 1 x Vertical USB 2.0 (type A) (opt., MOQ required)音效
1 x S/PDIF
SATA
6 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10DIO
1 x 8-bit DIO
LPC
1 x LPC (supports LPC EXT-RS232/RS485 module)
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
opt., MOQ required
电源
类型
ATX
端口
8-pin ATX 12V power
24-pin ATX power耗能
Typical: i7 65W: 12V @ 2.45A (29.44Watt)
Max.: i7 65W: 12V @ 6.02A (72.22Watt)RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统
Windows 7 32/64-bit
Window 8.1 64-bit
Windows 10 64-bit
Linux
Note: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Linux.环境指标
温度
Operating: 0 to 60°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RHMTBF
368,564 hrs @ 25°C; 210,464hrs @ 45°C; 133,339 hrs @ 60°C
Calculation Model: Telcordia Issue 2, Method Case 3
Environment: GB, GC – Ground Benign, Controlled机械结构
尺寸
ATX Form Factor
305mm (12") x 244mm (9.6")高度
PCB: 1.6mm
Top Side: 31.47 mm
Bottom Side: 4.40 mm安规认证
认证
CE, FCC Class B, RoHS, UL, KCC
-
-
