ATX工业主板-EBC-7037

★Three independent displays: VGA, DVI-D, DP++
★Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 3 PCIe x4, 2 PCI, 1 M.2 M key, 1 Mini PCIe
★Rich I/O: 2 Intel GbE, 6 COM, 6 USB 3.1 Gen1, 7 USB 2.0
★4 DDR4 ECC/Non-ECC U-DIMM up to 64GB
★6th/7th Gen Intel® Core™ with Intel® C236
★15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)
ꄴ上一个： ATX工业主板-EBC-7038
ꄲ下一个： ATX工业主板-EBC-7036

  • 系统



    处理器

    6th/7th Generation Intel® /Xeon Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W

    芯片组

    Intel® C236 Chipset

    内存

    Four 288-pin ECC/Non ECC U-DIMM up to 64GB
    Dual Channel DDR4 2133/2400MHz (Core™ i5/i7 only support non-ECC)

    BIOS

    Insyde SPI 128Mbit

    显示

    控制器

    Intel® HD Gen 9 Graphics

    特性

    OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

    显示器

    1 x VGA
    1 x DVI-I (DVI-D signal)
    1 x DP++ VGA: resolution up to 1920x1200 @ 60Hz
    DVI-D: resolution up to 1920x1200 @ 60Hz
    DP++: resolution up to 4096x2160 @ 60Hz

    三重显示

    VGA + DVI-I (DVI-D signal) + DP++

    扩充

    界面

    2 x PCIe x16 (1 x16 or 2 x8 signal) (Gen 3)
    3 x PCIe x4 (Gen 3)
    2 x PCI
    1 x M.2 2260/2280 M key (SATA3.0/PCIe Gen3 x 2 NVMe) (Optane memory support)
    1 x Mini PCIe (PCIe/mSATA/USB 2.0)

    音讯

    音讯编译码器

    Realtek ALC888S-VD2-GR

    以太网路

    控制器

    1 x Intel® I210AT PCIe (10/100/1000Mbps)
    1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Xeon/Core i7/i5 supports iAMT)

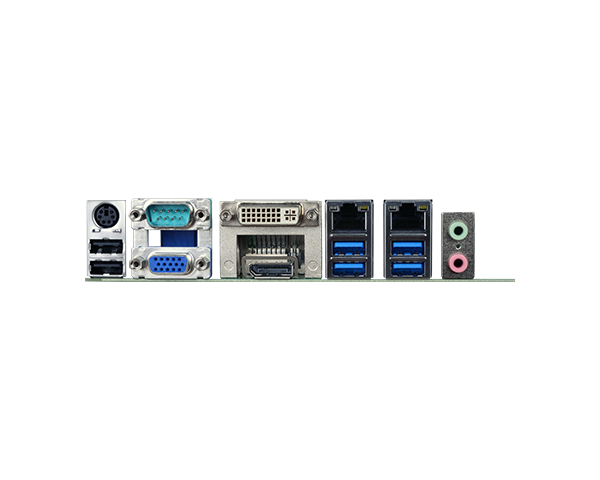

    背板输入/输出

    以太网络

    2 x GbE (RJ-45)

    串口

    1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

    USB

    4 x USB 3.1 Gen1
    2 x USB 2.0

    PS/2

    1 x PS/2 (mini-DIN-6)

    显示

    1 x VGA
    1 x DVI-I (DVI-D signal)
    1 x DP++

    音源

    1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)

    内部输入/输出

    串行端口

    1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
    4 x RS-232 (2.54mm pitch)

    USB

    2 x USB 3.1 Gen1
    4 x USB 2.0 + 1 x Vertical USB 2.0 (type A)

    音效

    1 x Front Audio Header
    1 x S/PDIF

    SATA

    5 x SATA 3.0 (up to 6Gb/s)
    (1 SATA shared with mini PCIe (SATA), default at mini PCIe/2 SATA shared with M.2, default at M.2)
    RAID 0/1/5/10

    DIO

    1 x 8-bit DIO

    LPC

    1 x LPC (supports LPC EXT-RS232/RS485 module)

    SMBus

    1 x SMBus

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    Infineon TPM1.2/2.0 (opt., MOQ required)

    电源

    类型

    ATX

    端口

    8-pin ATX 12V power
    24-pin ATX power

    耗能

    Typical: i7-7700: 3.3V @ 0.3422A (1.129Watt); 5V @ 0.5672A (2.836Watt); 12V @ 0.7255A (8.706Watt)
    Max.: i7-7700:3.3V @ 0.3254A (1.0738Watt); 5V @ 0.5636A (2.818Watt); 12V @ 10.583A (126.996Watt)

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    支持操作系统

    Windows 7 32/64-bit
    Window 8.1 64-bit
    Windows 10 64-bit
    Linux
    Note: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Linux.

    环境指标

    温度

    Operating: 0 to 60°C
    Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    537,588 hrs @ 25°C; 298,813 hrs @ 45°C; 184,762 hrs @ 60°C
    Calculation model: Telcordia Issue 4
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    ATX Form Factor
    305mm (12") x 244mm (9.6")

    高度

    PCB: 1.6mm
    Top Side: 37.35mm
    Bottom Side: 4.4mm

    安规认证

    认证

    CE, FCC Class B, RoHS
