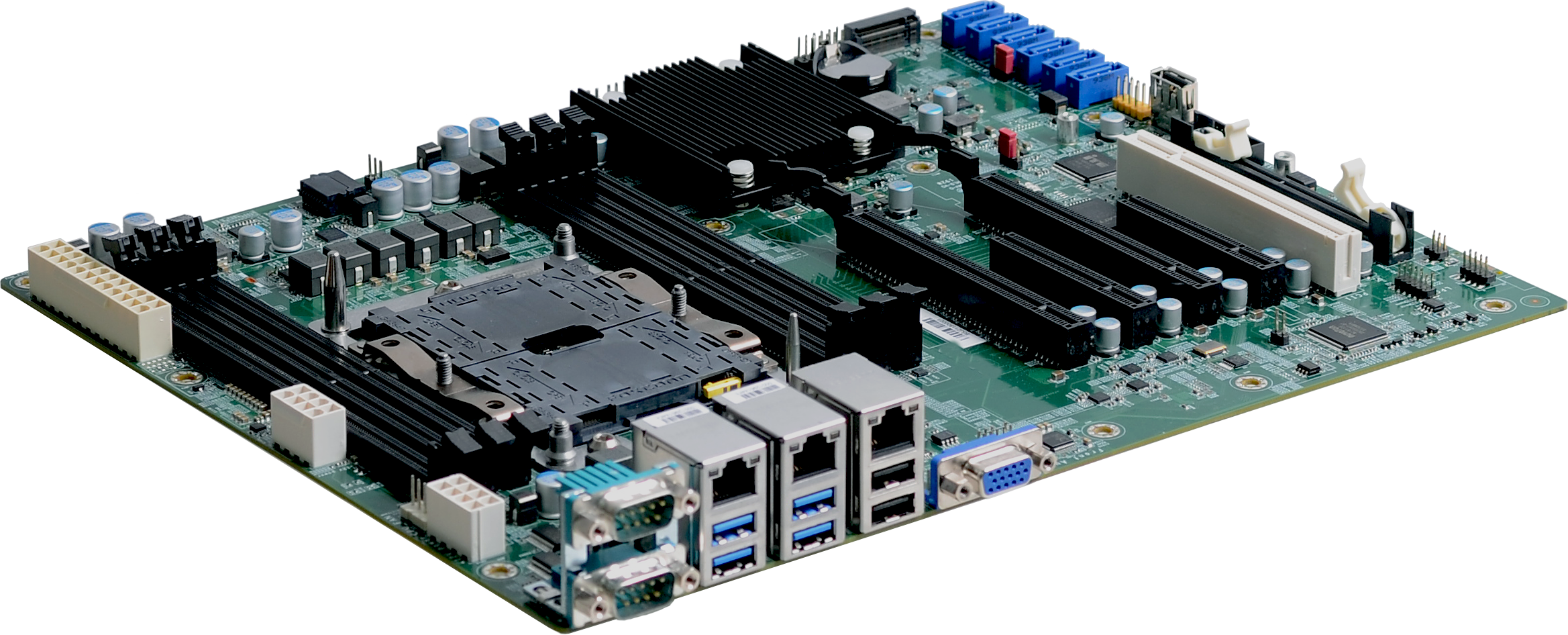

ATX工业主板-EBC-7032
★6 DDR4 ECC-RDIMM up to 384GB
★Rich I/O: 2 Intel GbE, 1 dedicated IPMI LAN, 2 COM, 6 SATA 3, 5 USB 2.0, 6 USB 3.1 Gen1
★Multiple expansion: 2 PCIe x16, 2 PCIe x8, 1 PCI, 1 M.2
★15-Year CPU Life Cycle Support Until Q3' 32 (Based on Intel IOTG Roadmap)
-
系统
处理器
1st Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
Intel® Xeon® Platinum 8160T (24 Cores, 27.5M Cache, up to 3.7 GHz); 150W
Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W
Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W
2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
Intel® Xeon® Gold 6252N (24 Cores, 35.75M Cache, up to 3.6 GHz); 150W
Intel® Xeon® Gold 6238T (22 Cores, 30.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6230T (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6230N (20 Cores, 27.5M Cache, up to 3.5 GHz); 125W
Intel® Xeon® Gold 6230 (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6226 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5220T (18 Cores, 24.75M Cache, up to 3.9 GHz); 105W
Intel® Xeon® Gold 5218T (16 Cores, 22M Cache, up to 3.8 GHz); 105W
Intel® Xeon® Gold 5218N (16 Cores, 22M Cache, up to 3.7 GHz); 110W
Intel® Xeon® Gold 5215 (10 Cores, 13.75M Cache, up to 3.4 GHz); 85W
Intel® Xeon® Silver 4216 (16 Cores, 22M Cache, up to 3.2 GHz); 100W
Intel® Xeon® Silver 4215 (8 Cores, 11M Cache, up to 3.5 GHz); 85W
Intel® Xeon® Silver 4214 (12 Cores, 16.5M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4210 (10 Cores, 13.75M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4209 (8 Cores, 11M Cache, up to 3.2 GHz); 70W芯片组
Intel® C621 Chipset
内存
Six 288-pin ECC-RDIMM up to 384GB
Single Channel DDR4 up to 2933 MHZ
Support Optane DC persistent memory module(DCPMM) in DIMM3 and DIMM6 (2nd Gen Xeon Scalable (62xx/52xx/ 4215) processors only)BIOS
Insyde SPI 128Mbit
显示
显示器
1 x VGA (only with SEM2500/SEM2510)
单显示
VGA (only with SEM2500/SEM2510)
扩充
界面
2 x PCIe x16 (Gen 3)
2 x PCIe x8 (Gen 3)
1 x PCI
1 x DDR4 SO-DIMM for SEM2500/2510 (opt.)
1 x M.2 M key 2280 (SATA/PCIe Gen3 x4 NVMe)
*Note: PCIe x8 slot is OPEN edge.音讯
音讯编译码器
ALC887
以太网路
控制器
2 x Intel® I210AT PCIe (10/100/1000Mbps)
IPMI: 1 x RTL8211F (only with SEM2500)背板输入/输出

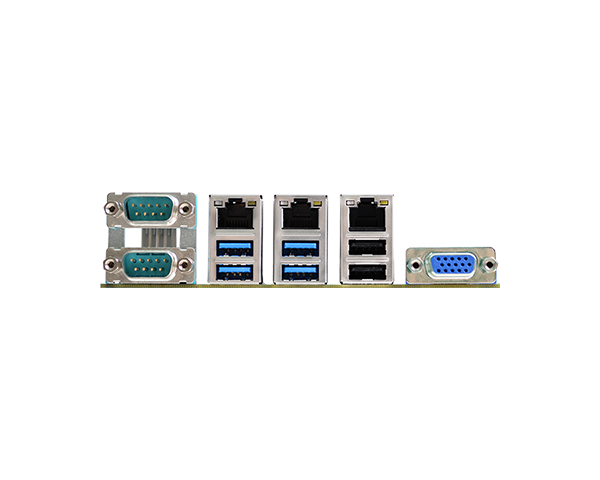

以太网络
2 x GbE (RJ-45)
1 x dedicated IPMI LAN (only with SEM2500)USB
4x USB 3.1 Gen1
2x USB 2.0 stack显示
1 x VGA (only with SEM2500/SEM2510)
内部输入/输出
串行端口
2 x RS-232 (DB-9)
USB
2x USB 2.0 header (2x USB 2.0)
1x USB 2.0 vertical Type A
1x USB 3.1 Gen1 header (2x USB 3.1 gen1)SATA
6 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 sec/Min
安全性
信赖平台模块
TPM 2.0 (opt.)
电源
类型
ATX
端口
8-pin ATX 12V power
24-pin ATX power耗能
Typical: 5120T: 3.3V @ 0.42A (1.386Watt); 5V @2.33A (11.65Watt); 12V @ 2.34A (28.08Watt)
Max.: 5120T:3.3V @ 0.43A (1.419Watt); 5V @ 2.4A (12.0Watt); 12V @ 12.51A (150.12Watt)RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统
Windows 10 IoT Enterprise LTSB RS5 (64-bit)
Windows Server 2012R2
Windows Server 2016
Linux环境指标
温度
Operating: 0 to 60°C
Storage: -40 to 85°C湿度
Operating: 5 to 90% RH, Non-condensing
Storage: 5 to 90% RH, Non-condensingMTBF
493,780 hrs @ 25°C; 290,407 hrs @ 45°C ; 187,006 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled机械结构
尺寸
ATX Form Factor
305mm (12") x 244mm (9.6")高度
PCB: 1.6mm
Top Side: 31.6mm
Bottom Side: 4mm -
-
