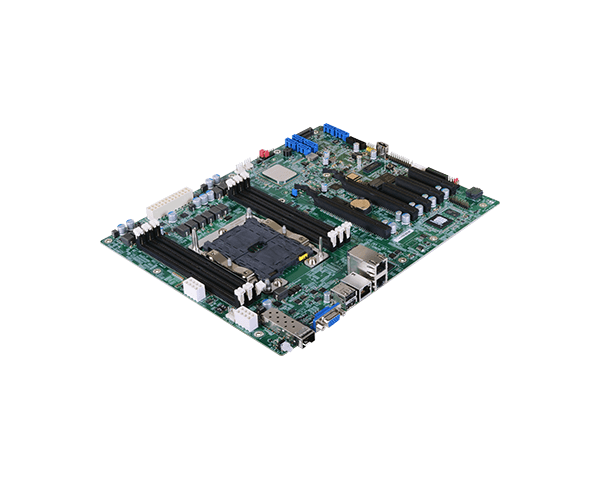

ATX工业主板-EBC-7031
★6 DDR4 ECC-RDIMM up to 384GB
★VGA resolution up to 1920x1200 @ 60Hz
★Multiple expansion: 2 PCIe x16, 1 PCIe x8, 2 PCIe x4, 1 M.2
★Rich I/O: 2 Intel GbE, 1 dedicated IPMI LAN, 1x Fiber 10 GbE, 1 COM, 6 SATA 3.0, 5 USB 2.0, 2 USB 3.0
★15-Year CPU Life Cycle Support Until Q3' 32 (Based on Intel IOTG Roadmap)
-
系统
处理器
Intel® Xeon® Scalable Processor Family, LGA 3647 Socket, TDP up to 145W
Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W
Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W芯片组
Intel® C622 Chipset
内存
Six 288-pin ECC-RDIMM up to 384GB
DDR4 1600/1866/2133/2400/2666 MHzBIOS
Insyde SPI 128Mbit
显示
显示器
1 x VGA
单显示/双重显示
VGA
扩充
界面
2 x PCIe x16 (Gen 3)
1 x PCIe x8 (Gen 3)
2 x PCIe x4 (Gen 3)
1 x M.2 2280 M key (PCIe Gen3 x 4 NVMe/SATA)
*Note: PCIe x8 slot is OPEN edge.音讯
音讯编译码器
N/A
以太网路
控制器
GbE: i350-AM2
10GbE: CS4227
IPMI: RTL8211F背板输入/输出
以太网络
2 x GbE (RJ-45)
1 x dedicated IPMI LAN
1x Fiber 10 GbEUSB
2 x USB 2.0
PS/2
1 x PS/2 (mini-DIN-6)
显示
1 x VGA
内部输入/输出
串行端口
1 x RS-232 (2.54mm pitch)
USB
2 x USB 2.0 (2.54mm pitch)
1 x Vertical USB 2.0
2 x USB 3.0SATA
6 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Infineon TPM 2.0 (optional)
电源
类型
ATX
端口
8-pin ATX 12V power 24-pin ATX power
耗能
Typical: 5120T: 3.3V @ 0.42A (1.386Watt); 5V @2.33A (11.65Watt); 12V @ 2.34A (28.08Watt)
Max.: 5120T:3.3V @ 0.43A (1.419Watt); 5V @ 2.4A (12.0Watt); 12V @ 12.51A (150.12Watt)RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统
Windows 10 IoT Enterprise LTSB RS1(64-bit)
Windows Server 2012R2
Windows Server 2016
Linux环境指标
温度
Operating: 0 to 60°C
Storage: -40 to 85°C湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RHMTBF
493,780 hrs @ 25°C; 290,407 hrs @ 45°C ; 187,006 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled机械结构
尺寸
ATX Form Factor 305mm (12") x 244mm (9.6")
高度
PCB: 1.6mm
Top Side: 31.6mm
Bottom Side: 4mm -
-
