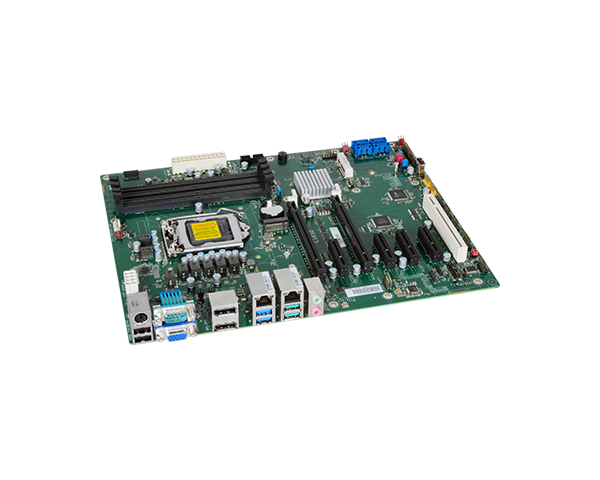

ATX工业主板-EBC-7027

★8th/9th Gen Intel® Core™ with Intel® C246
★4 DDR4 ECC/Non-ECC DIMM up to 128GB
★3 independent displays: VGA + DP++ + DP++
★DP++ resolution up to 4096x2160 @ 60Hz
★Multiple expansion: 2 PCIe x16 (1 x16 signal or 2 x8 signals), 3 PCIe x4, 1 PCIe x1, 1 PCI, 1 Full-sized Mini PCIe, 1 M.2 M key
★Rich I/O: 2 Intel GbE, 6 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 6 USB 2.0
★15-Year CPU Life Cycle Support Until Q4' 33 (Based on Intel IOTG Roadmap)
ꄴ上一个： ATX工业主板-EBC-7028
ꄲ下一个： ATX工业主板-EBC-7026

  • 系统



    处理器

    8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors, TDP support up to 95W:
    Intel® Xeon® E-2176G (6 Cores, 12M Cache, up to 4.7 GHz); 80W
    Intel® Xeon® E-2124G (4 Cores, 8M Cache, up to 4.5 GHz); 71W
    Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
    Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
    Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
    Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
    Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
    Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
    Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
    Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
    Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
    Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W

    9th Generation Intel® Core™/Xeon® LGA 1151 Socket Processors, TDP support up to 95W:
    Intel® Xeon® E-2278GE (8 Cores, 16M Cache, up to 4.7 GHz); 80W
    Intel® Xeon® E-2278GEL (8 Cores, 16M Cache, up to 3.9 GHz); 35W
    Intel® Xeon® E-2226GE (6 Cores, 12M Cache, up to 4.6 GHz); 80W
    Intel® Core™ i7-9700E (8 Cores, 12M Cache, up to 4.4 GHz); 65W
    Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W
    Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
    Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W
    Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W
    Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W

    芯片组

    Intel® C246 Chipset

    内存

    Four 288-pin Non-ECC DIMM up to 128GB (Core™ i5/i7 only support non-ECC)
    Dual Channel DDR4 2400/2666MHz

    BIOS

    AMI SPI 128Mbit

    显示

    控制器

    Intel® HD Gen 9 Graphics

    特性

    OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

    显示器

    1 x VGA, VGA: resolution up to 1920x1200 @ 60Hz
    2 x DP++, DP++: resolution up to 4096x2160 @ 60Hz

    三重显示

    VGA + DP++ + DP++

    扩充

    界面

    2 x PCIe x16 (Gen 3) (1 x16 signal or 2 x8 signals)
    3 x PCIe x4 (Gen 3)
    1 x PCIe x1 (Gen 3)
    1 x PCI
    1 x Full-sized Mini PCIe (PCIe/SATA/USB2.0), share with SATA 3(R5)
    1 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/SATA)

    音讯

    音讯编译码器

    Realtek ALC888

    以太网路

    控制器

    1 x Intel® I210AT PCIe (10/100/1000Mbps)
    1 x Intel® I219LM PCIe with iAMT12.0 (10/100/1000Mbps) (only Xeon, Core i7/i5 supports iAMT)

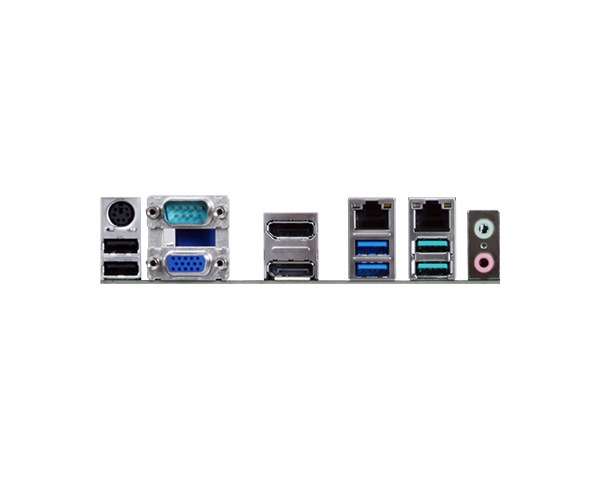

    背板输入/输出

    以太网络

    2 x GbE (RJ-45)

    串口

    1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

    USB

    2 x USB 3.1 Gen2
    2 x USB 3.1 Gen1
    2 x USB 2.0

    PS/2

    1 x PS/2 (mini-DIN-6)

    DIO

    1 x 8-bit DIO

    显示

    1 x VGA
    2 x DP++

    音源

    1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)

    内部输入/输出

    串行端口

    1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
    4 x RS-232 (2.54mm pitch)

    USB

    2 x USB 3.1 Gen 1 (2.00mm pitch)
    4 x USB 2.0 (2.54mm pitch) (1 x USB 2.0 colay vertical Type A) (opt., MOQ required)

    音效

    1 x Front Audio Header
    1 x S/PDIF

    SATA

    4 x SATA 3.0 (up to 6Gb/s, SATA 3(R5) shared with mini PCIe (SATA), default at mini PCIe)
    RAID 0/1/5/10

    LPC

    1 x LPC (supports LPC EXT-RS232/RS485 module)

    SMBus

    1 x SMBus

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    Infineon TPM2.0 (opt., MOQ required)

    电源

    类型

    ATX

    端口

    8-pin ATX 12V power 24-pin ATX power

    耗能

    Typical: i7-8700K: 3.3V @ 0.34A (1.122Watt); 5V @ 0.58A (2.9Watt); 12V @ 0.65A (7.8Watt)
    Max.: i7-8700K:3.3V @ 0.52A (1.716Watt); 5V @ 1.27A (6.35Watt); 12V @ 13.01A (156.12Watt)

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    支持操作系统

    Windows 10 IoT Enterprise 64-bit
    Linux

    环境指标

    温度

    Operating: -5 to 65°C
    Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery

    湿度

    Operating: 5 to 95% RH
    Storage: 5 to 95% RH

    MTBF

    534,017 hrs @ 25°C; 298,488 hrs @ 45°C ; 184,547 hrs @ 60°C ; 133,068 hrs @ 70°C
    Calculation Model: Telcordia Issue 4
    Environment: GB, GC - Ground Benign, Controlled

    机械结构

    尺寸

    ATX Form Factor
    305mm (12") x 244mm (9.6")

    高度

    PCB: 1.6mm
    Top Side: 32mm Bottom Side: 4.4mm

    安规认证

    认证

    CE, FCC Class B, RoHS, KC, UL
