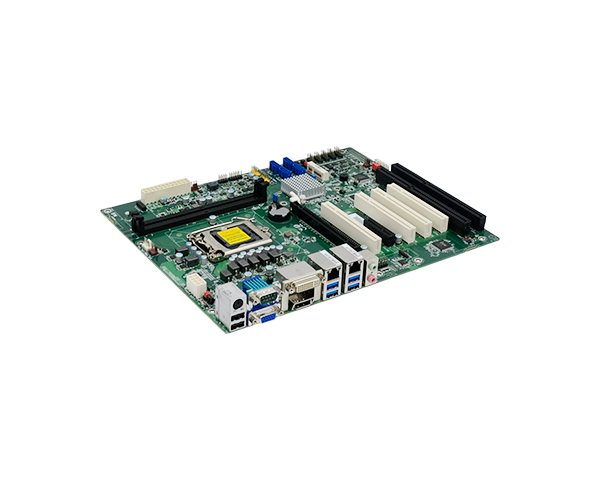

ATX工业主板-EBC-7023
★2 DDR4 DIMM up to 64GB
★Two independent displays: VGA + DVI-D / VGA + DP++ / DP++ + DVI-D
★Multiple expansion: 1 PCIe x16 (Gen 3), 1 PCIe x4 Gen 2 (PCIe x1 signal), 4 PCI, 2 ISA
★Rich I/O: 2 Intel GbE, 6 COM, 4 USB 3.1 Gen1, 6 USB 2.0
★15-Year CPU Life Cycle Support Until Q4' 33 (Based on Intel IOTG Roadmap)
-
系统
处理器
9th Generation Intel® Core™ LGA 1151 Socket Processors, TDP support up to 95W:
Intel® Core™ i7-9700E (8 Cores, 12M Cache, up to 3.8 GHz); 65W
Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W
Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 4.2 GHz); 65W
Intel® Core™ i3-9100E (4 Cores, 6M Cache, to 3.2 GHz); 65W
Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 65W
8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors, TDP support up to 95W:
Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W芯片组
Intel® H310 Chipset
内存
Two 288-pin UDIMM up to 64GB (non-ECC support)
Dual Channel DDR4 2400/2666MHzBIOS
AMI SPI 128Mbit
显示
控制器
Intel® HD Gen 9 Graphics
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9显示器
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
DVI-D: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz双重显示
VGA + DVI-D / VGA + DP++ / DP++ + DVI-D
扩充
界面
1 x PCIe x16 (Gen 3)
1 x PCIe x4 Gen2 (PCIe x1 signal)
4 x PCI
2 x ISA音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
1 x Intel® I210AT PCIe (10/100/1000Mbps)

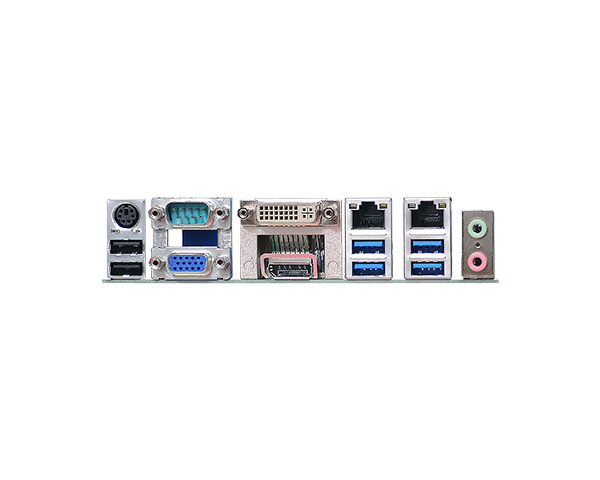

1 x Intel® I219V Lan Phy (10/100/1000Mbps)背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x RS-232/422/485 (RS-232 w/power) (DB-9)
USB
4 x USB 3.1 (Gen1)
2 x USB 2.0PS/2
1 x PS/2 (mini-DIN-6)
显示
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++音源
1 x Mic-in, 1 x Line-out (colay Line-in as opt., MOQ required)
内部输入/输出
串行端口
1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)USB
4 x USB 2.0 (2.54mm pitch) (one header colay USB 3.0 vertical Type A as opt., MOQ required)
音效
1 x S/PDIF
1 x Front Audio HeaderSATA
4 x SATA 3.0 (up to 6Gb/s)
1 x mSATA shared with SATA (opt: PCIe x1 signal, MOQ required)DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
TPM2.0 (opt., MOQ required)
电源
类型
ATX
端口
8-pin ATX 12V power
24-pin ATX power耗能
Typical: i7-8700K: 3.3V @ 0.27A (0.89W); 5V @ 0.49A (2.45W); 12V @ 0.38A (4.56W)
Max.: i7-8700K: 3.3V @ 0.33A (1.08W); 5V @ 1.2A (6W); 12V @ 9.69A (116.28W)RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统
Windows 10 IoT Enterprise 64-bit
DFI proprietary software package (For ISA SKU)环境指标
温度
Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RHMTBF
553,534 hrs @ 25°C; 313,827 hrs @ 45°C ; 196,350 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled机械结构
尺寸
ATX Form Factor
305mm (12") x 244mm (9.6")高度
PCB: 1.6mm
Top Side: 32mm
Bottom Side: 5mm安规认证
认证
CE, FCC Class B, RoHS, UKCA
-
-
