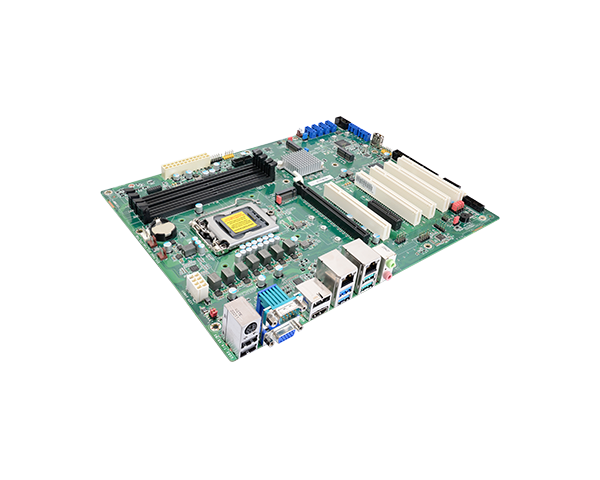

ATX工业主板-EBC-7020
★Q470E: 2 DDR4 UDIMM up to 128GB / H420E: 2 DDR4 UDIMM up to 64GB
★Multiple Displays: Q470E: VGA + DP++ + HDMI / H420E: VGA + DP++, VGA + HDMI, DP++ + HDM
★Supports 4K/ 2K resolution
★Multiple Expansion: 1 PCIe x16, 1 PCIe x4, 5 PCI, 1 M.2 M key, 1 M.2 E key
★Rich I/O: 2 Intel GbE, 6 COM, Q470E: 13 USB / H420E: 10 USB
★15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)
-
系统
处理器
10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 125W
Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W
Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W
Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W
Intel® Core™ i3-10100E (4 Cores, 8M Cache, up to 3.8 GHz); 65W
Intel® Core™ i3-10100TE (4 Cores, 8M Cache, up to 3.6 GHz); 35W
Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W
Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W
Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W芯片组
Intel® Q470E/H420E Chipset
内存
Q470E
Four 288-pin Non-ECC UDIMM up to 128GB
H420E
Two 288-pin Non-ECC UDIMM up to 64GB
Dual Channel DDR4 2400/2666/2933MHz
BIOS
AMI
显示
控制器
Intel® HD Gen 9 Graphics
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9显示器
1 x VGA, VGA: resolution up to 1920x1200 @ 60Hz
1 x DP++, DP++: resolution up to 4096x2160 @ 60Hz
1 x HDMI 1.4b, HDMI: resolution up to 4096x2160 @ 24Hz多重显示
Q470E
VGA + DP++ + HDMI
H420E
VGA + DP++ / VGA + HDMI / DP++ + HDMI
扩充
界面
1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 3)
5 x PCI
Q470E
1 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/SATA/Intel® Optane Memory support)
1 x M.2 2242/2260/2280 M key (PCIe Gen3 x1/SATA as option, MOQ required)
1 x M.2 2230 E key (PCIe Gen3 x2/USB 2.0 as option, MOQ required)
H420E
1 x M.2 2242/2260/2280 M key (SATA as option, MOQ required)
音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
1 x Intel® I210AT PCIe (10/100/1000Mbps)

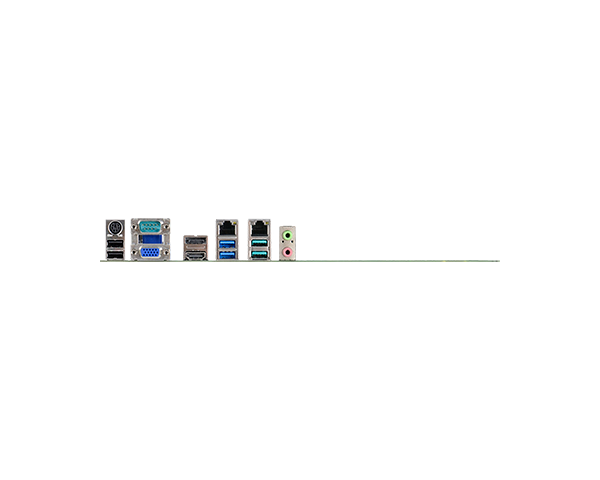

1 x Intel® I219LM/I219V with iAMT12.0 (10/100/1000Mbps) (only Q470E Core i9/ i7/i5 supports iAMT)背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
Q470E
2 x USB 3.2 Gen2
2 x USB 3.2 Gen1
2 x USB 2.0
H420E
4 x USB 3.2 Gen1
2 x USB 2.0
显示
1 x VGA
1 x DP++
1 x HDMI音源
1 x Line-out
1 x Mic-in
1 x Line-in (opt., MOQ required)内部输入/输出
串行端口
1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)USB
Q470E
2 x USB 3.2 Gen 1
4 x USB 2.0 (2.54mm pitch, colay vertical Type A, opt.: MOQ required)
1 x USB 2.0 vertical Type A
H420E
2 x USB 3.2 Gen 1
2 x USB 2.0 (2.54mm pitch, colay vertical Type A, opt.: MOQ required)
音效
1 x Front Audio Header
1 x S/PDIFSATA
Q470E
6 x SATA 3.0 (up to 6Gb/s)
one SATA port share with M.2 M-key
RAID 0/1/5/10
H420E
4 x SATA 3.0 (up to 6Gb/s)
one SATA port share with M.2 M-key
DIO
1 x 16-bit DIO
LPC
1 x LPC
Supports LPC EXT-RS232/RS485 moduleSMBus
1 x SMBus
PS/2
1 x PS/2 (mini-DIN-6)
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Infineon TPM2.0 (opt., MOQ required)
电源
类型
ATX
端口
8-pin ATX 12V power
24-pin ATX power耗能
Typical: i9-10900K: 3.3V @ 0.13A (0.429W); 5V @ 0.7A (3.5W); 12V @ 0.44A (5.28W)
Max.: i9-10900K: 3.3V @ 0.18A (0.594W); 5V @ 1.59A (7.95W); 12V @ 14.22A (170.64W)RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Linux
Linux Ubuntu 20.04
环境指标
温度
Operating: -5 to 65°C
Storage: -40 to 85°C湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RHMTBF
Q470E
504,168 hrs @ 25°C ; 278,849 hrs @ 45°C ; 172,277 hrs @ 60°C ; 146,454 hrs @ 65°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled
H420E
521,024 hrs @ 25°C ; 292,119 hrs @ 45°C ; 181,960 hrs @ 60°C ; 155,038 hrs @ 65°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled
机械结构
尺寸
ATX Form Factor
305mm (12") x 244mm (9.6")高度
PCB: 1.6mm
Top Side: 37.7mm, Bottom Side: 3mm安规认证
认证
CE, FCC Class B, RoHS, UKCA
-
-
