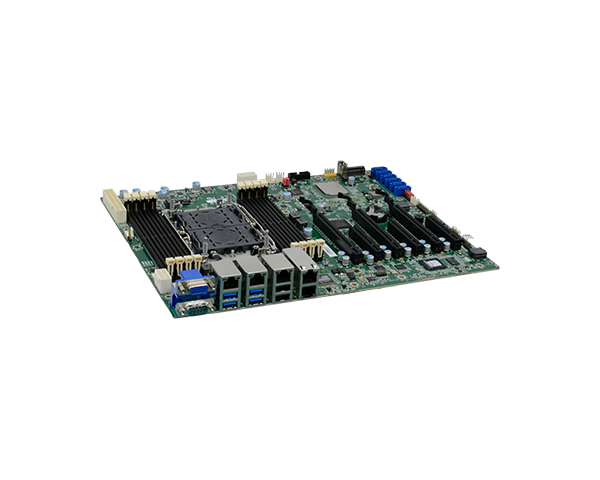

ATX工业主板-EBC-7019

★3rd Gen Intel® Xeon® Scalable Processor Family
★8 ECC-RDIMM up to 512GB
★2 x 10GbE
★IPMI OOB Remote Management
★Single Display: VGA resolution up to 1920x1200 @ 60Hz
★Multiple Expansion: 3 PCIe x16, 2 PCIe x8, 1 x M.2 M key
★Rich I/O: 2 Intel GbE, 1 Dedicated IPMI, 2 COM, 6 USB 3.1 Gen1, 5 USB 2.0
★15-Year CPU Life Cycle Support Until Q2' 36 (Based on Intel IOTG Roadmap)
ꄴ上一个： ATX工业主板-EBC-7020
ꄲ下一个： ATX工业主板-EBC-7018

  • 系统



    处理器

    3rd Gen Intel® Xeon® Scalable Processor Family, LGA 4189 (Socket P+)
    Intel® Xeon® Gold 6338N ( 32 Cores, 48 MB Cache, up to 3.50 GHz )
    Intel® Xeon® Gold 6338T ( 24 Cores, 36 MB Cache, up to 3.40 GHz )
    Intel® Xeon® Gold 6336Y ( 24 Cores, 36 MB Cache, up to 3.60 GHz )
    Intel® Xeon® Gold 6330 ( 28 Cores, 42 MB Cache, up to 3.10 GHz )
    Intel® Xeon® Gold 6330N ( 28 Cores, 42 MB Cache, up to 3.40 GHz )
    Intel® Xeon® Gold 6326 ( 16 Cores, 24 MB Cache, up to 3.50 GHz )
    Intel® Xeon® Gold 6314U ( 32 Cores, 48 MB Cache, up to 3.40 GHz )
    Intel® Xeon® Gold 6312U ( 24 Cores, 36 MB Cache, up to 3.60 GHz )
    Intel® Xeon® Gold 5320T ( 20 Cores, 30 MB Cache, up to 3.50 GHz )
    Intel® Xeon® Gold 5318N ( 24 Cores, 36 MB Cache, up to 3.40 GHz )
    Intel® Xeon® Gold 5318Y ( 24 Cores, 36 MB Cache, up to 3.40 GHz )
    Intel® Xeon® Gold 5317 ( 12 Cores, 18 MB Cache, up to 3.60 GHz )
    Intel® Xeon® Gold 5315Y ( 8 Cores, 12 MB Cache, up to 3.60 GHz )
    Intel® Xeon® Silver 4316 ( 20 Cores, 30 MB Cache, up to 3.40 GHz )
    Intel® Xeon® Silver 4314 ( 16 Cores, 24 MB Cache, up to 3.40 GHz )
    Intel® Xeon® Silver 4310 ( 12 Cores, 18 MB Cache, up to 3.30 GHz )
    Intel® Xeon® Silver 4310T ( 10 Cores, 15 MB Cache, up to 3.40 GHz )

    芯片组

    Intel® C621A Chipset

    内存

    8 x 288-pin ECC-RDIMM up to 512GB
    Single Channel DDR4 up to 3200 MHZ

    BIOS

    Insyde SPI 128Mbit

    显示

    控制器

    BMC AST2500

    显示器

    1 x VGA
    VGA: resolution up to 1920x1200 @ 60Hz

    单显示

    VGA

    扩充

    界面

    1 x M.2 2280 M key (SATA/PCIe Gen3 x4 NVMe)
    3 x PCIe x16 Gen4 slot (#1/#3/#5), 3 x PCIe x8 Gen4 slot (#2/#4/#6)
    *Note: PCIe#1#2 can be auto detected as (x16/0) or (x8/x8)
    *Note: PCIe x8 slot is OPEN edge.

    音讯

    音讯编译码器

    ALC888S

    以太网路

    控制器

    2 x Intel® I210AT PCIe (10/100/1000Mbps)
    2 x Intel® X550-AT2 PCIe (10Gbps)
    IPMI: RTL8211F

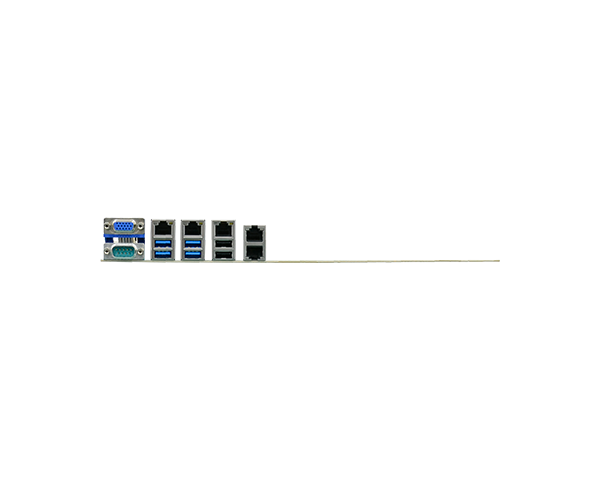

    背板输入/输出

    以太网络

    2 x GbE (RJ-45)
    2 x 10GbE (RJ-45)
    1 x Dedicated IPMI LAN

    串口

    1 x RS-232 (DB-9)

    USB

    4 x USB 3.1 Gen1 (w/ RJ45 + USB 3.1 stack)
    2 x USB 2.0 (w/ RJ45 + USB 2.0 stack)

    显示

    1 x VGA (DB-15)

    内部输入/输出

    串行端口

    1 x RS-232 (2x5-pin)

    USB

    2 x USB 3.1 Gen1
    2 x USB 2.0
    1 x USB 2.0 Vertical Type A

    音效

    1 x Front Audio Header

    SATA

    6 x SATA 3.0 (up to 6Gb/s)
    RAID 0/1/5/10

    DIO

    1 x 16-bit DIO

    LPC

    1 x LPC

    SMBus

    1 x SMBus

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    Infineon TPM2.0

    电源

    类型

    ATX

    端口

    8-pin ATX 12V CPU power
    24-pin ATX power

    耗能

    TBD

    电池

    CR2032 Coin Cell

    支持操作系统

    微软

    Windows 10 IoT Enterprise LTSB RS5(64-bit)
    Windows Server 2019

    Linux

    Ubuntu 20.04

    环境指标

    温度

    Operating: 0 to 55°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH, Non-condensing
    Storage: 5 to 90% RH, Non-condensing

    MTBF

    TBD

    机械结构

    尺寸

    ATX Form Factor 305mm (12") x 244mm (9.6")

    高度

    PCB: 1.6mm
    Top Side: 37.34mm

    安规认证

    认证

    CE, FCC, RoHS, UKCA
