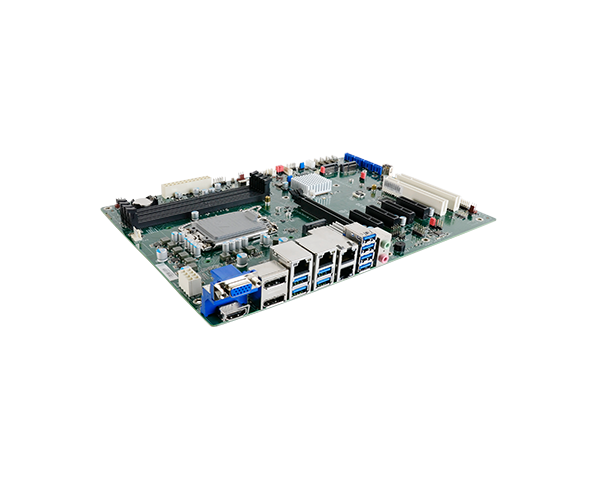

ATX工业主板-EBC-7018
★4 DDR4 UDIMM up to 128GB
★Quad Displays: VGA + 2 x DP++ + HDMI
★Supports 4K resolution
★Multiple Expansion: 1 PCIe x16(Gen 5), 4 PCIe x4(Gen 4), 2 PCI, 2 M.2 M key, 1 M.2 E Key
★Rich I/O: 2 Intel 10GbE, 2 Intel 2.5GbE, USB 3.2 Gen 2 (R680E 6x, Q670E 4x), USB 3.2 Gen1 (R680E 4x, Q670E 6x), USB 2.0 3x
★Typically supports 10-Year CPU Life Cycle Until Q1’ 32 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.
-
系统
处理器
14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 2.0 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 1.1 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 2.1 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 1.3 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 2.6 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 1.7 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 2.5 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 1.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 3.5 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 2.7 GHz); 35W
Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W
Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W
13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W
12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W芯片组
Intel® R680E/Q670E Chipset
内存
Four 288-pin UDIMM up to 128GB
Dual Channel DDR4 3200 MHz (ECC support: R680E only)BIOS
AMI SPI 256Mbit
显示
控制器
Intel® UHD Graphics 700 series
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9显示器
1 x VGA, resolution up to 1920x1200 @ 60Hz
2 x DP++, resolution up to 4096x2304 @ 60Hz
1 x HDMI 2.0a, resolution up to 4096x2160 @ 24Hz四重显示
VGA + 2 x DP++ + HDMI
扩充
界面
1 x PCIe x16 (Gen 5)
4 x PCIe x4 (Gen 4)
2 x PCI
1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi/Wifi 6E as option, MOQ required)
1 x M.2 2242/2260/2280 M key (PCIe x4 NVMe share with PCIe x4 slot#2 as optional, MOQ required)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen3 NVMe/Intel Optane Memory support)音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
1 x Intel® I226-LM PCIe (10M/100M/1000Mbps/2.5G) (only Xeon, Core i9/i7/i5 support iAMT)
1 x Intel® I226-V PCIe (10M/100M/1000Mbps/2.5G)
2 x Intel® x550-AT2 (10 GBASE-T/1 GbE/100 Mbps) (R680E only, no support WOL)背板输入/输出
以太网络
2 x 2.5GbE
2 x 10GbEUSB
4 x USB 3.2 Gen2
4 x USB 3.2 Gen1显示
1 x VGA
2 x DP++
1 x HDMI 2.0a音源
1 x Line-out
1 x Mic-in
1 x Line-in (opt. by request, MOQ required)内部输入/输出
串行端口
2 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)USB
2 x USB 3.2 Gen2 Key B box header (R680E Gen2 ; Q670E Gen1)
2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
1 x USB 2.0 Vertical Type A音效
1 x Front Audio Header
1 x S/PDIFSATA
4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10DIO
1 x 8-bit DIO
SMBus
1 x SMBus
PS/2
1 x PS/2 (2.54mm pitch)
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Nuvoton TPM2.0
电源
类型
ATX
端口
8-pin ATX 12V power
24-pin ATX power耗能
Typical: i9-13900K: 3.3V @ 0.39A (1.29W); 5V @ 2.25A (11.25W); 12V @ 1.61A (19.32W)
Max.: i9-13900K: 3.3V @ 1.31A (4.32W); 5V @ 4.46A (22.3W); 12V @ 28.55A (342.6W)RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Windows 11 EnterpriseLinux
Linux
环境指标
温度
Operating: -5°C ~ 65°C
Storage: -30°C ~ 60°C with RTC Battery; -40°C ~ 85°C without RTC Battery湿度
Operating: 5% ~ 95% RH
Storage: 5% ~ 95% RHMTBF
469,341 hrs @ 25°C; 259,388 hrs @ 45°C; 160,192 hrs @ 60°C; 115,630 hrs @ 70°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled机械结构
尺寸
ATX Form Factor
305mm (12") x 244mm (9.6")高度
PCB: 1.6mm
Top Side: 33.3mm, Bottom Side: 4mm安规认证
认证
CE, FCC Class B, UKCA, RoHS
-
-
