ATX工业主板-EBC-7017

★10th Gen Intel® Core Processors
★4 DDR4 UDIMM up to 128GB
★Triple Displays: VGA + DP++ + HDMI
★Supports 4K/ 2K resolution
★Multiple Expansion: 2 PCIe x16, 4 PCIe x4, 1 PCI, 2 M.2 M key, 1 M.2 E Key
★Rich I/O: 2 Intel GbE, 4 USB 3.2 Gen2, 2 USB 3.2 Gen1, 7 USB 2.0
★15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)
ꄴ上一个： ATX工业主板-EBC-7018
ꄲ下一个： ATX工业主板-EBC-7016

  • 系统



    处理器

    10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 125W
    Intel® Xeon® W-1290E (10 Cores, 20M Cache, up to 4.8 GHz); 95W (ECC support on W480E SKU only)
    Intel® Xeon® W-1290TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W (ECC support on W480E SKU only)
    Intel® Xeon® W-1270E (8 Cores, 16M Cache, up to 4.8 GHz); 80W (ECC support on W480E SKU only)
    Intel® Xeon® W-1270TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W (ECC support on W480E SKU only)
    Intel® Xeon® W-1250E (6 Cores, 12M Cache, up to 4.7 GHz); 80W (ECC support on W480E SKU only)
    Intel® Xeon® W-1250TE (6 Cores, 12M Cache, up to 3.8 GHz); 35W (ECC support on W480E SKU only)
    Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W
    Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W
    Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W
    Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W
    Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W
    Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W
    Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz,); 65W (ECC support on SKU W480E only)
    Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W (ECC support on SKU W480E only)
    Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W (Not support on W480E SKU)
    Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W (Not support on W480E SKU)
    Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W (Not support on W480E SKU)

    芯片组

    Intel® W480E/Q470E Chipset

    内存

    Four 288-pin Non-ECC UDIMM up to 128GB (Core™ i5/i7 only support non-ECC)
    Dual Channel DDR4 2400/2666/2933MHz (ECC support: W480E only)

    BIOS

    AMI SPI 128Mbit

    显示

    控制器

    Intel® HD Gen 9 Graphics

    特性

    OpenGL 4.5, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

    显示器

    1 x VGA
    1 x DP++
    1 x HDMI 1.4b
    VGA: resolution up to 1920x1200 @ 60Hz
    DP++: resolution up to 4096x2160 @ 60Hz
    HDMI: resolution up to 4096x2160 @ 24Hz

    三重显示

    VGA + DP++ + HDMI

    扩充

    界面

    2 x PCIe x16 (Gen 3) (1 x16 signal or 2 x8 signal)
    4 x PCIe x4 (Gen 3) (2 PCIe x4 co-lay M.2 M Key, function selected by jumper.)
    1 x PCI
    1 x M.2 2242/2260/2280 M Key (PCIe Gen3 x4 NVMe/SATA/Intel® RST support) (co-lay PCIe x4 slot#5 , function selected by jumper.)
    1 x M.2 2242/2260/2280 M Key (PCIe Gen3 x4 NVMe/Intel® RST support) (co-lay PCIe x4 slot#6 , function selected by jumper.)
    1 x M.2 2230 E Key (USB 2.0/PCIe x1) (opt.)

    音讯

    音讯编译码器

    Realtek ALC888

    以太网路

    控制器

    1 x Intel® I210AT PCIe (10/100/1000Mbps)
    1 x Intel® I219LM PHY with iAMT12.0 (10/100/1000Mbps) (only Xeon, Core i9/ i7/i5 supports iAMT)

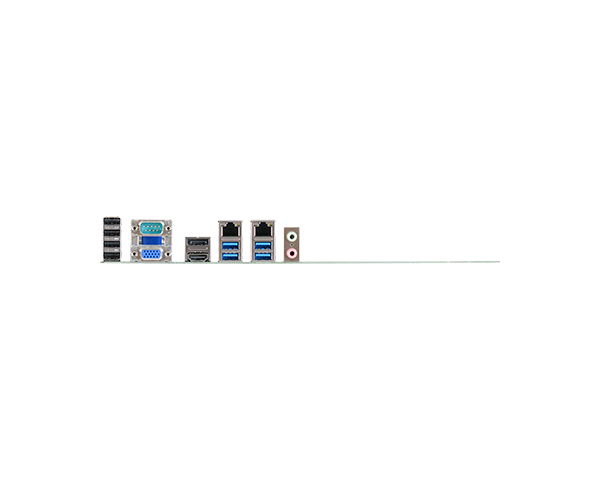

    背板输入/输出

    以太网络

    2 x GbE (RJ-45)

    串口

    1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

    USB

    2 x USB 3.2 Gen2
    2 x USB 3.2 Gen1
    4 x USB 2.0

    显示

    1 x VGA
    1 x DP++
    1 x HDMI

    音源

    1 x Line-out
    1 x Mic-in
    1 x Line-in (opt., MOQ required)

    内部输入/输出

    串行端口

    1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
    4 x RS-232 (2.54mm pitch)

    USB

    2 x USB 3.2 Gen 2 (Key B 20-pin)
    2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
    1 x USB 2.0 Vertical Type A

    音效

    1 x Front Audio Header
    1 x S/PDIF

    SATA

    4 x SATA 3.0 (up to 6Gb/s, SATA 3)
    RAID 0/1/5/10

    DIO

    1 x 16-bit DIO

    LPC

    1 x LPC (supports LPC EXT-RS232/RS485 module)

    SMBus

    1 x SMBus

    PS/2

    1 x PS/2 (mini-DIN-6)

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    NUVOTON TPM2.0 (opt., MOQ required)

    电源

    类型

    ATX

    端口

    8-pin ATX 12V power
    24-pin ATX power

    耗能

    Typical: i9-10900K: 3.3V @ 0.17A (0.56W); 5V @ 0.74A (3.7W); 12V @ 0.41A (4.92W)
    Max.: i9-10900K:3.3V @ 0.21A (0.69W); 5V @ 1.73A (8.65W); 12V @ 12.48A (149.76W)

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    微软

    Windows 10 IoT Enterprise 64-bit
    Windows Server 2019 (opt. only support Intel® i210)

    Linux

    Linux

    环境指标

    温度

    Operating: -5 to 65°C
    Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery

    湿度

    Operating: 5 to 95% RH
    Storage: 5 to 95% RH

    MTBF

    492,929 hrs @ 25°C ; 274,924 hrs @ 45°C ; 171,243 hrs @ 60°C
    Calculation Model: Telcordia Issue 4
    Environment: GB, GC - Ground Benign, Controlled

    机械结构

    尺寸

    ATX Form Factor
    305mm (12") x 244mm (9.6")

    高度

    PCB: 1.6mm
    Top Side: 33.3mm, Bottom Side: 4mm

    安规认证

    认证

    CE, FCC Class B, RoHS, UKCA
