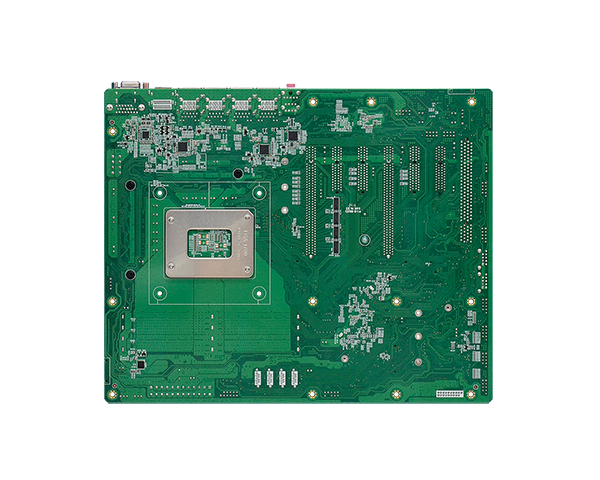

ATX工业主板-EBC-7016
★4 DDR5 UDIMM up to 192GB
★Quad Displays: VGA, 2 DP++, HDMI
★Supports 4K resolution
★Multiple Expansion: 2 PCIe x16, 4 PCIe x4, 1 PCI, 2 M.2 M key, 1 M.2 E Key, 1 M.2 A Key
★Rich I/O: 4 Intel 2.5GbE, 6 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0
★Typically supports 10-Year CPU Life Cycle Until Q1’ 33 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.
-
系统
处理器
14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 2.0 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 1.1 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 2.1 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 1.3 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 2.6 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 1.7 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 2.5 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 1.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 3.5 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 2.7 GHz); 35W
Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W
Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W
13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W
12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W芯片组
RPS630-R680E
Intel® R680E Chipset
RPS630-Q670E
Intel® Q670E Chipset
内存
RPS630-R680E
Four 288-pin UDIMM up to 192GB (ECC/Non-ECC)
Dual Channel DDR5 up to 4400 MHz
*Speed support list follow User’s Manual
RPS630-Q670E
Four 288-pin UDIMM up to 192GB (Non-ECC)
Dual Channel DDR5 up to 4400 MHz
*Speed support list follow User’s Manual
BIOS
AMI SPI 256Mbit
显示
控制器
Intel® UHD Graphics 700 series
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9显示器
1 x VGA
2 x DP++
1 x HDMI 2.0a
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @60Hz
HDMI: resolution up to 4096x2160 @ 24Hz四重显示
VGA + 2 x DP++ + HDMI
扩充
界面
2 x PCIe x16 (Gen 4, 16 or 8+8)
3 x PCIe x4 (Gen 4, open edge)
1 x PCIe x4 (Gen 3, open edge, co-lay M.2-M2, function selected by BIOS.)
1 x PCIM.2
RPS630-R680E
1 x M.2 E key
1 x M.2 A key for M2-OOB
1 x M.2 M key (PCIe x4 Gen4 NVMe, SATA)
1 x M.2 M key (opt. co-lay PCIe x4 Gen3 slot #6, function selected by BIOS.)
RPS630-Q670E
1 x M.2 E key
1 x M.2 M key (PCIe x4 Gen4 NVMe, SATA)
1 x M.2 M key (opt. co-lay PCIe x4 Gen3 slot #6, function selected by BIOS.)
音讯
音讯编译码器
Realtek ALC888S
以太网路
控制器
RPS630-R680E
1 x Intel® I226-LM (Core i9/i7/i5 support iAMT)
1 x Intel® I210-AT (co-lay I226-V)
2 x Intel® I226-V
RPS630-Q670E
1 x Intel® I226-LM (Core i9/i7/i5 support iAMT)
1 x Intel® I226-V

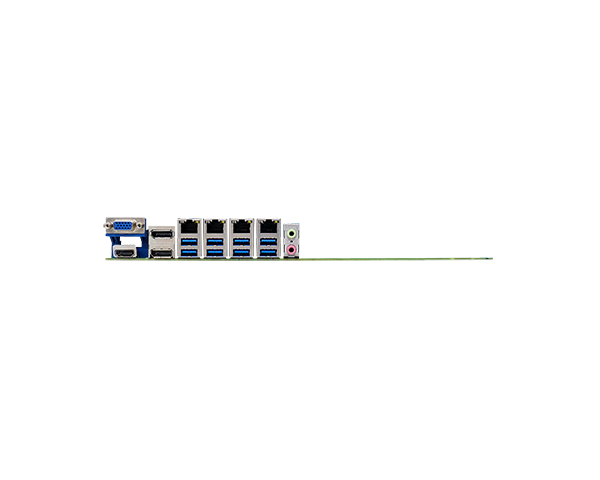

背板输入/输出
以太网络
RPS630-R680E
3 x 2.5GbE (RJ-45)
1 x 1GbE (RJ-45, opt. 2.5GbE)
RPS630-Q670E
2 x 2.5GbE (RJ-45)
USB
4 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1显示
1 x VGA
2 x DP++
1 x HDMI音源
1 x Line-out
1 x Mic-in
1 x Line-in (opt.)内部输入/输出
串行端口
2 x RS-232/422/485
4 x RS-232USB
RPS630-R680E
2 x USB 3.2 Gen1
2 x USB 2.0 Vertical Type A
RPS630-Q670E
2 x USB 3.2 Gen1
1 x USB 2.0 Vertical Type A
2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
音效
1 x Front Audio
1 x S/PDIFSATA
4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10DIO
4-IN / 8-OUT DIO
SMBus
1 x SMBus
其他 输入/输出
1 x eSPI
PS/2
1 x PS/2 (2.54mm pitch)
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
TPM2.0
电源
类型
ATX
端口
8-pin ATX 12V power
24-pin ATX power耗能
Typical: i9-14900K: 3.3V @ 0.69A (2.28W); 5V @ 0.95A (4.75W); 12V @ 1.26A (15.12W)
Max.: i9-14900K: 3.3V @ 1.2A (3.96W); 5V @ 3.6A (18W); 12V @ 29.02A (348.24W)RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Windows 11 EnterpriseLinux
Linux
环境指标
温度
Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery湿度
Operating: 5 to 95% RH
Storage: 5 to 95% RHMTBF
TBD
机械结构
尺寸
ATX Form Factor
305mm (12") x 244mm (9.6")高度
PCB: 1.6mm
Top Side: 33.3mm, Bottom Side: 4mm安规认证
认证
CE, FCC Class B, RoHS, UKCA, KC
-
-
