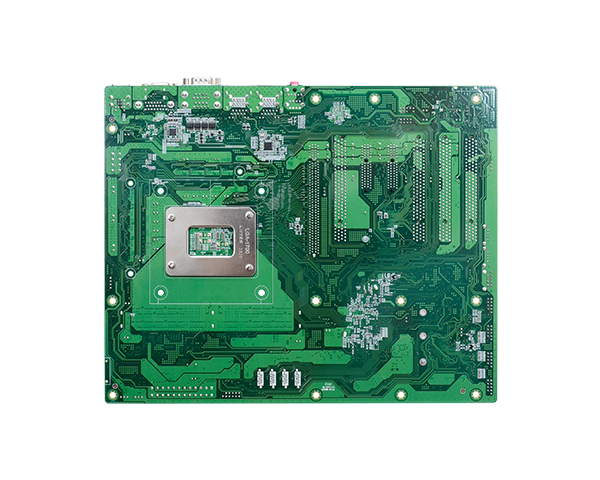

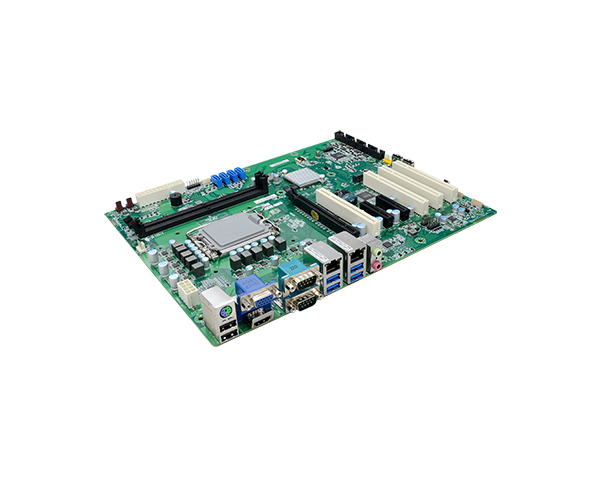

ATX工业主板-EBC-7015

★14th/13th/12th Gen Intel® Core Processors
★2 DDR5 UDIMM up to 96GB
★Dual Displays: VGA, HDMI
★Supports 4K High Resolution
★Multiple Expansion: 1 PCIe x16, 2 PCIe x4, 4 PCI, 1 M.2 M key
★Rich I/O: 1 Intel 2.5GbE, 1 Intel 1GbE, 4 USB 3.2 Gen1, 6 USB 2.0, 4 SATA 3.0, 6 COM
ꄴ上一个： ATX工业主板-EBC-7016
ꄲ下一个： 无

  • 系统



    处理器

    14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
    Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 2.0 GHz); 65W
    Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 1.1 GHz); 35W
    Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 2.1 GHz); 65W
    Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 1.3 GHz); 35W
    Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 2.6 GHz); 65W
    Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 1.7 GHz); 35W
    Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 2.5 GHz); 65W
    Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 1.5 GHz); 35W
    Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 3.5 GHz); 60W
    Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 2.7 GHz); 35W
    Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W
    Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W

    13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
    Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
    Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
    Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
    Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
    Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
    Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
    Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
    Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
    Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
    Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
    Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
    Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

    12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
    Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
    Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
    Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
    Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
    Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
    Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
    Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
    Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
    Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
    Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
    Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
    Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

    芯片组

    Intel® H610 Chipset

    内存

    Two 288-pin UDIMM up to 96GB (Non-ECC)
    Dual Channel DDR5 up to 5600 MHz

    BIOS

    AMI SPI 256Mbit

    显示

    控制器

    Intel® UHD Graphics 700 series

    特性

    OpenGL 4.5, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

    显示器

    1 x VGA
    1 x HDMI 2.0a
    VGA: resolution up to 1920x1200 @ 60Hz
    HDMI: resolution up to 4096x2160 @ 24Hz

    扩充

    界面

    1 x PCIe x16 (Gen 4)
    2 x PCIe x4 (Gen 3, x2)
    4 x PCI
    1 x M.2 M key (PCIe x2 NVMe)

    音讯

    音讯编译码器

    Realtek ALC888S

    以太网路

    控制器

    1 x Intel® I226V
    1 x Intel® I219V

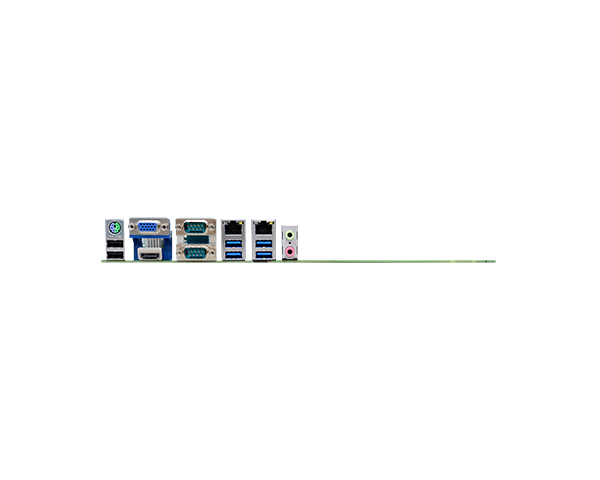

    背板输入/输出

    以太网络

    1 x 2.5GbE (RJ-45)
    1 x 1GbE (RJ-45)

    串口

    2 x RS-232/422/485 (RS-232 w/ power) (DB-9)

    USB

    4 x USB 3.2 Gen 1
    2 x USB 2.0

    PS/2

    1 x PS/2 (mini-DIN-6)

    显示

    1 x VGA
    1 x HDMI

    音源

    1 x Line-out
    1 x Mic-in
    1 x Line-in (opt.)

    内部输入/输出

    串行端口

    4 x RS-232

    USB

    2 x USB 2.0 Type A
    1 x USB 2.0 (2.54mm pitch, colay vertical Type A, opt.: MOQ required)

    音效

    1 x Front Audio
    1 x S/PDIF

    SATA

    4 x SATA 3.0 (up to 6Gb/s)

    DIO

    4-IN / 8-OUT DIO

    SMBus

    1 x SMBus

    eSPI

    1 x eSPI

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    TPM2.0

    电源

    类型

    ATX

    端口

    8-pin ATX 12V power
    24-pin ATX power

    耗能

    Typical: i9-12900K: 3.3V @ 0.4A (1.32W); 5V @ 0.85A (4.25W); 12V @ 1.09A (13.08W)
    Max.: i9-12900K: 3.3V @ 0.63A (2.08W); 5V @ 3.02A (15.1W); 12V @ 26.39A (316.68W)

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    微软

    Windows 10 IoT Enterprise 64-bit
    Windows 11 Enterprise

    Linux

    Linux

    环境指标

    温度

    Operating: -5 to 65°C
    Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery

    湿度

    Operating: 5 to 95% RH
    Storage: 5 to 95% RH

    MTBF

    TBD

    机械结构

    尺寸

    ATX Form Factor
    305mm (12") x 244mm (9.6")

    高度

    PCB: 1.6mm
    Top Side: 33.3mm
    Bottom Side: 4mm

    安规认证

    认证

    CE, FCC Class B
