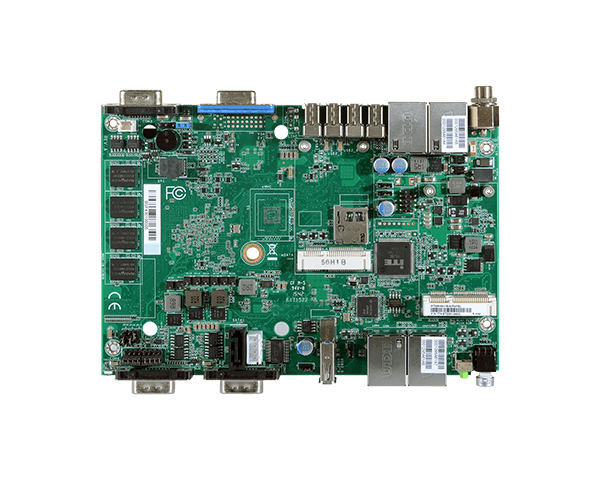

4寸工业主板-EBC-4009
★2GB/4GB DDR3L 板贴内存
★1 VGA or 1 DVI-I (option)
★扩充插槽: 2 Mini PCIe
★丰富I/O: 4 Intel 网口, 3 串口, 1 USB 3.0, 5 USB 2.0
★15年CPU长期支持至Q4' 28 (Based on Intel IOTG Roadmap)
-
系统
处理器
Intel® Atom™ E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
BGA 1170 packaging technology
22nm process technology内存
4GB Memory onboard (E3845)
Single Channel DDR3L 1333MHz
2GB Memory onboard (J1900)
Single Channel DDR3L 1066MHzBIOS
AMI SPI 64Mbit
显示
控制器
Intel® HD Graphics 4600
显示器
1 VGA/ 1 DVI-I (available upon request)
DVI: resolution up to 1920x1080 @ 60Hz
VGA: 24-bit, resolution up to 2560x1600 @ 60Hz扩充
界面
2 x Full-size Mini PCIe ( PCIe, USB, and 3G signals for 3G or GPRS module)
以太网路
控制器
4 x Intel® I210 PCI Express (10/100/1000Mbps)
LED
指示灯
1 x status LED
1 x HDD LED前板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x RS232/422/485
USB
1 x USB 3.0 (Type A)
DIO
1 x 8-bit DIO
按键
1 x reset button

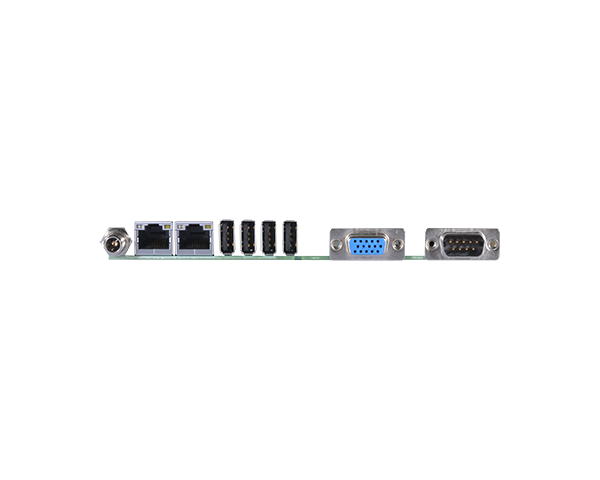

1 x power button背板输入/输出
以太网络
2 x GbE (RJ45)
串口
1 x RS232/422/485
USB
4 x USB 2.0
显示
1 VGA/ 1 DVI-I (available upon request)
内部输入/输出
USB
2 x USB 2.0
SATA
1 x SATA 2.0
1 x SATA PowerDIO
1 x 8-bit DIO
监视定时器
看门狗定时器
Watchdog timeout programmable via software from 1 to 255 seconds
安全性
信赖平台模块
Available Upon Request
电源
类型
1 16~24V
端口
DC-in jack
耗能
BT259-45-I-B-4: 21.8W with E3845 at 1.91GHz and 4GB DDR3L memory down
支持操作系统
支持操作系统
Windows 7, WES 7, Windows 8.1, WES 8
Linux
Note: Windows 10 will be available upon request. Please contact DFI for more information.环境指标
温度
Operating: 0°C~60°C
Storage: -20°C~85°C湿度
Operating: 5% to 90%
RH Storage: 5 to 90% RH机械结构
尺寸
4" board
165mm (6.49") x 115mm (4.53")高度
PCB: 1.6mm
Top Side: 16.5mm
Bottom Side: 2mm安规认证
认证
CE, FCC Class B, RoHS
-
-
