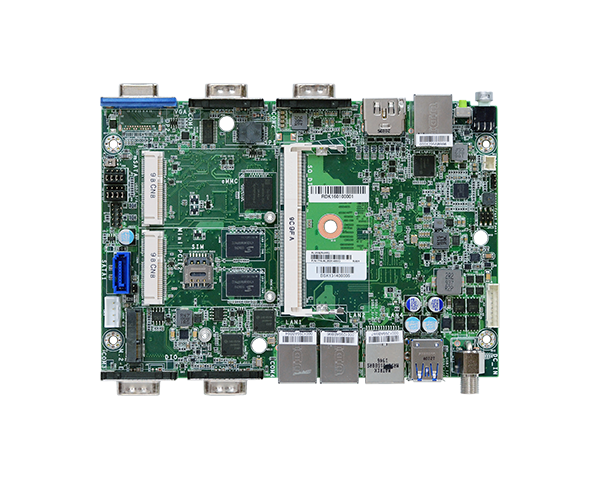

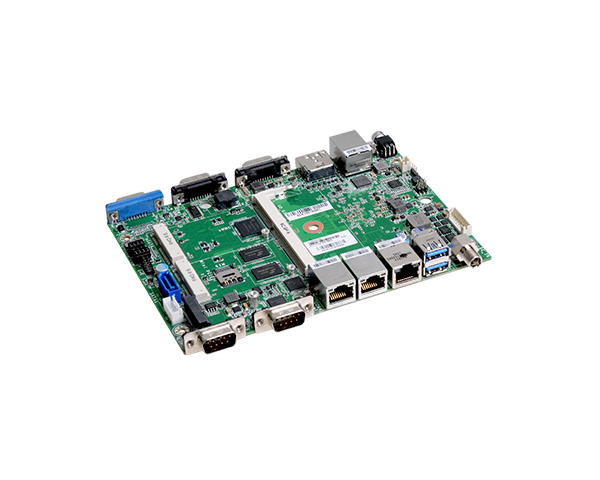

4寸工业主板-EBC-4007

★Intel Atom® Processor E3900 Series
★2GB/4GB/8GB Memory onboard + one 204-pin SO-DIMM, Dual Channel DDR3L 1866MHz
★Two independent displays: DP++/HDMI (auto-detection) + VGA/DP(opt.)
★DP resolution up to 4096x2160 @ 60Hz
★Multiple OS support: Win 7/Win 10/Linux
★Rich I/O: max. 4 Intel GbE, 4 COM, 4 USB 3.1 Gen1, 2 USB 2.0
★Extended operating temperature: -40 to 85°C
★15-Year CPU Life Cycle Support Until Q2' 32 (Based on Intel IOTG Roadmap)
ꄴ上一个： 4寸工业主板-EBC-4008
ꄲ下一个： 4寸工业主板-EBC-4006

  • 系统



    处理器

    Intel Atom® Processor E3900 Series, BGA 1296
    Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
    Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
    Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6W
    Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W

    内存

    2GB/4GB/8GB Memory onboard + one 204-pin SO-DIMM
    Dual Channel DDR3L 1866MHz
    The system supports a combined maximum memory size of 8GB total

    BIOS

    AMI SPI 128Mbit (support UEFI/legacy mode)

    显示

    控制器

    Intel® HD Graphics

    特性

    OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
    HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
    HW Encode: H.264, MPEG2, MPEG4

    显示器

    1 x DP++/HDMI (auto-detection)
    1 x VGA/DP(opt.)
    DP: resolution up to 4096x2160 @ 60Hz
    HDMI: resolution up to 3840x2160 @ 30Hz
    VGA: resolution up to 1920x1200 @ 60Hz

    双重显示

    DP++/HDMI + VGA/DP(opt.)

    储存

    eMMC

    1 x 8G/16G/32G/64G (opt.)

    扩充

    界面

    1 x Full-size mSATA (SATA, USB is available by BOM option)
    1 x Full-size Mini PCIe (USB2.0/LPC/PCIe, PCIe is available for config. with 4 LAN)
    1 x M.2 (2230 E Key) (PCIe/USB2.0)

    以太网路

    控制器

    4 x Intel® I211AT PCIe, co-lay with I210IT (10/100/1000Mbps)

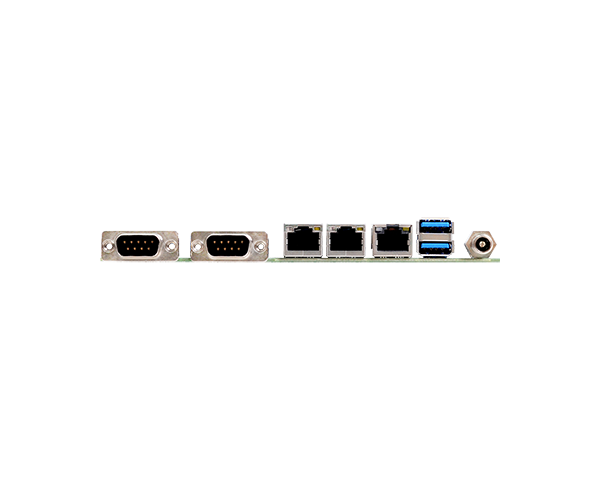

    背板输入/输出

    以太网络

    up to 4 x GbE (RJ-45) (1 x GbE colay 2 x USB 3.1 Gen1)

    串口

    4 x RS-232/422/485 (1 x RS-232/422/485 colay 1 x 8-bit DIO by jumper setting)

    USB

    up to 4 x USB 3.1 Gen1 (2 x USB 3.1 Gen1 colay 1 x GbE)

    显示

    1 x DP++/HDMI (auto-detection)
    1 x VGA/DP(opt.)

    内部输入/输出

    USB

    2 x USB 2.0 (2.0mm pitch)

    SATA

    1 x SATA 3.0 (up to 6Gb/s, support SSD only)
    1 x SATA Power

    DIO

    1 x 8-bit DIO

    其他 输入/输出

    1 x Front Panel

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    fTPM2.0

    电源

    类型

    9~36V DC input

    端口

    DC Jack

    耗能

    Typical: E3950:12V, 5.88Watt
    Max.: E3950:12V, 18.84Watt

    RTC 电池

    CR2032 Coin Cell, link main board with cable

    支持操作系统

    微软

    Windows 10 IoT Enterprise 64-bit
    Windows 7 (/WES7) 32/64-bit (project support only)

    Linux

    Linux

    环境指标

    温度

    Operating: 0 to 60°C/-40 to 85°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    4305UE: 619,529 hrs @ 25°C; 407,983 hrs @ 45°C ; 281,090 hrs @ 60°C; 142,546 hrs @ 85°C
    Calculation model: Telcordia Issue 4
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    4" SBC Form Factor 1
    165mm (6.49") x 115mm (4.53")

    高度

    PCB's thickness: 1.6mm
    Top Side(CPU side): 6.1mm, Bottom Side: 16.4mm

    安规认证

    认证

    CE, FCC, RoHS, UKCA
