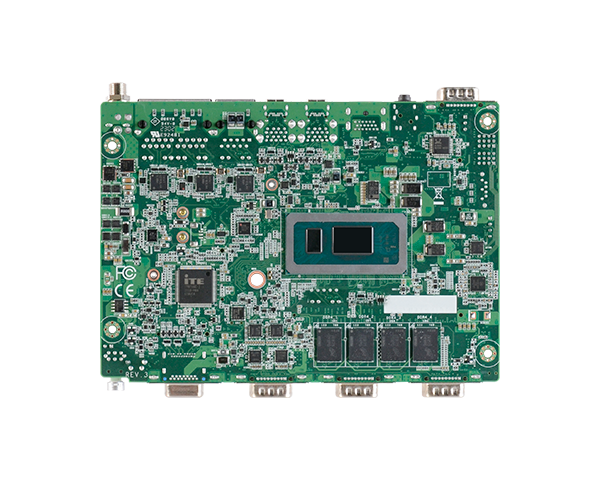

4寸工业主板-EBC-4006

★12th Gen Intel® Core™ Processors
★On board memory and 1 DDR4 SO-DIMM
★Multiple Displays: 1 HDMI, 1 VGA/DP, 2 Type-C DP Alt. Mode
★Supports 4K/2K resolution
★Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
★Rich I/O: 1 Intel 2.5GbE, 2 Intel GbE, 6 COM, 4 USB 3.2, 2 USB 2.0, 1 SATA 3.0
★Typically supports 10-Year CPU Life Cycle Until Q1’ 32 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.
ꄴ上一个： 4寸工业主板-EBC-4007
ꄲ下一个： 4寸工业主板-EBC-4005

  • 系统



    处理器

    12th Gen Intel® Core™ Processors, BGA 1744 (Alder Lake-P, 15W)
    Intel® Core™ i7-1265UE Processor, 10C12T, 12M Cache, 1.7GHz (4.7GHz)
    Intel® Core™ i5-1245UE Processor, 10C12T, 12M Cache, 1.5GHz (4.4GHz)
    Intel® Core™ i3-1215UE Processor, 6C8T, 10M Cache, 1.2GHz (4.4GHz)
    Intel® Celeron® 7305E Processor, 5C5T, 8M Cache, 1.0GHz

    内存

    8GB On-board memory & one SO-DIMM DDR4 up to 32GB
    Dual Channel DDR4 3200MHz

    BIOS

    AMI SPI 256Mbit (Supports UEFI boot only)

    显示

    控制器

    Intel® Iris® Xe Graphics
    Intel® UHD Graphics

    特性

    DirectX 12, Open GL 4.6, Vulkan 1.2
    HW Decode: AV1, AVC/H.264, MJPEG, HEVC/H.265, VP9, SCC
    HW Encode: MJPEG, AVC/H.264, HEVC/H.265, VP9, SCC

    显示器

    1 x HDMI
    1 x VGA/DP (Opt.)
    2 x Type-C DP Alt. Mode
    HDMI: Resolution up to 4096x2160 @60Hz
    VGA: Resolution up to 1920x1200 @60Hz
    DP: Resolution up to 4096x2304 @60Hz

    多重显示

    HDMI + VGA/DP (Opt.) + Type-C DP Alt. Mode + Type-C DP Alt. Mode

    扩充

    界面

    1 x M.2 M Key 2280 (PCIex4/SATA)
    1 x M.2 B Key 3042/3052 (USB3.0/USB2.0/PCIex1), 1 x SIM slot for 4G/5G
    1 x M.2 E Key 2230 (CNVi/PCIex1/USB2.0)

    音讯

    音讯编译码器

    Realtek ALC888S

    以太网路

    控制器

    1 x Intel® I225LM/IT (10/100/1000/2500Mbps)
    2 x Intel® I225LM/IT (10/100/1000Mbps)
    (Only Core i7/i5 supports iAMT)

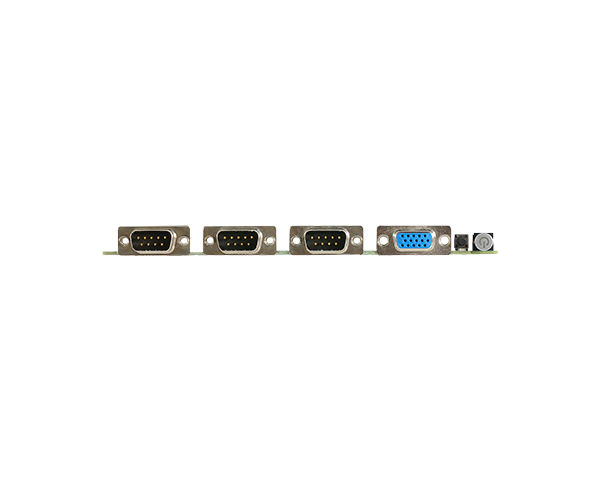

    前板输入/输出

    串口

    COM 1 / COM 2: 2 x RS-232/422/485
    COM 4: 1 x RS-232

    显示

    1 x VGA/DP (Opt.)

    按键

    1 x Power Button
    1 x Reset Button

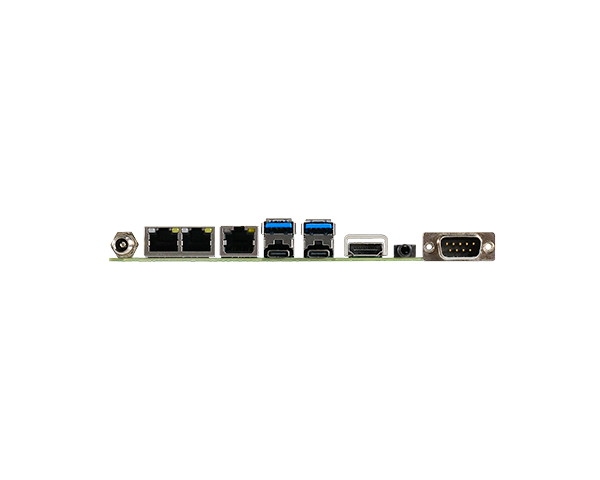

    背板输入/输出

    以太网络

    1 x 2.5GHz (RJ-45) + 2 x GbE (RJ-45)

    串口

    COM 3: 1 x RS232 (also supports an optional 8-bit DIO)

    USB

    4 x USB 3.2
    Default: 2 x Type C + 2 x Type A connector
    Option: 4 x Type A connector

    显示

    1 x HDMI
    2 x Type-C DP Alt. Mode

    音源

    1 x Audio Combo Phone Jack (Line-out/Mic-in)

    内部输入/输出

    串行端口

    COM 5 / COM 6: 2 x RS-232 (2.0mm pitch, box header)

    USB

    2 x USB 2.0 (2.0mm pitch, box header)

    音效

    1 x Front Audio (Line-out/Mic-in, 2.0mm pitch, box header)

    SATA

    1 x SATA 3.0 (up to 6Gb/s)
    1 x SATA Power (5V/12V)

    其他 输入/输出

    1 x Front Panel
    1 x System Fan Connector (Opt.)

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    Discrete TPM 2.0

    电源

    类型

    9~36 VDC input

    端口

    One power jack with lock. (Default)
    Co-lay 2x2 pin power connector straight type and right angle type

    耗能

    Typical: 1265UE, 12V @ 1A (12Watt)
    Max.: 1265UE, 12V @ 2.6A (31.2Watt)

    RTC 电池

    CR2032 Coin Cell, link mother board with cable

    支持操作系统

    微软

    Windows 10 IoT Enterprise 64-bit
    Windows 11

    Linux

    Linux

    环境指标

    温度

    Operating: -5 to 65°C / -30 to 80°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    1365UE: 491,541 hrs @ 25°C; 328,488 hrs @ 45°C ; 227,921 hrs @ 60°C; 175,097 hrs @ 70°C ; 133,220 hrs @ 80°C
    Calculation model: Telcordia Issue 4
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    4" SBC Form Factor
    165mm (6.49") x 115mm (4.53")

    高度

    PCB: 1.6mm Top Side: 16.34mm, Bottom Side: 3mm

    安规认证

    认证

    CE, FCC, RoHS, UKCA
