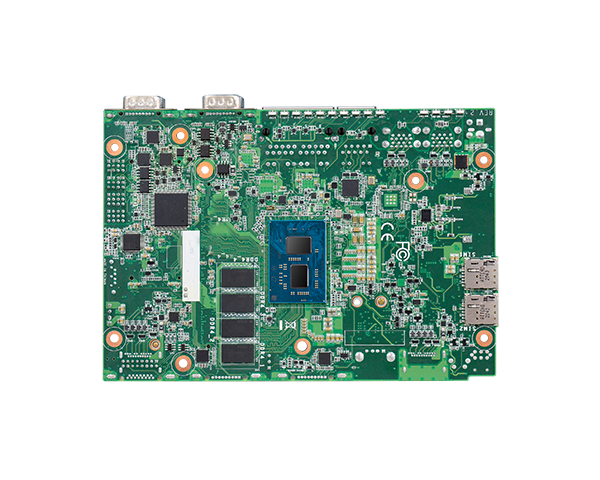

4寸工业主板-EBC-4005

★Intel® Atom® Processor X Series
★On board DDR4 + 1 DDR4 3200 SODIMM
★Dual Independent Displays: 1 VGA + 1 DP++
★Supports 4K/2K resolution
★Multiple Expansion: 1 M.2 E Key, 1 M.2 B Key, 1 M.2 M Key
★Rich I/O: 2 or 3 GbE, 1 2.5 GbE, 2 or 4 USB 3.1, 2 USB 2.0, 1 USB 2.0 (Vertical), 2 COM + 2 COM (Internal), 1 SATA 3.0
ꄴ上一个： 4寸工业主板-EBC-4006
ꄲ下一个： 4寸工业主板-EBC-4003

  • 系统



    处理器

    Intel Atom Elkhart Lake
    · Industrial
    Intel® Atom® x6425RE 4 cores, 1.9 GHz, TDP 12W
    · Embedded
    Intel® Atom® x6211E 2 cores, 1.3 to 3.0 GHz, TDP 6.5W
    Intel® Atom® x6413E 4 cores, 1.5 to 3.0 GHz, TDP 9W
    Intel® Atom® x6425E 4 cores, 2.0 to 3.0 GHz, TDP 12W
    · PC Client
    Intel® Celeron® J6412 4 cores, 2.0 to 2.6 GHz, TDP 10W
    Intel® Celeron® J6413 4 cores, 1.8 to 3.0 GHz, TDP 10W

    内存

    4GB/8GB DDR4 Memory onboard
    One 260 pin DDR4 SODIMM up to 3200MHz
    Total Memory up to 32GB
    (in-band ECC support in embedded/industrial SKU)

    BIOS

    AMI SPI 256Mbit (supports UEFI boot only)

    显示

    控制器

    Intel® UHD Graphics for 10th Gen Intel® Processors

    特性

    OpenGL 4.5, DirectX 12, Open CL 1.2, Vulkan 1.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9
    HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP9

    显示器

    1 x VGA (Support via VGA cable)
    1 x DP++

    双重显示

    1 VGA + 1 DP++

    储存

    内插

    SATA III

    eMMC

    16GB/32GB (Available upon request)

    扩充

    界面

    1 x M.2 2280 (SATA)
    1 x M.2 2230 (USB/PCIe)
    1 x M.2 3042/3052 (USB 3.0/PCIe) with dual SIM

    音讯

    音讯编译码器

    Realtek ALC888

    以太网路

    控制器

    2 or 3 x Intel® Ethernet Controller I210/I211 GbE LAN
    1 x Intel® Ethernet 2.5GbE LAN

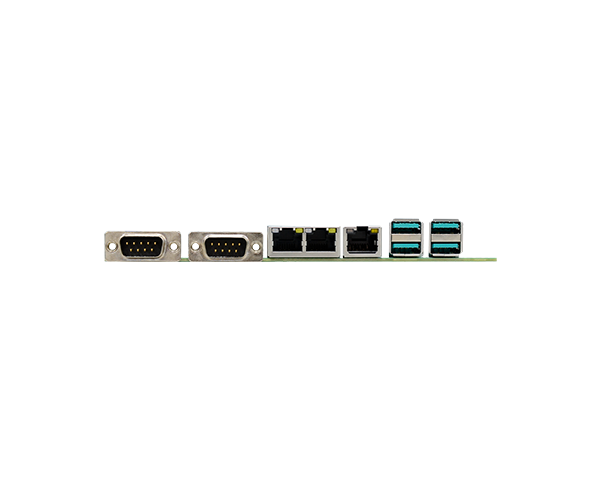

    前板输入/输出

    以太网络

    2 or 3 x GbE (RJ-45) (configuration options)
    1 x 2.5GbE TSN RJ45

    串口

    2 x RS232/422/485

    USB

    2 or 4 x USB 3.1 (configuration options)

    DIO

    8-bit DIO (jumper switch to COM)

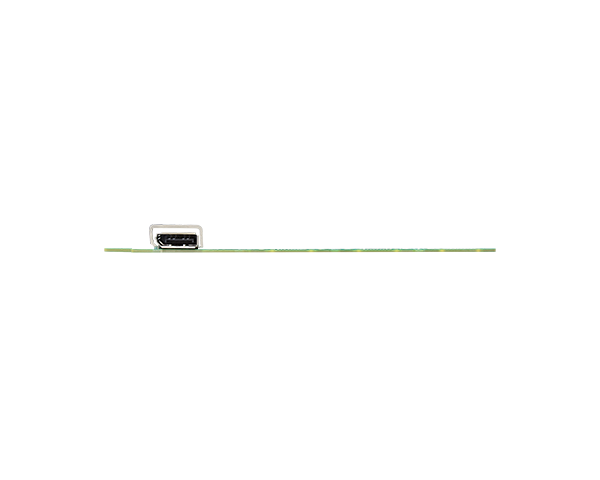

    背板输入/输出

    显示

    1 x DP++

    内部输入/输出

    串行端口

    2 x RS232

    USB

    2 x USB 2.0 (Pin header)
    1 x USB 2.0 (Vertical)

    显示

    1 x VGA

    音效

    1 x Audio (Line Out and Mic in)

    SATA

    1 x SATA 3.0
    1 x 5V SATA Power (support SATA HDD LED via front panel)

    SMBus

    1 x SMBus

    前面板

    1 x front panel (power button/reset button, power LED, HDD act LED)

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    TPM 2.0 (Available Upon Request)

    电源

    类型

    Wide Range 9~36VDC

    端口

    DC Jack (or vertical type 4pin connector)

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    微软

    Windows 10 IoT Enterprise LTSC 2019 RS5

    Linux

    Linux

    环境指标

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    运作温度

    0 to 80°C (PC Client SKU)
    -40 to 80°C (Embedded SKU)

    储存温度

    -40 to 85°C

    机械结构

    尺寸

    4" SBC Form Factor
    165mm (6.5") x 115mm (4.53")

    安规认证

    认证

    CE, FCC Class B (TBD in later stage)
