4寸工业主板-EBC-4003

★Intel® Processor N-series/Atom® Processor X Series
★On Board OOB built-in (Opt.)
★Rich I/O: 2 2.5GbE, 1 GbE, 4 USB 3.2, 3 COM, 1 COM/DIO, Internal: 2 USB 2.0, 2 COM
★High speed LPDDR5 4800 memory down
★Up to Quad Display Support via HDMI/USB-C/eDP, Quad display support by Dev
★On Board eMMC /SATA III/ M.2 Storage solution
★Intel TCC within the system
ꄴ上一个： 4寸工业主板-EBC-4005
ꄲ下一个： 4寸工业主板-EBC-4002

  • 系统



    处理器

    Intel Alder Lake-N Series
    Intel PC Client Series
    Intel® Processor N50 2 Cores, 1.0GHz to 3.4 GHz
    Intel® Processor N97 4 Cores, 2.0GHz to 2.9 GHz
    Intel® Processor N200 4 Cores, 1.0GHz to 3.2 GHz
    Intel® Core™ i3-N305 8 Cores, 1.0GHz to 3.0 GHz
    Intel® Embedded Series
    Intel® Atom® X7211E 2 Cores, 1.0GHz to 2.9 GHz
    Intel® Atom® X7213E 2 Cores, 1.7GHz to 2.9 GHz
    Intel® Atom® X7425E 4 Cores, 1.5GHz to 2.7 GHz

    内存

    8GB/16GB LPDDR5 4800 Memory down

    BIOS

    AMI SPI 256Mbit (supports UEFI boot only)

    显示

    控制器

    Intel® UHD Graphics

    特性

    Execution Units: Up to 32 EUs
    3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows)
    Mesa 3D, OpenGL 4.6, Vulkan 1.2 (Linux)
    Precision: FP32, FP16, INT8
    Compute: OpenCL 3.0

    显示器

    1 x eDP(Default)/LVDS
    1 x HDMI 1.4
    1 x USB-C Alt. Mode, one more USB-C(opt.)

    储存

    内插

    1 x M.2 2242/2280 M key (SATA/PCIe)
    1 x SATA III

    eMMC

    eMMC 32GB/64GB (Opt.)

    扩充

    界面

    1 x M.2 2242/2280 M key: PCIex1/SATA
    1 x M.2 2230 E Key: USB2.0/PCIe
    1 x M.2 3042/3052 B key: USB3.0/USB2.0/PCIe

    音讯

    音讯编译码器

    ALC888S

    以太网路

    控制器

    2 x Intel Ethernet controller i226 2.5GbE (support TSN)
    1 x Intel Ethernet controller i210 GbE

    前板输入/输出

    串口

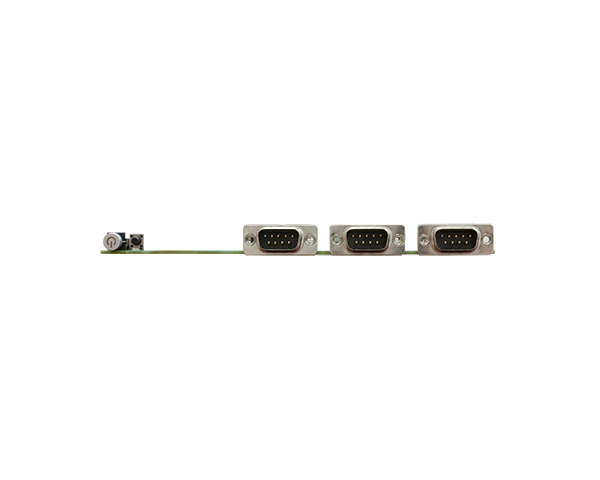

    3 x RS232/422/485 DB9 connector

    背板输入/输出

    以太网络

    2 x 2.5GbE RJ45
    1 x GbE RJ45

    串口

    1 x COM/DIO port

    USB

    3 x USB 3.2 type A
    1 x USB-C 3.2

    显示

    1 x HDMI

    音源

    1 x 3.5mm Line out/Mic In

    储存

    1 x MicroSD

    内部输入/输出

    串行端口

    2 x RS232

    显示

    1 x 40 pin LVDS/eDP (Default eDP)

    SATA

    1 x SATA 3.0
    1 x 5V SATA Power (support SATA HDD LED via front panel)

    SMBus

    1 x SMBus

    前面板

    1 x front panel

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    TPM 2.0 (Available Upon Request)

    电源

    类型

    Wide Range 9~36VDC

    端口

    DC Jack (or vertical type 4pin connector)

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    微软

    Windows 11 IoT Enterprise

    Linux

    Ubuntu 22.04

    环境指标

    温度

    Operating: 0 to 80°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    机械结构

    尺寸

    4" SBC Form Factor
    165mm (6.5") x 115mm (4.53")

    安规认证

    认证

    CE, FCC Class B (TBD in later stage)
