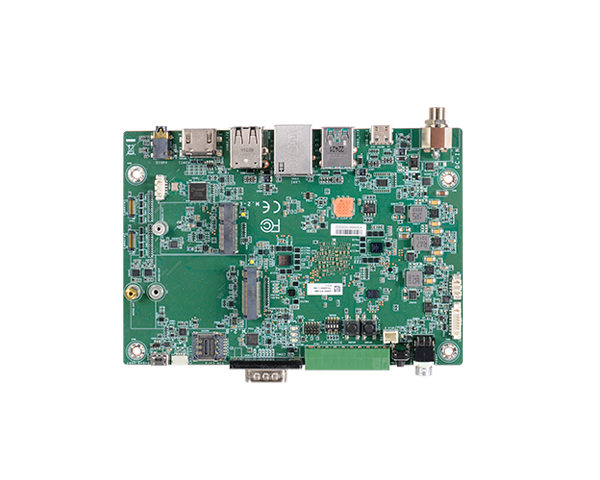

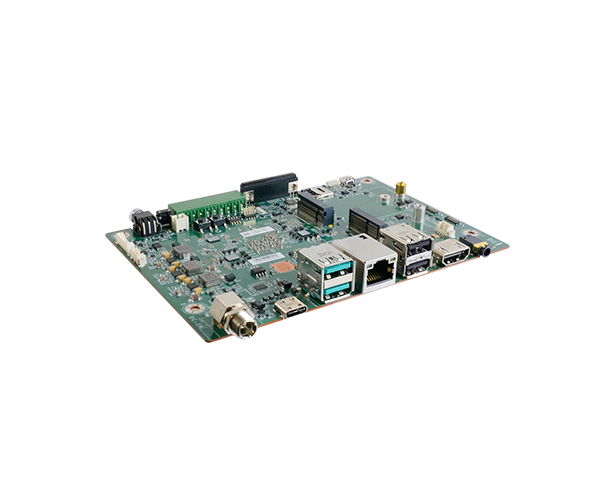

3.5寸工业主板-EBC-3516
★For Automation
★1 GbE LAN: For automation application
★CAN bus: For automation equipments integration
★2 M.2 Expansions: 1 M.2 E key 2230, 1 M.2 B key 3052/2242
★Supports CPU Life Cycle Until 2035
-
系统
处理器
QRB5165, 8x Kryo 585 2.84Ghz
内存
POP LPDDR5, 8GB
显示
控制器
Adreno 650 GPU
特性
OpenGL ES 3.2
显示器
1 x HDMI Type A, w/o audio. 1080P support on Linux.
单显示
HDMI
储存
UFS
Support UFS 3.1, default 128GB
扩充
界面
1 x M.2 B key 3052/2242 (USB3.1, reserve PCIex1) reference RM502G Quectel
1 x M.2 E key 2230 (PCIe x1) reference QCA6391 Wifi module
1 x Nano SIM slot音讯
音讯编译码器
Audio codec WCD9385
以太网路
控制器
AX88179A USB3 to GbE controller

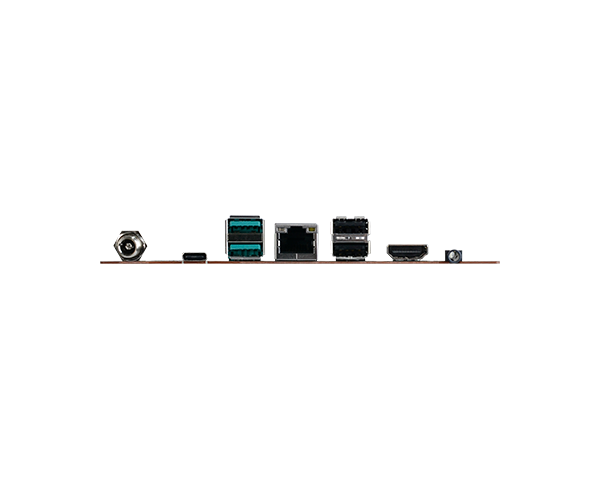

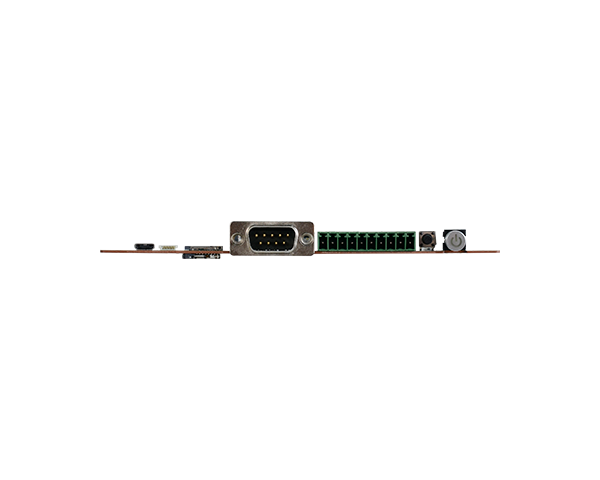

背板输入/输出
以太网络
1 x GbE (RJ-45) (optional from rear USB2)
串口
1 x RS232/422/485 (DB9)
USB
2 x USB 3.1 Gen1 Type A , 1 x USB 2 Type A
1 x USB 3.1 Type C (device mode only)DIO
1 x 8-bit DIO terminal block
显示
1 x HDMI 1.4
音源
1 x Line out/Mic in audio jack
*This function will be available on the next version.Debug
1 x Micro USB debug UART
内部输入/输出
SD
1 x uSD3.0 card
CANBus
1 x CAN bus 2.0b
风扇
1 x FAN 12V PWM control
镜头
2 x MIPI-CSI2 for 4-lanes camera, CMJ1: reference to OV9282 / CMJ2: reference to IMX577
监视定时器
看门狗定时器
TBD
电源
类型
12VDC
端口
Default DC jack , co-lay 2-pole terminal block
耗能
TBD
RTC 电池
CR2032 Coin Cell
支持操作系统
Linux
Ubuntu 20.04 (Linux Kernel 5.4.2)
环境指标
温度
Operating: 0 to 60C
Storage: -40 to 85°C湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RHMTBF
TBD
机械结构
尺寸
3.5" SBC Form Factor
146mm (5.75") x 102mm (4.02")高度
PCB: 1mm
Top Side: TBD
Bottom Side: TBD安规认证
认证
CE, FCC, RoHS, UKCA
-
-
