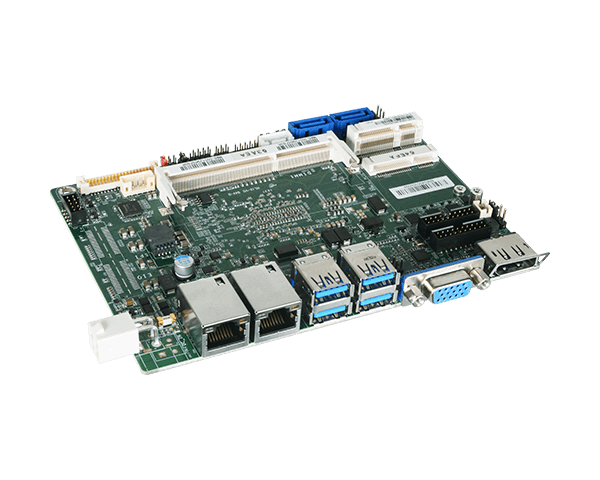

3.5寸工业主板-EBC-3513
★1 DDR3L SODIMM 至 8GB
★三个独立显示: VGA + LVDS + DP++
★无线通信: Mini PCIe
★丰富I/O: 2 Intel 网口, 4 串口, 4 USB 3.1 Gen 1, 2 USB 2.0
★15年CPU长期支持至Q3' 30 (Based on Intel IOTG Roadmap)
-
系统
处理器
6th Generation Intel® Core™ Processors, BGA 1356
Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz (3.4GHz), 15W
Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz (3.0GHz), 15W
Intel® Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W
Intel® Celeron® Processor 3955U, Dual Core, 2M Cache, 2.0GHz, 15W
7th Generation Intel® Core™ Processors, BGA 1356
Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz (3.9GHz), 15W
Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.6GHz (3.5GHz), 15W
Intel® Core™ i3-7100U Processor,Dual Core, 3M Cache, 2.4GHz , 15W
Intel® Celeron® Processor 3965U, Dual Core, 2M Cache, 2.2GHz, 15W内存
One 204-pin SODIMM up to 8GB
Single Channel DDR3L 1600MHzBIOS
Insyde SPI 128Mbit
显示
控制器
Intel® HD Graphics GT Series
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9显示器
1 x VGA
1 x LVDS
1 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz三重显示
VGA + LVDS + DP++
扩充
界面
1 x Full-size Mini PCIe (PCIe/USB/SATA, SATA by default)
1 x Half-size Mini PCIe (PCIe/USB, PCIe by default)
1 x SIM (supported by half-size Mini PCIe) (available upon request)音讯
音讯编译码器
Realtek ALC888S-VD2-GR
以太网路
控制器
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)背板输入/输出
以太网络
2 x GbE (RJ-45)
USB
4 x USB 3.1 Gen 1
显示
1 x VGA
1 x DP++内部输入/输出
串行端口
2 x RS-232/422/485 (2.0mm pitch)
2 x RS-232 (2.0mm pitch)USB
2 x USB 2.0 (2.0mm pitch)
显示
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power音效
1 x Audio (Line-out/Mic-in)
SATA
2 x SATA 3.0 (up to 6Gb/s)
1 x SATA PowerDIO
1 x 8-bit DIO
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型
Single 12V +/-10% DC
端口
Right Angle Connector (4-pin) DC Jack (available upon request)
Vertical Type Connector (4-pin) (available upon request)耗能
Typical: 6300U:12V @ 0.40A (4.80Watt)
Max.: 6300U:12V @ 2.08A (24.96Watt)电池
CR2032 Coin Cell
支持操作系统
微软
Windows 7 (/WES7) 32/64-bit
Windows 8.1 (64-bit)
Windows 10 IoT Enterprise 64-bitLinux
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Linux环境指标
Operating: 0 to 60°C (Opt. -20 to 70°C)
Storage: -40 to 85°C湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RHMTBF
SU551 : 430,978 hrs @ 25°C; 253,129 hrs @ 45°C ; 157,798 hrs @ 60°C
机械结构
尺寸
3.5" SBC Form Factor
146mm (5.75") x 102mm (4.02")高度
PCB: 1.6mm
Top Side: 15.5mm
Bottom Side: 4.0mm安规认证
认证
CE Certification
FCC Certification
RoHS Certification -
-
