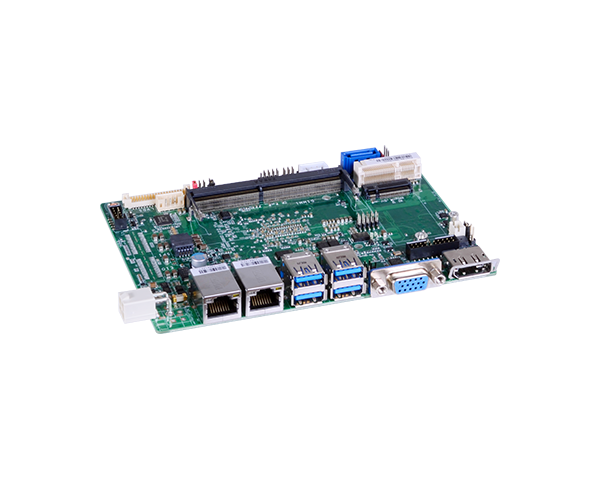

3.5寸工业主板-EBC-3512

★第7代 Intel® Core™ 3.5" SBC
★1 DDR4 SODIMM 至 16GB
★三个独立显示: VGA + LVDS + DP++
★无线通信: Mini PCIe
★丰富I/O: 2 Intel 网口, 4 USB 3.0, 2 USB 2.0, 1 M.2
★15年CPU长期支持至Q1' 32 (Based on Intel IOTG Roadmap)
ꄴ上一个： 3.5寸工业主板-EBC-3513
ꄲ下一个： 3.5寸工业主板-EBC-3511

  • 系统



    处理器

    7th Generation Intel® Core™ Processors, BGA 1356
    Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz (3.9GHz), 15W
    Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.6GHz (3.5GHz), 15W
    Intel® Core™ i3-7100U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
    Intel® Celeron® Processor 3965U, Dual Core, 2M Cache, 2.2GHz, 15W

    内存

    One 260-pin SODIMM up to 16GB
    Single Channel DDR4 1866/2133MHz

    BIOS

    Insyde SPI 128Mbit

    显示

    控制器

    Intel® HD Graphics GT Series

    特性

    OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

    显示器

    1 x VGA/DDI
    1 x LVDS/eDP
    1 x DP++/DDI
    VGA: resolution up to 1920x1200 @ 60Hz
    LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz
    DP++: resolution up to 4096x2304 @ 60Hz

    三重显示

    VGA + LVDS + DP++

    扩充

    界面

    1 x Full-size Mini PCIe (PCIe/USB)
    1 x M.2 B key 2242 (PCIe/USB2.0/SATA3.0)
    1 x Extension I/O connector (available upon request)

    音讯

    音讯编译码器

    Realtek ALC888

    以太网路

    控制器

    1 x Intel® I210AT PCIe (10/100/1000Mbps)
    1 x Intel® I219LM PCIe with iAMT11.6 (10/100/1000Mbps)

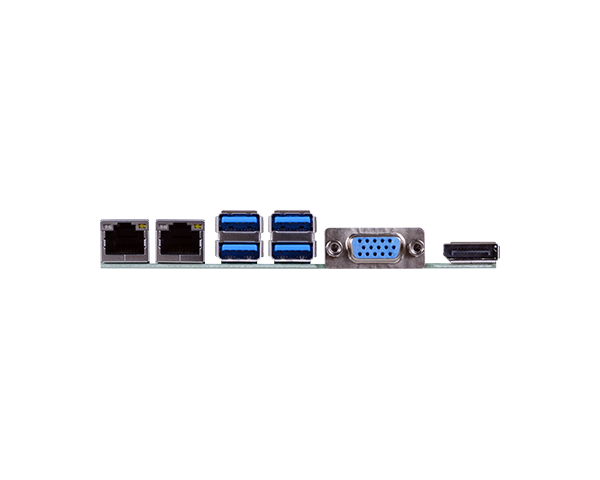

    背板输入/输出

    以太网络

    2 x GbE (RJ-45)

    USB

    4 x USB 3.0

    显示

    1 x VGA
    1 x DP++

    内部输入/输出

    串行端口

    2 x RS-232/422/485 (2.0mm pitch)

    USB

    2 x USB 2.0 (2.0mm pitch)

    显示

    1 x LVDS LCD Panel Connector
    1 x LCD/Inverter Power

    音效

    1 x Audio (Line-out/Mic-in)

    SATA

    1 x SATA 3.0 (up to 6Gb/s)
    1 x SATA Power

    DIO

    1 x 8-bit DIO

    SMBus

    1 x SMBus

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    fTPM 2.0

    电源

    类型

    Single 12V +/-5% DC

    端口

    Right Angle Connector (4-pin)
    DC Jack (available upon request)
    Vertical Type Connector (4-pin) (available upon request)

    耗能

    Idle: i7-7600U:12V @ 0.9A (10.8Watt)
    Max.: i7-7600U:12V @ 3.2A (38.5Watt)

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    微软

    Windows 10 IoT Enterprise 64-bit

    Linux

    Linux
    Yocto

    环境指标

    温度

    Operating: 0 to 60°C
    (Opt. -20 to 70°C)
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    477,146 hrs @ 25°C; 277,228 hrs @ 45°C; 172,875 hrs @ 60°C

    机械结构

    尺寸

    3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02")

    高度

    PCB: 1.6mm
    Top Side: 16.3mm
    Bottom Side: 4.0 mm

    安规认证

    认证

    CE, FCC, RoHS, UL
