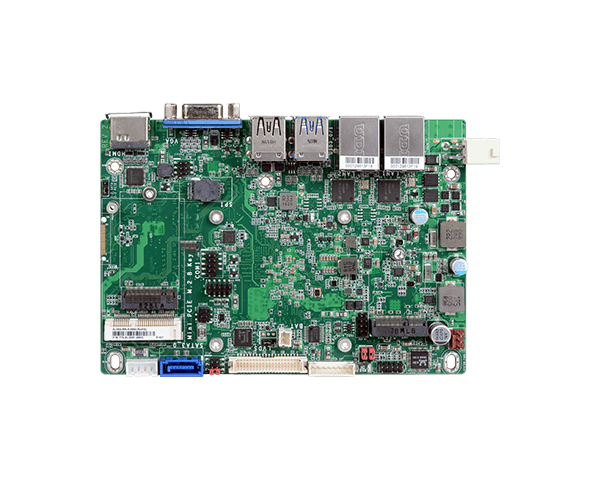

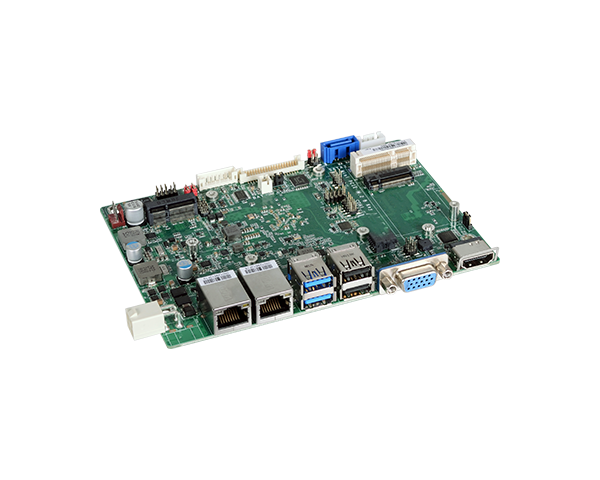

3.5寸工业主板-EBC-3510

★Intel Atom® E3900 3.5" SBC
★1 DDR3L SODIMM 至 8GB
★三个独立显示输出: VGA + LVDS + HDMI
★多元扩充插槽: 1 M.2 B Key, 1 M.2 E Key, Mini PCIe
★丰富 I/O: 2 网口, 1 串口, 2 USB 3.1 Gen1, 4 USB 2.0
★15年CPU长期支持至Q4' 31 (Based on Intel IOTG Roadmap)
ꄴ上一个： 3.5寸工业主板-EBC-3511
ꄲ下一个： 3.5寸工业主板-EBC-3509

  • 系统



    处理器

    Intel® Atom® Processor E3900 Family, BGA 1296
    Intel® Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
    Intel® Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
    Intel® Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
    Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
    Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
    Intel® Celeron® Processor J3455, Quad Core, 2M Cache, 1.5GHz (2.3GHz), 10W

    内存

    One 204-pin SODIMM up to 8GB
    Single Channel DDR3L 1866MHz

    BIOS

    Insyde SPI 128Mbit (supports UEFI boot only)

    显示

    控制器

    Intel® HD Graphics

    特性

    OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
    HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
    HW Encode: H.264, MPEG2, MPEG4

    显示器

    1 x VGA
    1 x LVDS
    1 x HDMI
    VGA: resolution up to 1920x1200 @ 60Hz
    LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
    HDMI: resolution up to 3840x2160 @ 30Hz

    三重显示

    VGA + LVDS + HDMI

    扩充

    界面

    1 x Full-size mini-PCIe (USB/PCIe) with SIM slot (option)
    1 x M.2 B key 2242 (PCIe/USB 2.0/SATA 3.0)
    1 x M.2 E key 2230 (USB/PCIe)

    音讯

    音讯编译码器

    Realtek ALC262

    以太网路

    控制器

    2 x Intel® I210AT PCIe (10/100/1000Mbps)
    2 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request)

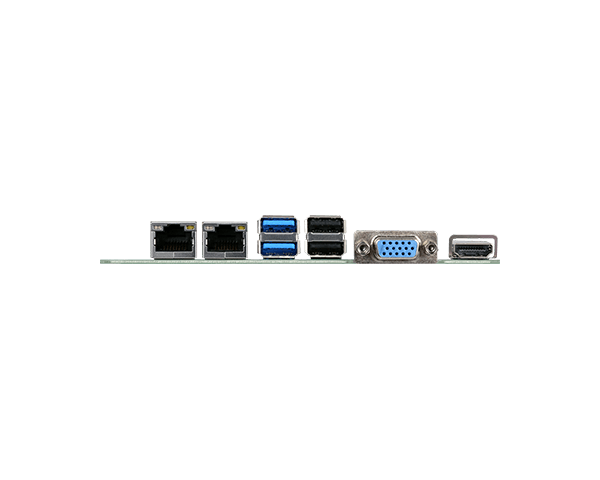

    背板输入/输出

    以太网络

    2 x GbE (RJ-45)

    USB

    2 x USB 3.1 Gen1
    2 x USB 2.0

    显示

    1 x VGA
    1 x HDMI
    1 x LVDS

    内部输入/输出

    串行端口

    1 x RS-232/422/485 (2.0mm pitch)

    USB

    2 x USB 2.0 (2.0mm pitch)

    显示

    1 x LVDS LCD Panel Connector
    1 x LCD/Inverter Power

    音效

    1 x Audio (Line-out/Mic-in)

    SATA

    1 x SATA 3.0 (up to 6Gb/s)
    1 x SATA Power

    DIO

    1 x 8-bit DIO

    SMBus

    1 x SMBus

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    fTPM2.0

    电源

    类型

    Wide Range 9~36V DC

    端口

    Right Angle Connector (4-pin)
    DC-in Jack (available upon request)
    Vertical Type Connector (4-pin) (available upon request)

    耗能

    Typical: 7W, Max : 24W.

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    支持操作系统 (UEFI Only)

    Windows 10 IoT Enterprise (64-bit)
    Linux

    环境指标

    温度

    Operating: 0 to 60°C, -20 to 70°C, -40 to 85 °C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    618,325 hrs @ 25°C; 396,245 hrs @ 45°C ; 267,106 hrs @ 60°C

    机械结构

    尺寸

    3.5" SBC Form Factor
    146mm (5.75") x 102mm (4.02")

    高度

    PCB: 1.6mm
    Top Side: 15.5mm
    Bottom Side: 8.0mm

    安规认证

    认证

    CE, FCC Class B, RoHS
