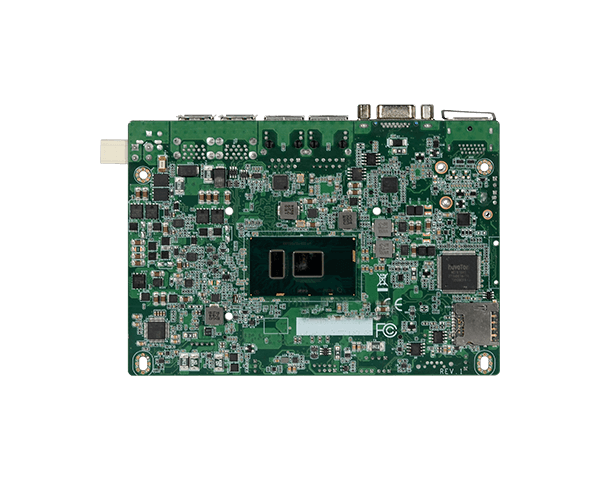

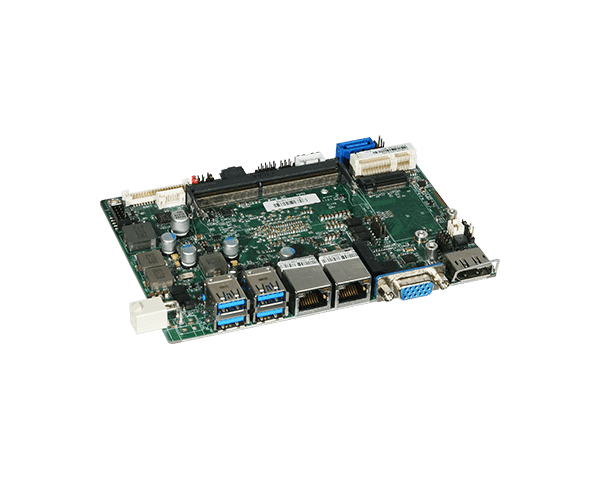

3.5寸工业主板-EBC-3509

★7th Gen Intel® Core™ 3.5" SBC
★1 DDR4 SODIMM up to 16GB
★Three independent displays: VGA + LVDS + DP++
★Rich I/O: 2 Intel GbE, 4 USB 3.0, 2 USB 2.0, 1 M.2
★15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)
ꄴ上一个： 3.5寸工业主板-EBC-3510
ꄲ下一个： 3.5寸工业主板-EBC-3508

  • 系统



    处理器

    7th Generation Intel® Core™ Processors, BGA 1356
    Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz (3.9GHz), 15W
    Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.6GHz (3.5GHz), 15W
    Intel® Core™ i3-7100U Processor,Dual Core, 3M Cache, 2.4GHz , 15W
    Intel® Celeron® Processor 3965U, Dual Core, 2M Cache, 2.2GHz, 15W

    内存

    One 260-pin SODIMM up to 16GB
    Single Channel DDR4 1866/2133MHz

    BIOS

    Insyde SPI 128Mbit

    显示

    控制器

    Intel® HD Graphics GT Series

    特性

    OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

    显示器

    1 x VGA
    1 x LVDS/eDP
    1 x DP++
    VGA: resolution up to 1920x1200 @ 60Hz
    LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz
    DP++: resolution up to 4096x2304 @ 60Hz

    三重显示

    VGA + LVDS + DP++

    扩充

    界面

    1 x Full-size Mini PCIe (PCIe/USB2.0/USB3.1 Gen1 (option)) with SIM slot (option)
    1 x M.2 B key 2242 (PCIe Gen3/USB2.0/SATA3.0)
    1 x M.2 E key 2230 (PCIe/USB2.0)

    音讯

    音讯编译码器

    Realtek ALC888S

    以太网路

    控制器

    Core™ Processors:
    1 x Intel® I210AT PCIe (10/100/1000Mbps) or 1 x Intel® I210IT PCIe (10/100/1000Mbps)
    1 x Intel® I219LM PCIe with iAMT11.6 (10/100/1000Mbps)
    Celeron® Processor:
    1 x Intel® I210AT PCIe (10/100/1000Mbps) or 1 x Intel® I210IT PCIe (10/100/1000Mbps)
    1 x Intel® I219V PCIe with iAMT11.6 (10/100/1000Mbps)

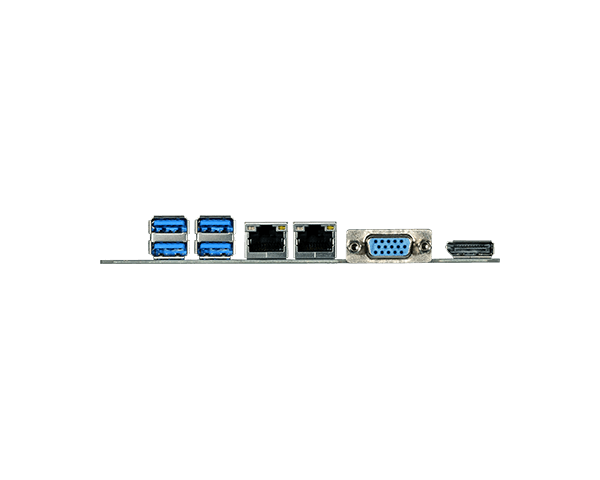

    背板输入/输出

    以太网络

    2 x GbE (RJ-45)

    USB

    4 x USB 3.0

    显示

    1 x VGA
    1 x DP++

    内部输入/输出

    串行端口

    1 x RS-232/422/485 (2.0mm pitch)

    USB

    2 x USB 2.0 (2.0mm pitch)

    显示

    1 x LVDS LCD Panel Connector
    1 x LCD/Inverter Power

    音效

    1 x Audio (Line-out/Mic-in)

    SATA

    1 x SATA 3.0 (up to 6Gb/s)
    1 x SATA Power

    DIO

    1 x 8-bit DIO

    SMBus

    1 x SMBus

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    fTPM 2.0

    电源

    类型

    Wide Range 9~36VDC

    端口

    Right Angle Connector (4-pin)
    DC Jack (available upon request)
    Vertical Type Connector (4-pin) (available upon request)

    耗能

    Idle: i7-7600U: 12V @ 0.43A (5.16W)
    Max: i7-7600U: 12V @ 3.16A (37.92W)

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    微软

    Windows 10 IoT Enterprise 64-bit

    Linux

    Linux

    环境指标

    温度

    Operating: 0 to 60°C (Opt. -20 to 70°C)
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    606, 151 hrs @ 25°C; 394, 265 @ 45°C; 267, 894 @ 60°C

    机械结构

    尺寸

    3.5" SBC Form Factor
    146mm (5.75") x 102mm (4.02")

    高度

    PCB: 1.6mm
    Top Side: 16.3mm
    Bottom Side: 4.0 mm

    安规认证

    认证

    CE, FCC, RoHS
