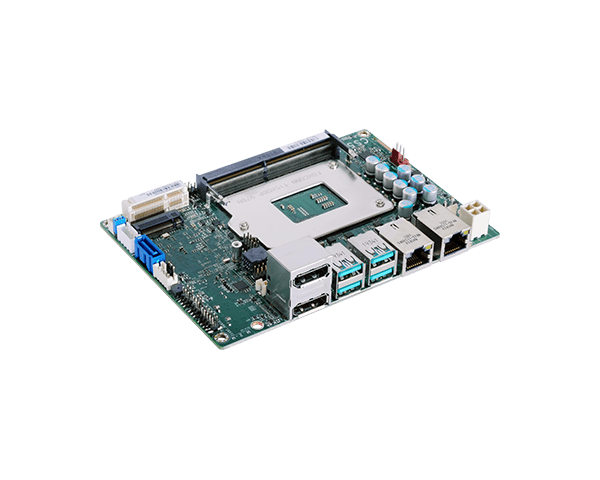

3.5寸工业主板-EBC-3508

★9th/8th Gen Intel® Core™ with Intel® C246
★1 DDR4 SODIMM up to 32GB
★Three independent displays: LVDS + DP++ + DP++
★DP++ resolution up to 4096x2304 @ 60Hz
★Multiple expansion: 1 M.2 M Key, 1 Mini PCIe
★Rich I/O: 2 Intel GbE, 4 USB 3.1, 2 USB 2.0
★15-Year CPU Life Cycle Support Until Q1' 35 (Based on Intel IOTG Roadmap)
ꄴ上一个： 3.5寸工业主板-EBC-3509
ꄲ下一个： 3.5寸工业主板-EBC-3507

  • 系统



    处理器

    8th Gen Intel® Core™ Processors, LGA 1151 Socket
    Intel® Core™ i7-8700T Processor (6C/12T; Max speed 4.0 GHz; TDP 35W)
    Intel® Core™ i5-8500T Processor (6C/6T; Max speed 3.5GHz; TDP 35W)
    Intel® Core™ i3-8100T Processor (4C/4T; Max speed 3.1GHz; TDP 35W)
    Intel® Pentium® G5400T Processor (2C/4T; Max speed 3.1GHz; TDP 35W)
    Intel® Celeron® G4900T Processor (2C/2T; Max speed 2.9GHz; TDP 35W)
    9th Gen Intel® Core™ Processors, LGA 1151 Socket
    Intel® Core™ i7-9700TE Processor (8C/8T; Max speed 3.6GHz; TDP 35W)
    Intel® Core™ i5-9500TE Processor (6C/6T; Max speed 3.6GHz; TDP 35W)
    Intel® Core™ i3-9100TE Processor (4C/4T; Max speed 3.2GHz; TDP 35W)

    内存

    One 260-pin SODIMM up to 32GB
    Single Channel DDR4 2666MHz
    C246 with ECC Support: Intel® Core i3-8100T/9100TE/Pentium G5400T/Pentium G4900T

    BIOS

    Insyde SPI 128Mbit

    显示

    控制器

    Intel® UHD 630 Graphics GT Series

    特性

    OpenGL 4.6, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2 (H.262), VC1, JPEG/MJPEG, HEVC/H.265, VP8, VP9, VP10
    HW Encode: AVC/H.264, MPEG2 (H.262), JPEG/MJPEG, HEVC/H.265, VP8, VP9

    显示器

    1 x LVDS
    2 x DP++
    LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz
    DP++: resolution up to 4096x2304

    三重显示

    LVDS + DP++ + DP++

    扩充

    界面

    1 x Full-size Mini PCIe (PCIe x1 up to Gen3/USB 2.0) (C246/Q370 opt.: USB 3.1 Gen1/USB 2.0)
    1 x M.2 2280 M key (C246/Q370: NVMe PCIe x4/SATA 3.0 or H310: NVMe PCIe x1, SATA 3.0)
    1 x SIM slot (optional for 3G/4G module)

    音讯

    音讯编译码器

    Realtek ALC262

    以太网路

    控制器

    Intel® I211AT PCIe (10/100/1000Mbps) or Intel® I210IT PCIe (10/100/1000Mbps)

    背板输入/输出

    以太网络

    2 x GbE (RJ-45)

    USB

    4 x USB 3.1 Gen2 (C246/Q370) or Gen1 (H310)

    显示

    2 x DP++

    内部输入/输出

    串行端口

    1 x RS-232/422/485 (2.0mm pitch)

    USB

    2 x USB 2.0 (2.0mm pitch)

    显示

    1 x LVDS LCD Panel Connector
    1 x LVDS Backlight

    音效

    1 x Audio (Line-out/Mic-in)

    SATA

    1 x SATA 3.0 (up to 6Gb/s)
    1 x SATA Power

    DIO

    1 x 8-bit DIO

    SMBus

    1 x SMBus

    加热器

    1 x 12V header (wide temp. only)

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    fTPM 2.0

    电源

    类型

    12VDC

    端口

    Vertical Type Connector (4-pin) (default)
    DC Jack (available upon request)

    耗能

    Typical: i7-8700T: 12V @ 0.86A (10.32Watt)
    Max: i7-8700T: 12V @ 5.38A (64.56Watt)

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    微软

    Windows 10 IoT Enterprise 64-bit RS5

    Linux

    Linux

    环境指标

    温度

    Operating:
    -5 to 65°C for 35W/100C CPU (fanless); 35W 100C, 82C CPU (fan)
    -30 to 80°C for 15W TDP down/100C CPU (fanless); 35W/100C CPU (fan)
    *Note: A heater/polyfilm is recommended for motherboard warm up at -30°C.
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    CS551-H310-BCA: 740,203 hrs @ 25°C; 462,070 hrs @ 45°C; 305,215 hrs @ 60°C; 227,949 hrs @ 70°C
    CS551-H310-ECA: 742,388 hrs @ 25°C; 464,078 hrs @ 45°C; 3067,73 hrs @ 60°C; 229,188 hrs @ 70°C
    Calculation Model: Telcordia Issue 4
    Environment: GB, GC - Ground Benign, Controlled

    机械结构

    尺寸

    3.5" SBC Form Factor
    146mm (5.75") x 102mm (4.02")

    高度

    PCB: 1.6mm
    Top Side: 25.27mm, Bottom Side: 7.68 mm
