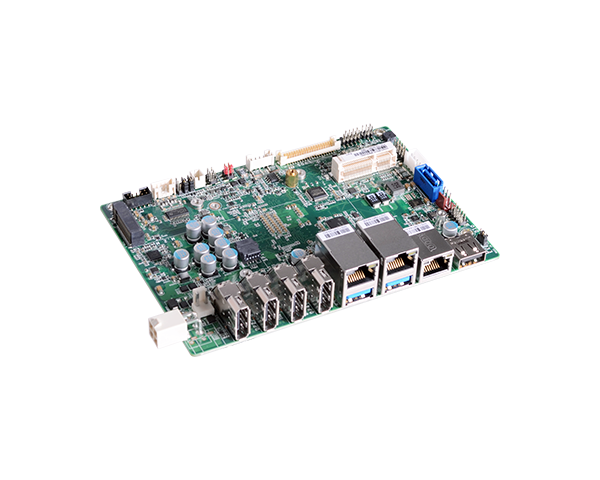

3.5寸工业主板-EBC-3507

★AMD® Ryzen™ V1000/R2000/R1000 Series
★1 DDR4 2400MHz SODIMM up to 16GB
★Multiple displays: max. 4 DP++/3 DP++ + LVDS
★Multiple Expansion: 1 M.2 M Key, 1 Mini PCIe
★Rich I/O: 3 GbE, 2 USB 3.1 Gen2, 1 USB 2.0
★10-Year CPU Life Cycle Support Until Q1' 31 (Based on AMD Roadmap)
ꄴ上一个： 3.5寸工业主板-EBC-3508
ꄲ下一个： 3.5寸工业主板-EBC-3506

  • 系统



    处理器

    AMD® Ryzen™ Embedded V1605B, 4C/8T, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 15W
    AMD® Ryzen™ Embedded V1202B, 2C/4T, 1MB Cache, 3 CU, 2.3 GHz (3.2GHz), 15W
    AMD® Ryzen™ Embedded V1404I, 4C/8T, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 15W
    AMD® Ryzen™ Embedded R1606G, 2C/4T, 3 CU, 2.6GHz (3.5GHz), 15W
    AMD® Ryzen™ Embedded R1505G, 2C/4T, 3 CU, 2.4GHz(3.3GHz), 15W

    AMD® Ryzen™ Embedded R2514, 4C/8T, 8 CU, 2.1GHz (3.7GHz)
    AMD® Ryzen™ Embedded R2314, 4C/4T, 6 CU, 2.1GHz (3.5GHz)
    AMD® Ryzen™ Embedded R2312, 2C/4T, 3 CU, 2.7GHz (3.5GHz)

    内存

    1 x 260-pin SODIMM up to 16GB
    Single Channel DDR4 up to 2400MHz (ECC/non ECC support)

    BIOS

    AMI SPI 64Mbit

    显示

    控制器

    AMD® Radeon™ Vega Graphics

    特性

    OpenGL 4.5, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

    显示器

    V1000/R2514/R2314

    4 x DP++ (1 x LVDS opt.)

    R2312/R1000

    3 x DP++(1 x LVDS opt.)

    DP++: resolution up to 4096x2160 @ 60Hz

    LVDS: resolution up to 1920x1200 @ 60Hz

    四重显示

    V1000/R2514/R2314

    4 DP++ (1 x LVDS opt.)

    R2312/R1000

    3 DP++(1 x LVDS opt.)

    扩充

    界面

    1 x Full-size mini-PCIe (PCIe/USB 2.0, opt.: USB 3.1 Gen 1)
    1 x M.2 2280/2242 M key (Support SATA/PCIe SSD)
    1 x Nano SIM slot (opt.)

    音讯

    音讯编译码器

    Realtek ALC888S

    以太网路

    控制器

    3 x Realtek® RTL8111HN/RTL8119I (10/100/1000Mbps)

    背板输入/输出

    以太网络

    3 x GbE (RJ-45)

    USB

    2 x USB 3.1 Gen2
    1 x USB 2.0

    显示

    V1000/R2514/R2314

    4 x DP++

    R2312/R1000

    3 x DP++

    内部输入/输出

    串行端口

    1 x RS-232/422/485 (2.0mm pitch)
    RS485 support auto flow control

    USB

    1 x USB 2.0 (2.0mm pitch)

    显示

    1 x LVDS LCD Panel Connector
    1 x Backlight Power

    音效

    1 x Mic-in
    1 x Line-out
    1 x Speaker-out (2 x 3W, 8ohm)

    SATA

    1 x SATA 3.0 (up to 6Gb/s)
    1 x SATA Power

    DIO

    1 x 8-bit DIO

    SMBus

    1 x SMBus

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    fTPM2.0 (default)
    dTPM2.0 (opt.)

    电源

    类型

    Single 12V DC

    端口

    4-pin Right Angle Type Connector (default)
    DC Jack (available upon request)
    4-pin Vertical Type Connector (available upon request)

    耗能

    Typical: V1605B:12V @ 1.35A (16.2Watt)
    Max.: V1605B:12V @ 2.37A (28.44Watt)

    RTC 电池

    CR2032 coin cell

    环境指标

    温度

    Operating: -5 to 65°C, -30 to 80°C
    Storage: -40 to 85°C

    湿度

    Operating: 10 to 90% RH
    Storage: 10 to 90% RH

    MTBF

    R1505: 612,770 hrs @ 25°C; 392,061 hrs @ 45°C ; 229,134 hrs @ 65°C
    V1605: 622,707 hrs @ 25°C; 408,558 hrs @ 45°C ; 246,634 hrs @ 65°C
    Calculation Model: Telcordia Issue 4
    Environment: GB, GC - Ground Benign, Controlled

    机械结构

    尺寸

    3.5" SBC Form Factor
    146mm (5.75") x 102mm (4.02")

    高度

    PCB: 1.6mm
    Top Side: 15.5mm, Bottom Side: 4.0mm
